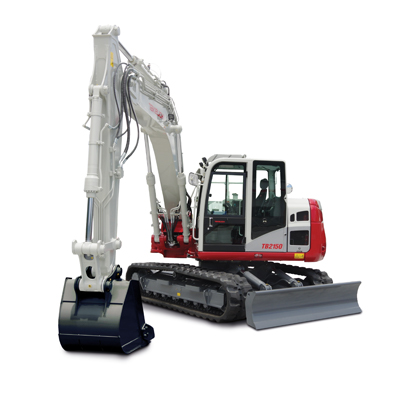

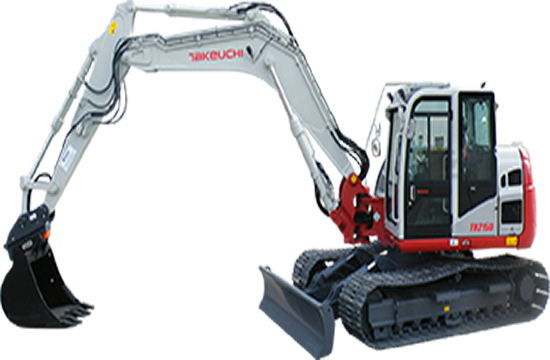

TB2150 Compact Excavator | 15.8 Tonne
The TB2150 is the largest and most powerful excavator in the Takeuchi line. Packed full of unique features offered as standard the TB2150 is a unique high-spec 15.8-tonne excavator. It comes complete with multiple auxiliary circuits that make the TB2150 an impressive attachment platform.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab ( ROPS / TOPS / OPG) |
| Wrap Around Counterweight |
| Large Interactive 7" Multi-Information Colour Display |
| Wide-Angle Colour Rear-View Camera with Auto-reverse Activation Displays Split Screen |
| Fully Adjustable Deluxe Heated HighBack Air Suspension Seat |
| Adjustable Arm Rests and Heated Drinks Holder |
| Radio - MW/ FM/MP3 Radio/Aux-in/USB/Bluetooth |
| Digital Air Con with Climate Control System |
| Multi Vent Heater / De-mister |
| Gas Lift-Assist Retractable Front Window, Removable Lower Front Window In-Cab Storage |
| Maximum Visibility One-Piece Bonded Blind-side Glass |
| Large Cab Entry Door with 50-50 Sliding Window |
| Cab Mirror - 5 Blindspot Mirrors |

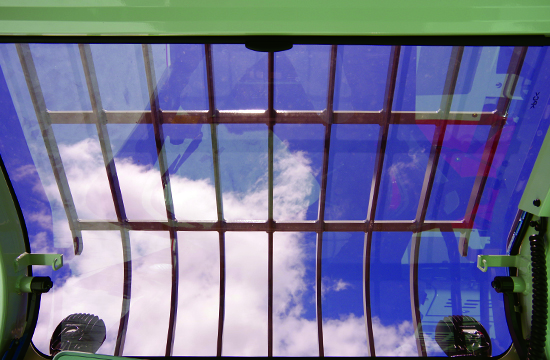

| Roof Guard and Steel Rain Guard |
| Front Window Safety Guard (optional) |
| Service Access Steps with Handrail |
| Large Fully Supporting Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Engine Shut-down Switch |
| 24 Volt System / Twin Batteries |
| 3x In-Cab Power Sockets 12V/24V/USB |
| Switched Roof Beacon Power Socket - 24V |
| Front of Cab External Power Socket - 24V |
| 5 x hi-visablility LED workzone lighting - Cab, Boom and Side Cover |
| Rear LED Site Visibility Lighting |
| Travel Alarm & Horn |
| TFM (Takeuchi Fleet Management) |
| TSS (Takeuchi Security System Immobilizer) |
| ENGINE |
| Stage V Ready - Low Emissions - SCR - DPF - AdBlue |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator |
| AdBlue Tank with Audible Refill Level Alarm |
| Dial Throttle Control with Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Electric Refuelling Pump with Extended Length |
| Service Interval - 500 hours |
| HYDRAULICS |
| Hydraulic Pilot Controls with Dual Pilot Accumulators |
| Cushioned Dual Boom Cylinder, Cushioned Arm and Swing Cylinders |
| Dual Boom and Single Arm Holding Check Valves |
| Automatic Slew Brake |
| Lift Overload Alarm |
| Auxiliary Flows and Pressure Adjustable from Control Panel |
| Multiple Attachment Presets / Password Protected Aux Settings |
| Switched 1/2-Way Aux Flow |
| 1,2,3 Aux Standard, 3rd Aux Pre-piped with Hitch Pipework, 4th Aux Optional |
| Proportional Auxiliary Controls with Detent |
| Primary Auxiliary Circuit with Auto Tank and Pressure Release |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Large Hydraulic Reservoir with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Steel Tracks Standard - 700mm |
| Rubber Tracks Optional |
| Heavy Duty Dozer Blade with Float |
| Twin Heavy Duty Dozer Cylinders |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Automatic Load Sensing 2 Speed Travel |
| Triple Flanged Sealed Bearing Track Rollers and Two Top Carrier Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Safe Anti-Slip Boarding Steps - Carriage Mounted |
| Lower Carriage and Blade Tie Down Points |
Specifications
| ENGINE | |
|---|---|
| Make | DEUTZ |
| Model | TCD3 6L4 |
| Rated Output (kW)/RPM | 85/2000 |
| Maximum Torque (Nm) | 460 |
| Cylinders | 4 |
| Displacement (cc) | 3621 |
| Electrical System | 24 volt |
| DIMENSIONS & WEIGHT | |
| Machine weight (fuel/hitch/bkt) (kg) | 15860 |
| Length (Transporting) (mm) | 7775 |
| Width (mm) | 2690 |
| Height (mm) | 2950 |
| Ground Clearance (mm) | 445 |
| Dozer Blade (W x H) (mm) | 2690 x 550 |
| SWING SYSTEM | |
| Min Radius / Max Front Offset (mm) | 2965/2360 |
| Slew Radius (mm) | 2000 |
| HYDRAULIC SYSTEM | |
| 1st Aux Max Flow (l/min) | 224 |
| 1st Aux Max Pressure (bar) Variable | 270 |
| 2nd Aux Max Flow (l/min) | 55 |
| 2nd Aux Flow Pressure (bar) Variable | 230 |
| Standard Aux | 1st 2nd & 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Boom Swing Angle (L/R) | 77°/53° |
| Slew Speed (rpm) | 10.8 |
| Slew Motor | Piston |
| Slew Brake | Disc |
| UNDERCARRIAGE | |
| Traction Motor | Variable Displacement |
| Traction Drive | Epicyclic Gearing |
| Traction Brake | Disc |
| Track Width (mm) | 700 |
| Ground Contact Length (mm) | 2875 |
| Ground Pressure (kpa) | 47.7 |
| Travel Speed (K/ph) | 3.1 / 5.5 |
| Maximum Gradeability | 35° |
| CAPACITIES | |
| Hydraulic System (l) | 234 |
| Fuel Tank (l) | 278 |
| Engine Lubrication (l) | 10 |
| Cooling System (l) | 27 |
| HEALTH & SAFETY | |
| Noise Level Sound Power Level (LwA) | 98 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB802-S |
| Hitch | |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 5225 |
| Max Dump Height (mm) | 6040 |
| Max Reach at Ground Level (mm) | 8320 |
| Max Vertical Digging Depth (mm) | 4395 |
| Max Bucket Digging Force (kN) | 96.3 |
| Max Arm Digging Force (kN) | 59.8 |
| Travel Speed (km/h) | 3.1 / 5.5 |
| DIMENSIONS & WEIGHT | |
| Machine weight (fuel/hitch/bkt) (kg) | 15860 |
| Length (Transporting) (mm) | 7775 |
| Width (mm) | 2690 |
| Height (mm) | 2950 |
| Ground Clearance (mm) | 445 |
| Dozer Blade (W x H) (mm) | 2690 x 550 |
| Min Radius / Max Front Offset (mm) | 2965/2360 |
| Slew Radius (mm) | 2000 |
| Boom Swing Angle (L/R) | 77°/53° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…

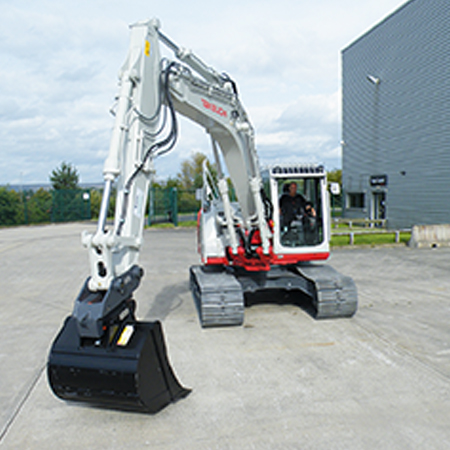

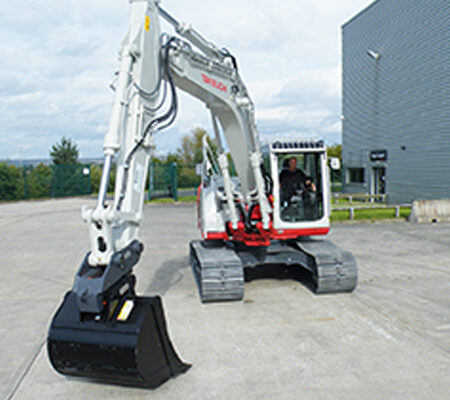

Offset Flexibility

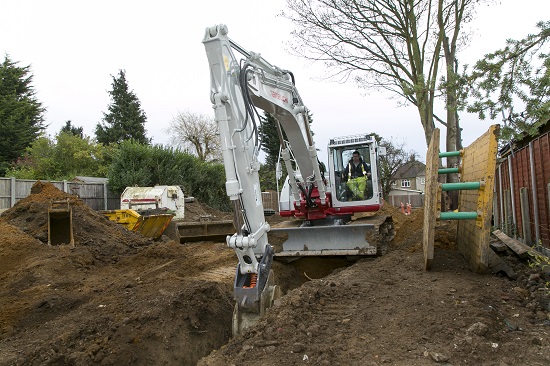

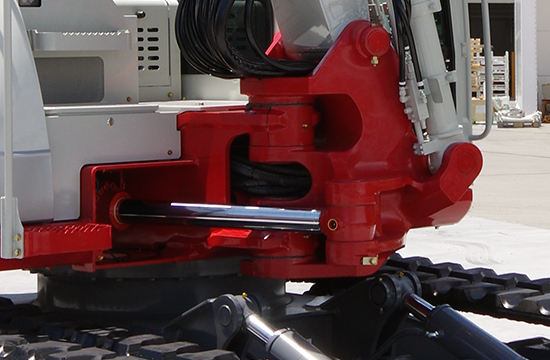

The TB2150 has a front pivot king-POST, unique for a 15-tonne excavator. Gives greater manoeuvrability compared to conventional fixed boom excavators, offering increased site versatility in restricted areas.
Maximum Operating Parameters – Long reach at ground level to 8320 mm and digging depth to 5225 mm.
Automatic Step-Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode
Massive Breakout Force
The TB2150 features massive breakout force essential for 15-tonne excavating, 98.7kN bucket breakout force and 85 kW of engine power.

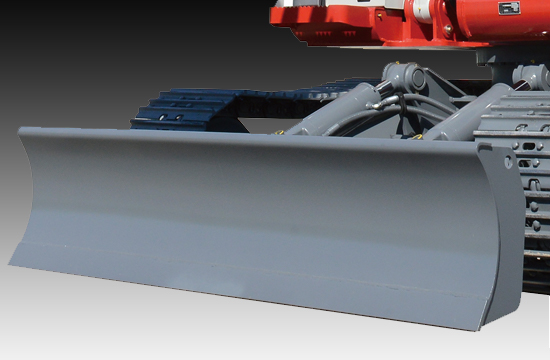

Heavy Duty Blade with Float
Strong, purpose built robust undercarriage and dozing blade, with dual cylinders and switched blade float functionality.
Ground level steel braided protected hoses robust for tough terrain.
Turbo Power Performance
85kW Deutz, Stage V turbo engine with AdBlue for low emission zones, with increased horsepower and greater torque for improved performance. Easy switch to Eco-mode combined with auto-idle and dial throttle control for reduced emissions and fuel saving economy.
Attachment Versatility
1,2,3 Auxiliary as standard, 3rd Auxiliary pre-piped for hitch, 4th Auxiliary optional. Proportional control on both 1st and 2nd circuits.

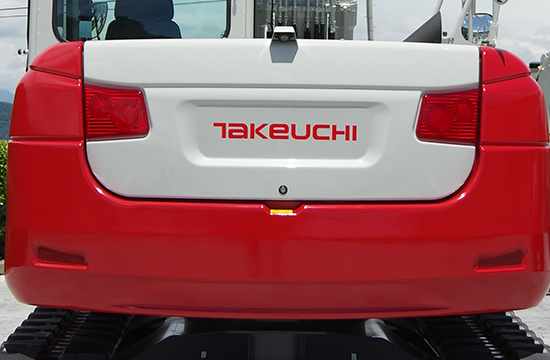

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.
All Steel Construction
The engine hood, side covers and access panels are all hinged, lockable and 100% steel. With an overall compact design, flush panels and rounded corners, the TB2150 minimises potential machine damage.
Safe Site Operating
LED workzone lighting, travel alarm, multiple blindspot mirrors and auto activating wide-angle rear-view camera are featured as standard.

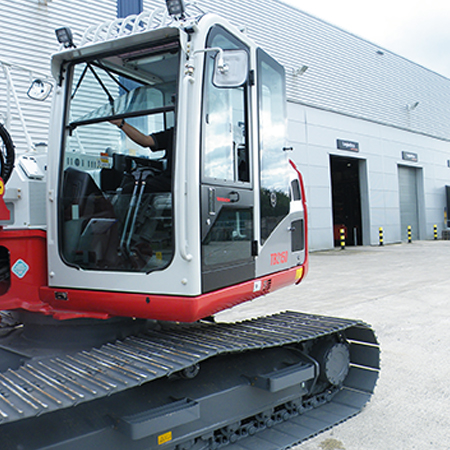

Triple Flange Track Rollers
Provide increased roller to rail contact improving track retention and providing smooth travel.
Maximum Lifting Power
Powerful dual boom cylinders with twin boom and single arm holding check valves along with a crane switch and audible lift overload alarm.
Optimum Performance
Large varying speed hydraulic cooling fan with independent supply pump combines with a large radiator, hydraulic oil and fuel cooler to ensure stable cooling performance.
All Day Comfort
All-round adjustable deluxe high back heated air suspension seat with retractable seat belt. Along with stereo radio with MP3, Bluetooth and USB socket and a heated cup holder.

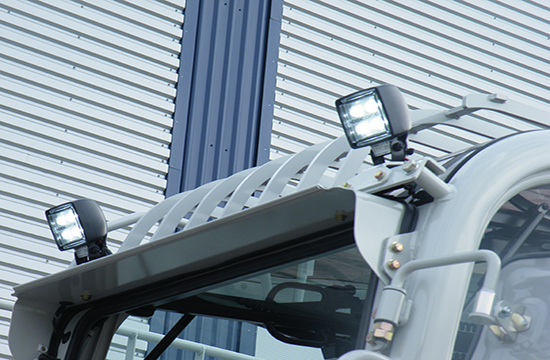

Maximum All-round Visibility
Five forward facing wide-beam style LED lights offer enhanced visibility in low light conditions. Large panoramic windows with roof glass and sunshade. Auto activation wide angled full colour camera.

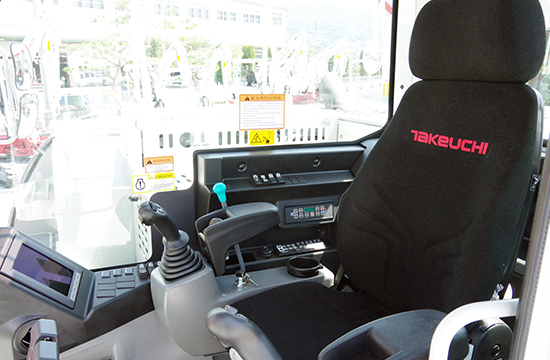

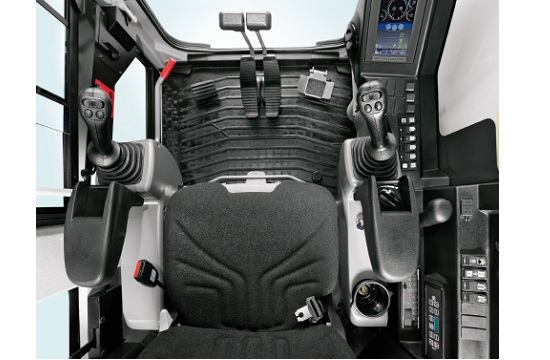

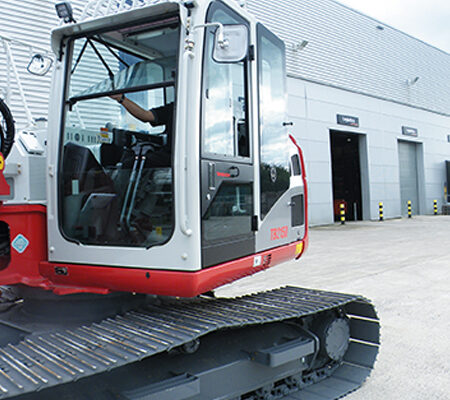

Operator’s Station
A large well equipped comfortable interior with adequate storage room. Ergonomic controls, a large colour multi-informational display and automatic digital climate control for comfortable all day operating.
Smooth Operation
Pilot controls combine with cushioned boom, arm and swing cylinders help reduce shock and vibration and add to smoother operation.
Stay in Your Seat Controls
Auxiliary hydraulic flow and pressure adjustable from the operator’s seat, combined with auto-detent and auto-tank. Two-way auxiliary hydraulics with isolation valves.

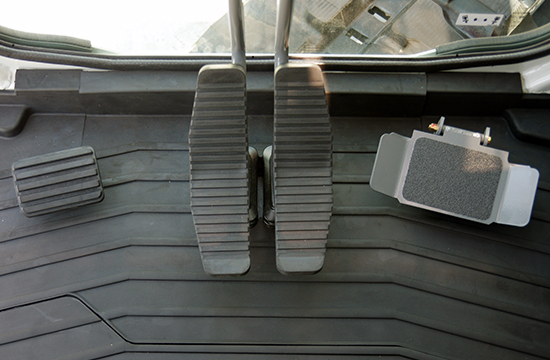

Large Travel Pedals
Fully support the operator’s feet for greater comfort and control while travelling. Additionally pedals are raised off-floor to reduce build-up of dirt and debris.

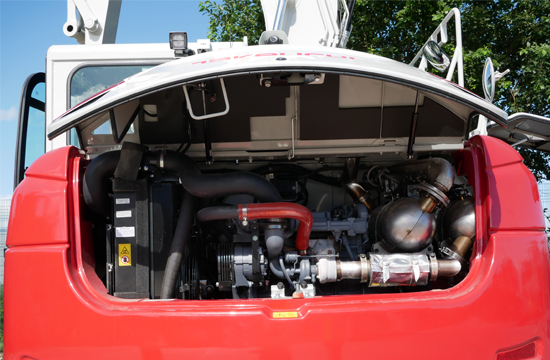

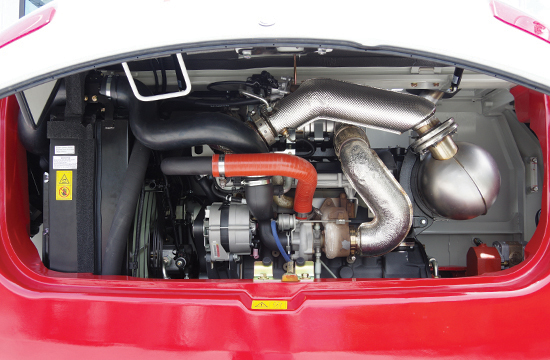

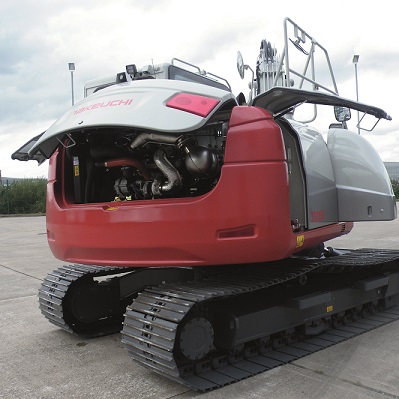

Rear Engine Access
Convenient access for daily checks and routine maintenance; the central cluster of key service points delivers faster servicing and less downtime.
500 hour service intervals
Stage V Ready
Exhaust after-treatment system with selective catalytic reduction (SCR) with diesel exhaust fluid (DEF/AdBlue) to meet to latest Stage V regulations.

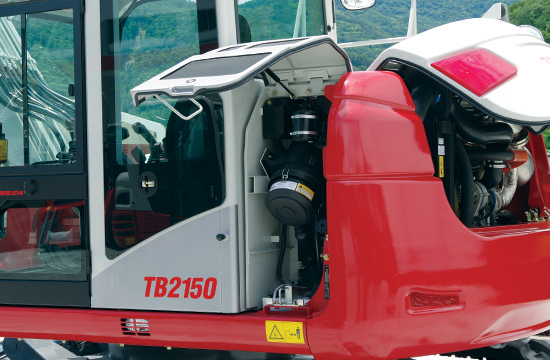

Left Side Access Cover Provides excellent access to the dual element air cleaner radiator and coolers, also ground level access to the batteries.
Right Rear Access Panel
Allows access to the pilot line filter and pump group.

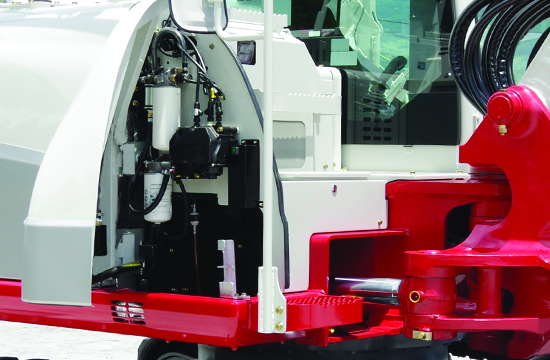

Front Right Access Panel – Provides access to the primary and secondary fuel filters, water separator, DEF fluid pump, and large storage area for tools, and direct access to the electric re-fuelling pump and hose.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.

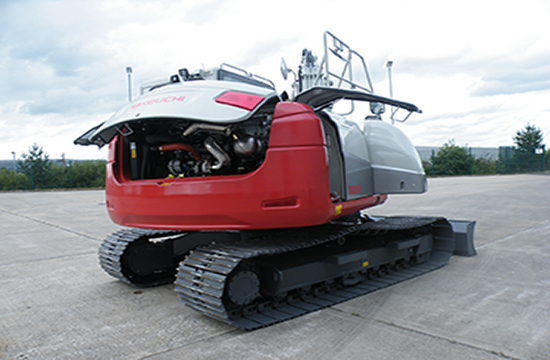

Maximum Service Access
Access via anti-slip safe-steps and hand rails to the top deck – hydraulic tank, radiator coolant and locking fuel fill.
