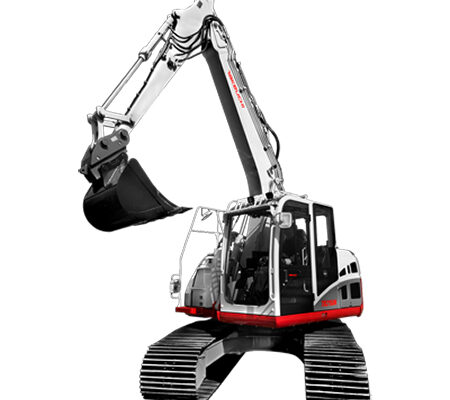

TB2150R Excavator | 15.6-16.2 Tonne
The New TB2150R is the largest excavator in the Takeuchi line-up. It features a fixed conventional boom combined with reduced tail swing, with 85kW of power performance . Regarded as a high specification machine with plenty of value-added features, owner operators really appreciate the power, performance and reliability of the TB2150R.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab ( ROPS / TOPS/ OPG) |
| Wrap Around Counterweight |
| Large Interactive 7" Multi-Information Colour Display |
| Rear and Blind-side Wide-angle Colour Cameras with Auto-reverse Activation Display Split Screen |
| Fully Adjustable Deluxe HighBack Heated Air Suspension Seat |
| Adjustable Arm Rests & Heated Drinks Holder |
| Air Con with Climate Control System |
| Digital Radio - AM/FM/MP3 Radio/Aux-in/USB/Bluetooth with Stereo Speakers |
| Multi Vent Heater / De-mister |
| Gas Lift-Assist Retractable Front Window, Removable Lower Front Window In-Cab Storage, Twin Sliding (50-50) Door Glass |
| Front Window Guard (optional) |
| Cab Mirror - 5 Blindspot Mirrors |
| Roof Guard and Steel Rain Guard |
| Anti-slip Service Access Steps with Handrail |
| Large Fully Supporting Foot Travel Pedals |
| Dual Foot Rests |
| ELECTRICAL |
| Sealed Rocker Switches |
| Engine Shut-down Switch |
| 24 Volt System / Twin Batteries |
| 3x In-Cab Power Sockets 12V/24V/USB |
| Front of Cab External Power Socket - 24V |
| Switched Roof Beacon Power Socket - 24V |
| 6 x Hi-Visibility LED Workzone Lighting 2 x Cab Roof, 2x Boom, 1x Side Cover and 1x Cab Rood Rear |
| Travel Alarm & Horn |
| TFM (Takeuchi Fleet Management) |
| TSS (Takeuchi Security System Immobilizer) |
| ENGINE |
| Stage V Ready - Low Emissions - SCR - DPF - AdBlue |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Steel Lockable Fuel Filler Cap |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator |
| AdBlue Tank with Audible Refill Level Alarm |
| Dial Throttle Control with Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Electric Refuelling Pump with Extended Length Suction Hose |
| Service Interval - 500 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Dual Boom Cylinders, Cushioned Arm Cylinder |
| Dual Boom and Single Arm Cylinder Holding Check Valves |
| Automatic Slew Brake |
| Lift Overload Alarm |
| Auxiliary Flows and Pressure Adjustable from Control Panel |
| Multiple Attachment Presets / Password Protected Aux Settings |
| 1,2,3 Aux Standard, 3rd Aux Pre-piped with Hitch Pipework, 4th Aux Optional |
| Proportional Auxiliary Controls with Detent |
| Primary Auxiliary Circuit with Auto Tank and Pressure Release |
| Switched 1/2-Way Aux Flow |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Large Hydraulic Reservoir with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Compact Tail Swing - (Exceeds only 35cm on 700mm steel track) |
| Steel Tracks 700mm Standard |
| Rubber Tracks Optional |
| Heavy Duty Dozer Blade |
| Twin Heavy Duty Dozer Cylinders |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Automatic Load Sensing 2 Speed Travel |
| Maintenance-free Triple Flanged Sealed Bearing Track Rollers and Dual Carrier Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Safe Anti-Slip Boarding Steps - Carriage Mounted |
| Lower Carriage and Blade Tie Down Points |
Specifications
| ENGINE | |
|---|---|
| Make | DEUTZ |
| Model | TCD3 6L4 |
| Rated Output (kW)/RPM | 85/2000 |
| Maximum Torque (Nm) | 460 |
| Cylinders | 4 |
| Displacement (cc) | 3621 |
| Electrical System | 24 volt 90 Amp |
| DIMENSIONS & WEIGHT | |
| Machine weight incl fuel/hitch/bkt Long (kg) | 15710 |
| Machine weight incl fuel/hitch/bkt 2-piece (kg) | 16270 |
| Length (Transporting) Long (mm) | 7405 |
| Length (Transporting) 2-piece (mm) | 7785 |
| Width (mm) | 2690 |
| Height (mm) Transporting (2-piece) | 3190 (2950) |
| Ground Clearance (mm) | 445 |
| Dozer Blade (W x H) (mm) | 2690 x 550 |
| Front Swing Radius Long / (2-piece) (mm) | 2610 (2590) |
| Slew Radius (mm) | 1700 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 340 |
| Pump Type | Variable Displacement |
| 1st Aux Max Flow (l/min) | 224 |
| 1st Aux Max Pressure (bar) Variable | 270 |
| 2nd Aux Max Flow (l/min) | 55 |
| 2nd Aux Flow Pressure (bar) Variable | 230 |
| Standard Aux | 1st 2nd & 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 11 |
| Slew Motor | Piston |
| Slew Brake | Disc |
| UNDERCARRIAGE | |
| Traction Motor | Variable Displacement |
| Traction Drive | Epicyclic Gearing |
| Traction Brake | Disc |
| Track Width (mm) | 700 |
| Ground Contact Length (mm) | 3045 |
| Ground Pressure (kpa) | 46.2 (48.1) |
| Maximum Gradeability | 35° |
| CAPACITIES | |
| Hydraulic System (l) | 235 |
| Fuel Tank (l) | 221 |
| Engine Lubrication (l) | 10 |
| Cooling System (l) | 27 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 99 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB802-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth Long Arm (mm) | 6060 |
| Max Digging Depth 2-Piece (mm) | 5750 |
| Max Dump Height Long Arm (mm) | 7140 |
| Max Dump Height 2-Piece (mm) | 7460 |
| Max Reach at Ground Level Long Arm (mm) | 8665 |
| Max Reach at Ground Level 2-Piece (mm) | 8730 |
| Max Vertical Digging Depth Long Arm (mm) | 5545 |
| Max Vertical Digging Depth (2-Piece) (mm) | 5160 |
| Max Bucket Digging Force (kN) | 96.3 |
| Max Arm Digging Force (kN) | 60 |
| Travel Speed (km/h) | 2.7 / 5.1 |
Lifting Diagram
TB2150R Compact Excavator Lifting Diagram – Mono – Long Arm
TB2150R Long arm chart with & without dozer blade 514800502~TB2150R Compact Excavator Lifting Diagram – Mono – 2-piece
TB2150R-2-Pc-Boom
TB2150R Compact Excavator Lifting Diagram
TB2150R Compact Excavator Lifting Diagram -Mono – Middle Arm
TB2150R cab amended 2022TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
Trust in Takeuchi for…

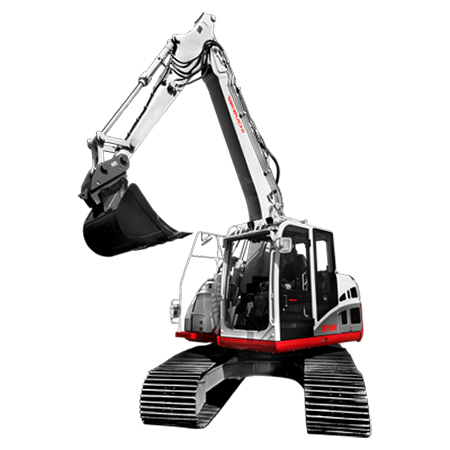

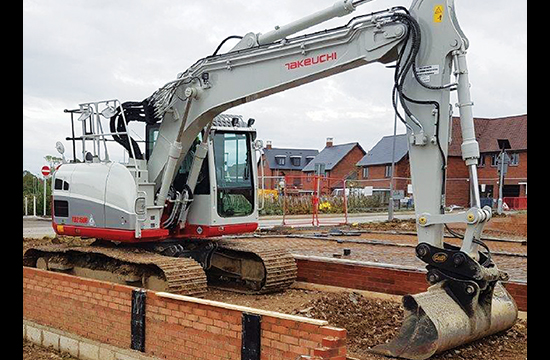

Compact 15 tonne
The TB2150R offers a compact track footprint of just 2690 x 3750mm with a short tail swing, it gets to work in spaces other conventional machines cannot access. With just a 350mm overhang the short tail gains maximum accessibility.
Maximum Power
The above average breakout force highlights the added power of the new TB2150R. Powered by a Deutz 85 kW engine, Stage V ready for low emissions zones complete with a DOC + SCR exhaust after treatment system.
Maximum Operating Parameters
Using a conventional fixed boom offers increased lifting capacity for the heaviest loads with fast cycle times. For a compact machine, the TB2150R offers massive dig depth 6060mm and dump height 7140mm
More Torque
Automatic step-down travel motors provide torque on demand when pushing, climbing, or turning in high speed mode.
With auto deceleration and eco working modes, the TB2150R saves fuel when not required.

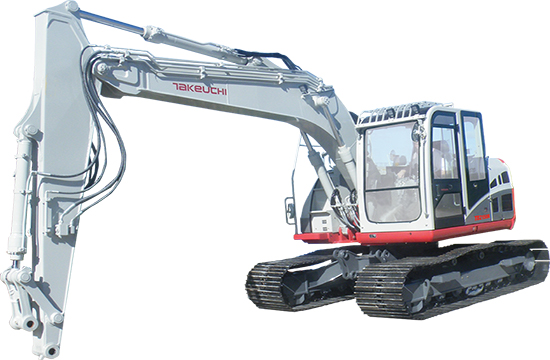

Boom Alternatives

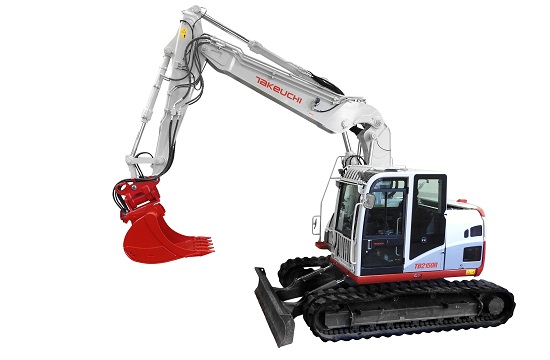

The TB2150R features a robust mono boom, available with a standard long arm 2850mm, along with a 2-piece boom option. With three auxiliary hydraulic circuits as standard.
Reduced Tail Swing
With a overhang of just 350mm on 700mm steels the TB2150R is a very compact 15-tonne excavator. It gets to work in the most confined spaces.

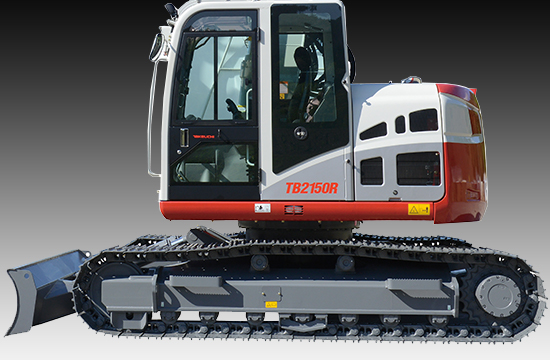

All Steel Construction

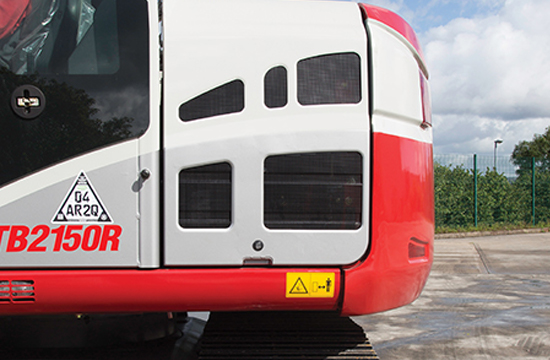

The TB2150R features a large one-piece wrap-around counterweight with lockable service access panels.

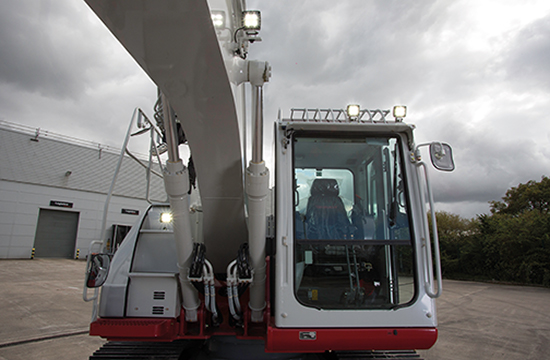

Conventional Fixed Boom
The fixed boom position to the right of the cab is compact enough for good all round visibility. Concealed boom hold check valves to reduce risk of potential site damage.

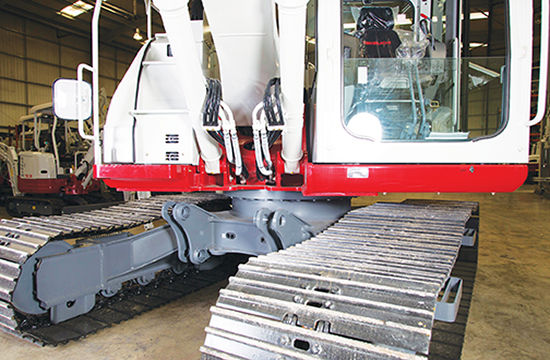

Robust Under Carriage
Designed with a longer and stronger under carriage for added stability.
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
Safe Cab Protection
Large roomy ROPS/TOPS/FOPS CAB minimises vibration and noise, with a heavy-duty roof guard and steel rain guard as standard.
Optimum Performance

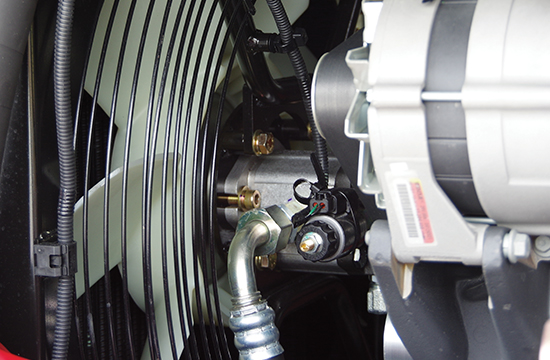

Large varying speed hydraulic cooling fan with independent supply pump combines with a large radiator, hydraulic oil and fuel cooler to ensure stable cooling performance.

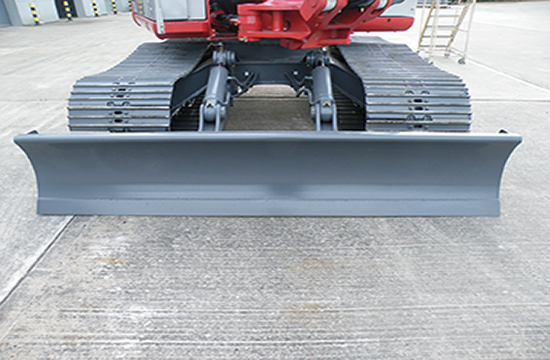

Optional Dozer
The TB2150R dozer blade is optional, major hydraulic components are ready installed, providing an easy retrofit option.
Smooth Operation – Pilot controls combine with cushioned boom and arm cylinders help reduce shock and vibration and add to smoother operation.
Operators enjoy the smooth operation and powerful digging force of a TB2150R.

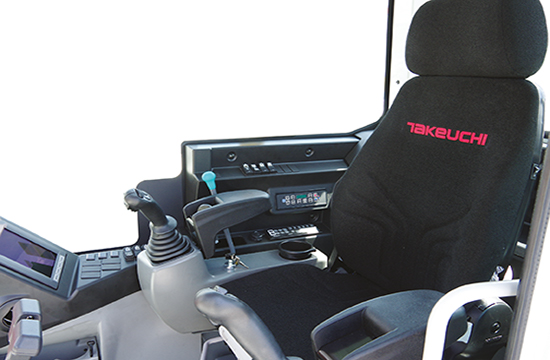

Operator Comfort

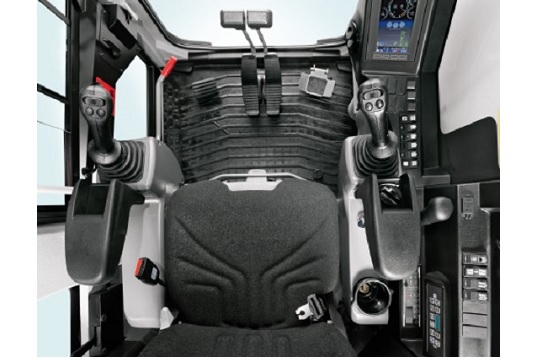

With a spacious stylish cab with climate control and a large heated adjustable air suspension seat, operators enjoy maximum all-day comfort.
Interior features include USB charging ports and stereo radio with MW/FM /Bluetooth and aux-in function.

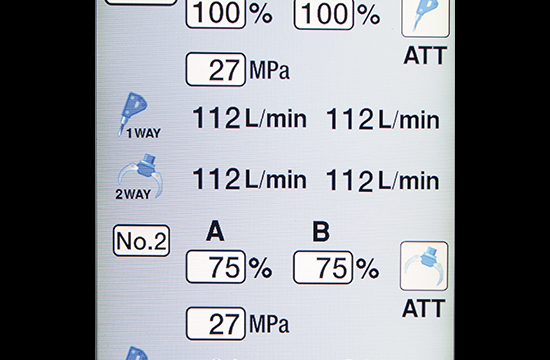

LCD Multi Information Display

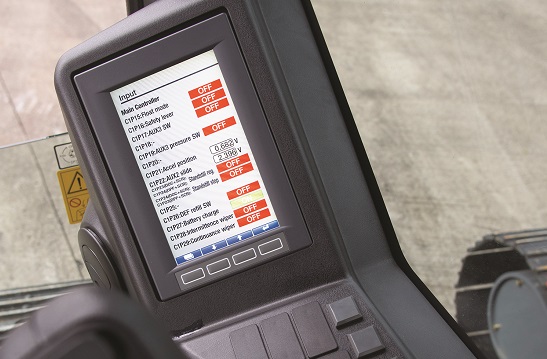

Full colour split screen display combines operating functions and full colour wide angle blind-side camera and additional auto activating reversing camera with site safe motion alarm fitted as standard
Smooth Precision Control
The TB2150R enjoys smooth precision hydraulics with excellent joystick functionality for operators.
Pilot operated joystick controls deliver precise responsive operation.
Stay in Your Seat Aux Set-up
Auxiliary Hydraulic flow and pressure can now be adjusted from the comfort of the operator’s seat, combined with auto-detent, auto-tank, Two-way auxiliary hydraulics with isolation valves.

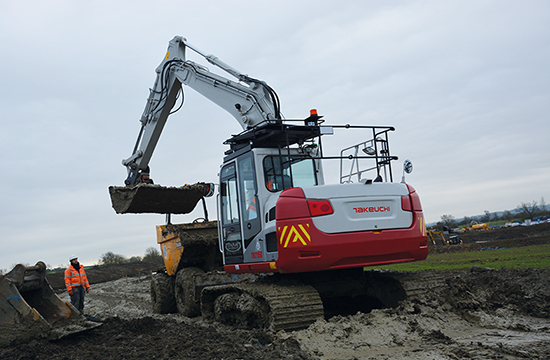

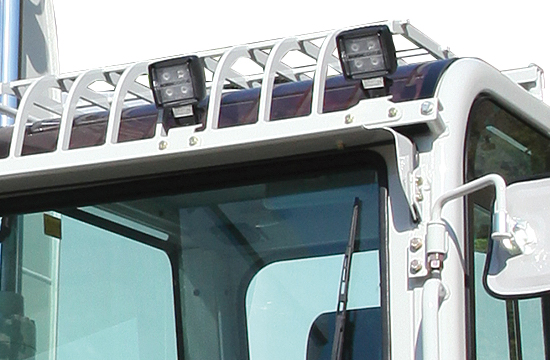

Safe Site Operating
LED workzone lighting, travel alarm, and multiple blindspot mirrors.
Dual wide-angle side and auto activating rear-view cameras are featured as standard.
Easy Serviceability
The TB2150R is designed for the easiest access to regular service points.
Steel lockable service panels for easier cleaning of the radiator and hydraulic oil coolers coolers. With dual air filters, dual fuel filtration and automatic fuel bleed system.
500 hour service intervals.
Ground Level Checkpoints

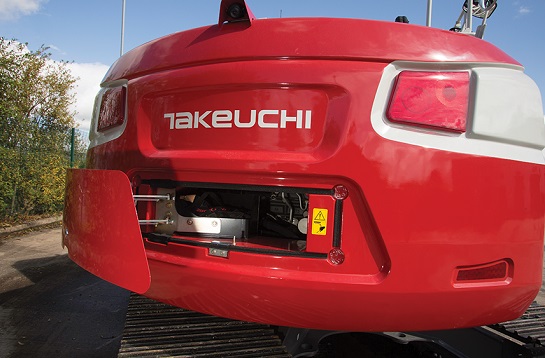

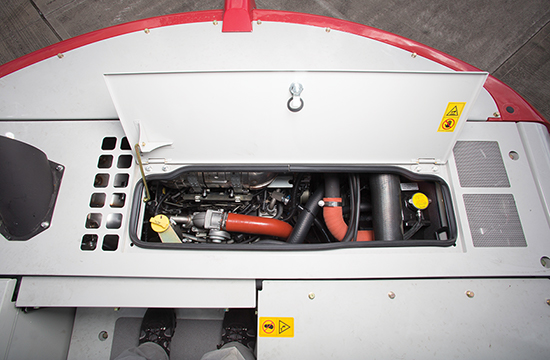

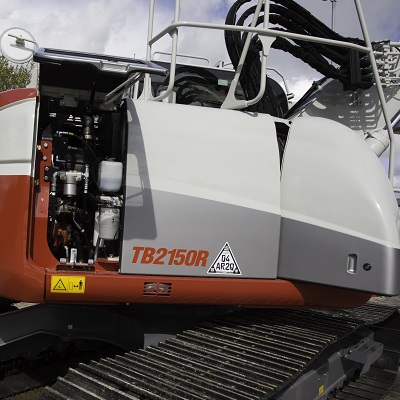

The stylish one piece counterweight incorporates lockable service door, access to engine oil, dipstick, filter and integrated toolbag storage.
Electric Refuel Pump

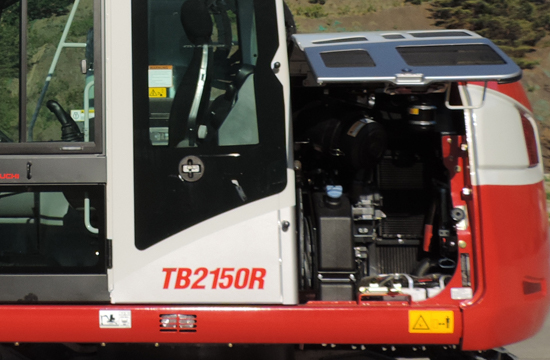

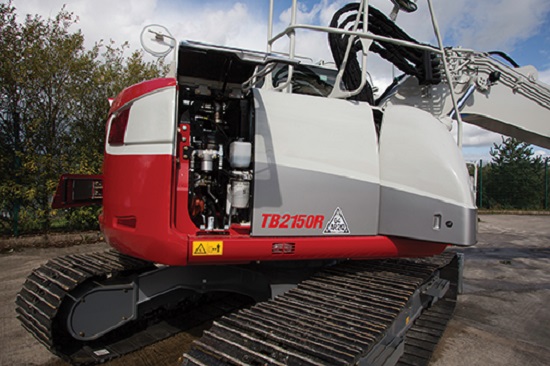

Left side cover provides excellent access to the AdBlue tank, dual element air cleaner, batteries and grease gun storage with dedicated compartment for electric refuelling pump with auto shut off.
Hydraulic Access

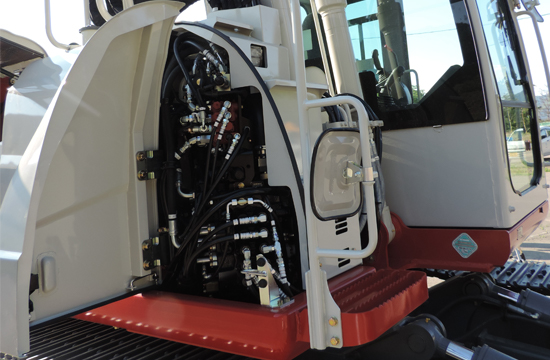

Front right access panel provides unrivalled ground level service access to the hydraulic valve chest. Right rear panel allows access to the fuel and pilot line filters and hydraulic pumps.
Safe Service Access
Well positioned grip-steps and handrails provide safe service access to top tier service points – oil fill, radiator, hydraulic oil tank and lockable fuel filler cap.

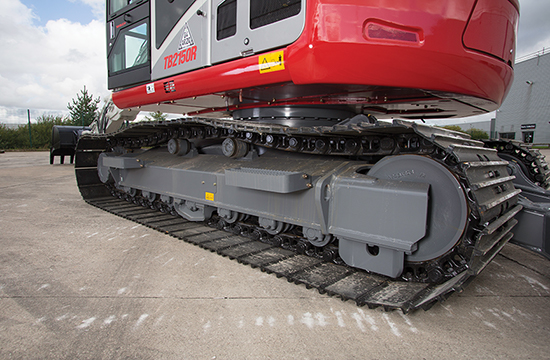

Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
