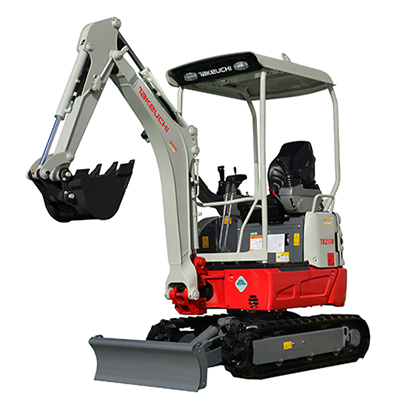

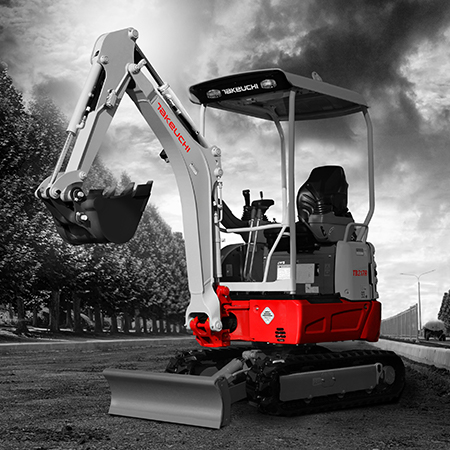

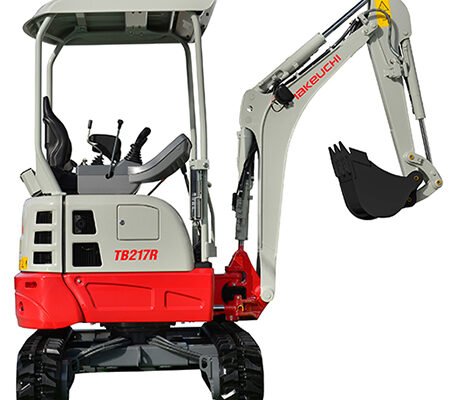

TB217R Compact Excavator | 1.7 Tonne

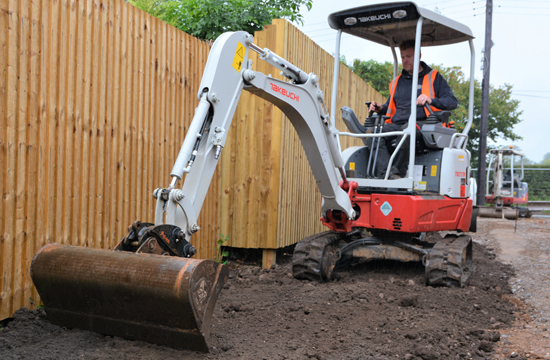

The TB217R short-tail compact mini excavator is a very compact mini digger ideal where working space is limited.
The TB217R compact excavator has short reduced tail swing with the upper structure canopy only exceeds the track footprint by centimetres, allowing operators to work and rotate right up to walls without potentially damaging the machine. It’s already a popular choice for utilities and hire.
Download the TB217R Excavator Brochure
Download the Full Takeuchi Range Brochure here
Product Details
Features
| OPERATOR STATION |
|---|
| Canopy (ROPS / TOPS / OPG) |
| Cast Iron Wrap Around Protective Counterweight |
| Steel Roof Canopy with Integrated Lifting Points |
| Multi Information Display |
| Multi Adjustable Seat and Adjustable Arm Rests |
| Lockable Storage for Tool Bag and Grease Gun |
| Key Locked Access Panels |
| Folding Foot Rests, Foot Controlled Offset & Auxiliary |
| ELECTRICAL |
| Sealed Rocker Switches |
| Power Socket - 12V |
| Visual Indicator for Engine Preheat, High Speed, Water Temp and Fuel Gauge |
| Function Keys - Hour / Trip Meter, Time and Alarm, and Contrast Adjustment |
| Travel Alarm / Horn |
| Boom & Roof Working Lights |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V <19kw engine - low emission |
| Engine Preheat |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filters |
| Centrally Located Service Check Points |
| Service Interval - 250 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Pilot Operated Joystick Controls |
| Variable Displacement Piston Pumps |
| Cushioned Boom and Swing Cylinders |
| Top Mount Boom Cylinder |
| Automatic Slew Brake |
| Well Protected Internally Routed Hydraulic Hoses |
| 1/2-Way Selector Valve Below the Operator Seat |
| Primary Auxiliary 1& 2-way Operation and Twin Isolation Valves |
| Steel Hydraulic Tank with Fluid Level Sight Gauge |
| UNDERCARRIAGE AND FRAME |
| Hydraulically Retractable Track Frame Width (980-1300mm) |
| Longer than Average Track Frame for Added Stability (1570mm) |
| Automatic Load Sensing 2-Speed Travel |
| Triple Flanged Track Rollers with Sealed Bearings |
| Easy Tension Grease Filled Track Adjusters |
| Adjustable Width Dozer Blade with Bolt-on Extensions |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV 70 |
| Rated Output (kW)/RPM | 11.5/2400 |
| Maximum Torque (Nm) | 52.6 |
| Cylinders | 3 |
| Displacement (cc) | 854 |
| Electrical System | 12 volt 48A |
| DIMENSIONS | |
| Operating Weight: Canopy (kg) | 1680 |
| Length (Transporting) Dozer at rear | 3460mm 3970mm |
| Width (mm) | 980 |
| Extended Tracks Max Width (mm) | 1300 |
| Height (mm) | 2345 |
| Dozer Blade (W x H) (mm) | 980-1300 x310 |
| Blade Range Up/Down (mm) | 310/460 |
| Ground Clearance (mm) | 205 |
| Min Front Radius of Machine (mm) | 1470 |
| Slew Radius (mm) | 730 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 210 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 33 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 10 |
| 2nd Aux Flow Pressure (bar) | 200 |
| Standard Aux | 1st |
| Optional Aux | 2nd & 3rd |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.2 |
| Slew Motor | Trachoid Gear |
| UNDERCARRIAGE | |
| Traction Motor | Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 230 |
| Ground Contact Length (mm) | 1205 |
| Ground Pressure (kpa) | 26.9 |
| Maximum Gradeability | 15° |
| CAPACITIES | |
| Hydraulic System (l) | 24 |
| Fuel Tank (l) | 22 |
| Engine Lubrication (l) | 2.8 |
| Cooling System (l) | 3.9 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker *(Suitable for limited usage) | TKB52-S TKB52* |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2390 |
| Max Dump Height (mm) | 2545 |
| Max Reach Ground Level (mm) | 3945 |
| Max Vert Dig Depth (mm) | 1970 |
| Max Bucket Digging Force (kN) | 14 |
| Max Arm Digging Force (kN) | 8.2 |
| Travel Speed (km/h) | 2.2 / 4.2 |
| DIMENSIONS & WEIGHT | |
| Operating Weight: Cab (kg) | 1680 |
| Length (Transporting) Dozer at rear (mm) | 3460/3970 |
| Width - Extended Tracks (mm) | 980-1300 |
| Height (mm) | 2345 |
| Ground Clearance (mm) | 205 |
| Dozer Blade (W x H) (mm) | 980-1300 x310 |
| Blade Range Up/Down (mm) | 310/460 |
| Rear Slew Radius (mm) | 730 |
| Bucket Offset (RH/LH) (mm) | 555 / 395 |
| Boom Swing Angle (L/R) | 70° / 50° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.

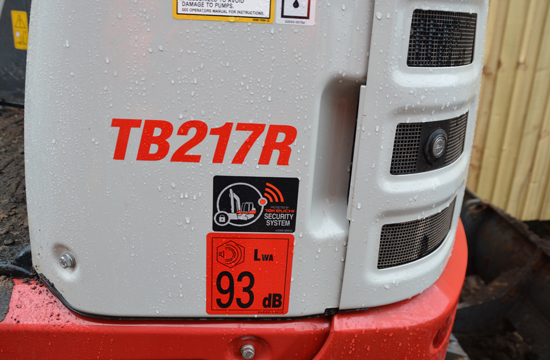

TSS - Takeuchi Security System
TSS Takeuchi security system is available as standard.
- Only programmed keys for start-up
- Includes 1 red master and 3 black user keys (can programme up to 13 user keys)
- Un-programmed keys alert operator via VDU and alarm
Trust in Takeuchi for…

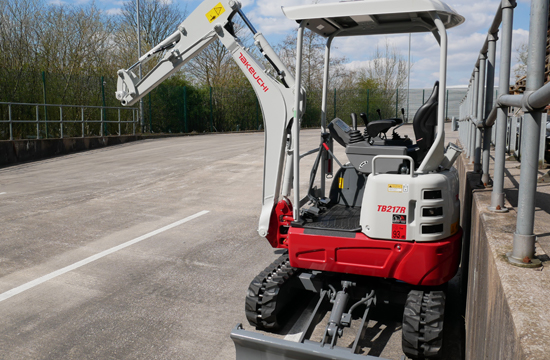

Compact and Convenient
The TB217R delivers a high-performance short tail mini excavator. Available as a canopy-only compact mini with excellent balance and stability.
Stage V Ready (<19kW)
Meets the latest regulations for low emission zones, no requirement for exhaust after-treatment systems.
Excellent Working Range
The longer dipper arm and track frame provide added stability for excellent operating parameters.

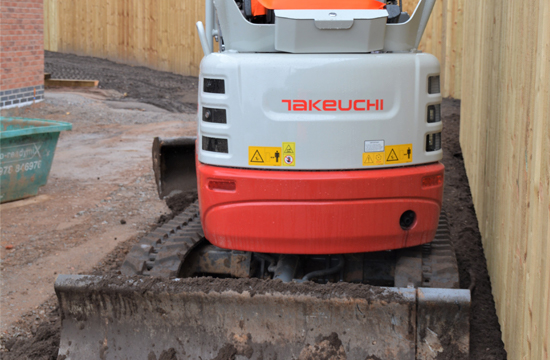

Reduced Tail Swing
The TB217R has just 70mm overhang at 90° to extended track, with a slew radius of 730mm. Perfect for limited working radius including streetworks.

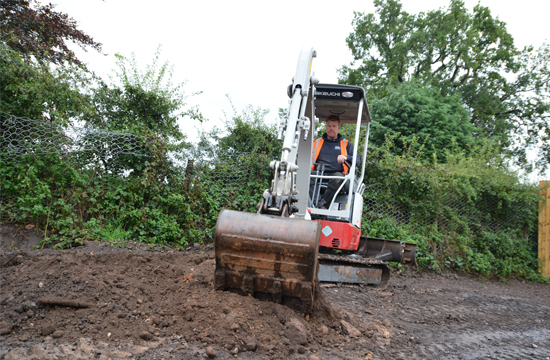

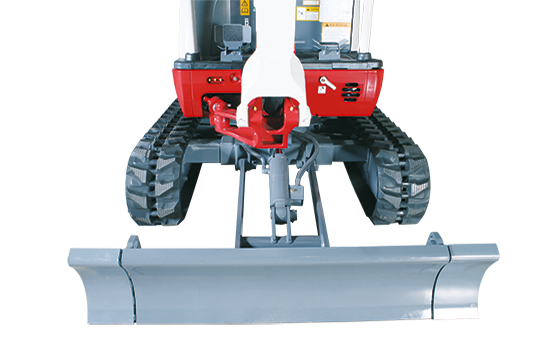

Expandable Track Frame
The TB217R track frame adjusts from 980 to 1300mm, getting access in narrow spaces. Added track width gives greater operating stability.

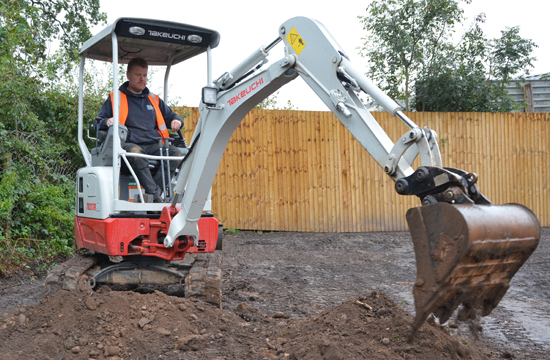

Maximum Productivity
With simultaneous operation of swing and digging functions alongside two speed travel the TB217R achieves maximum fast cycle times.

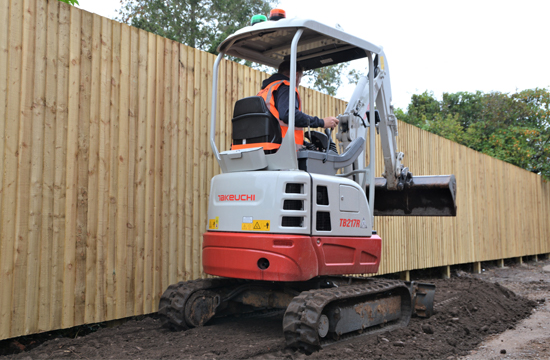

Wraparound Counterweight
The heavy-duty wraparound helps protect key engine and hydraulic components from damage while delivering excellent stability.

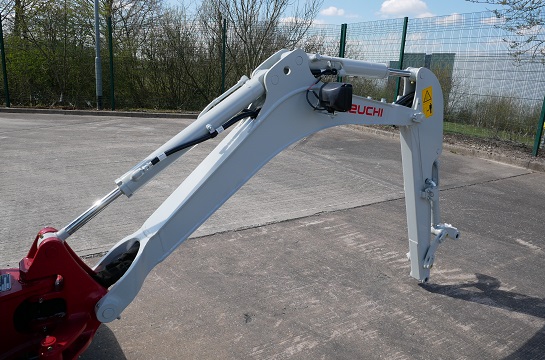

Top Mount Boom Cylinder
The fabricated steel boom and dipper provide maximum strength. With well protected internally routed top mounted hydraulic cylinders.
Protected Hydraulic Plumbing all hoses are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.
All Steel Construction
100% steel protects components and ensures long term durability.
Tough on Site
Built for tough working environments, the TB217R has a robust machine construction.

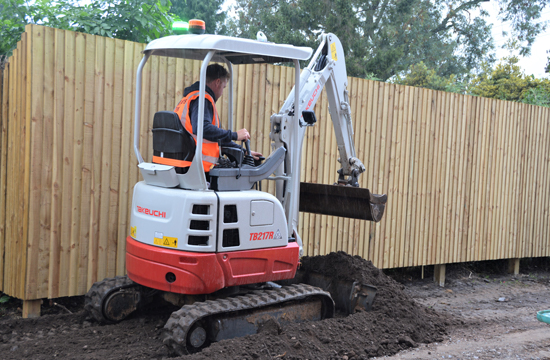

Triple Flange Track Rollers provide increased roller to rail contact improving track retention on rough terrain.
Compact Canopy

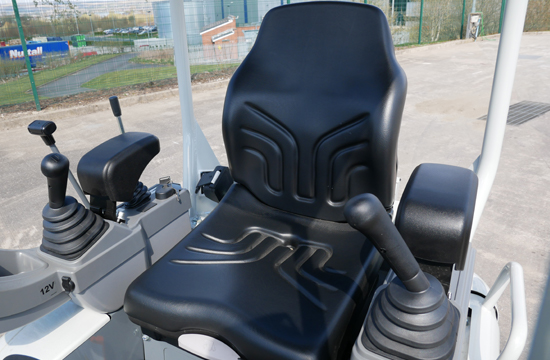

the TB217R canopy offers a comfortable working space for operators, easy to access with good leg and foot room.

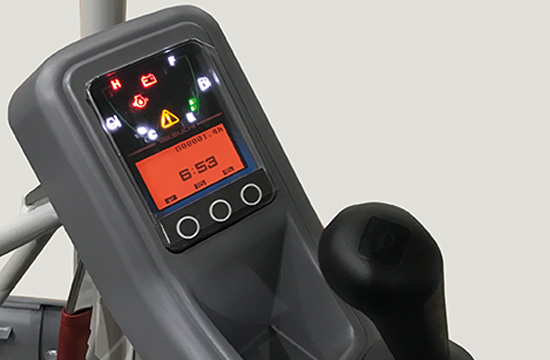

Multi-Information Display is easy to read in all lighting conditions and keeps the operator informed on the status of the machine.
All Round Visibility
the comfortable canopy delivers excellent all round visibility along with roof and boom mounted workzone lighting.

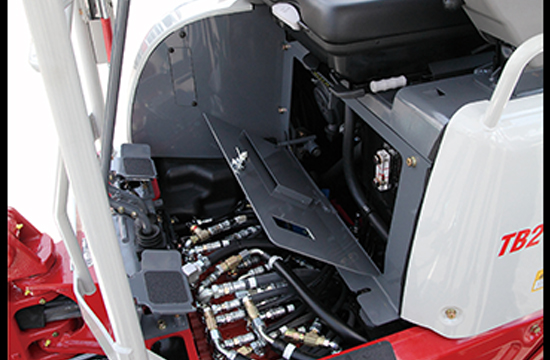

Easy Auxiliary Set-Up
The 1-2 way breaker valve located below the operator seat in a lockable service panel.

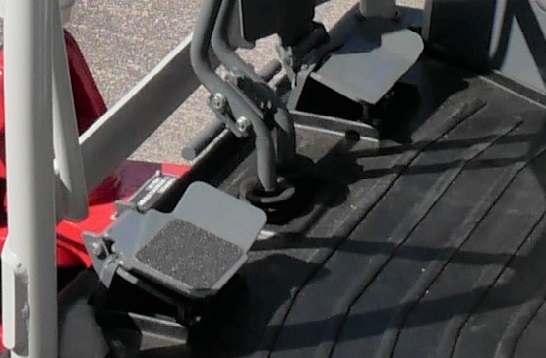

Excellent Foot Room
The TB217R canopy offers maximum foot room with offset and breaker auxiliary and fold down foot rests.
Smooth Pilot Control delivers precise responsive controls for operators for maximum operator comfort.

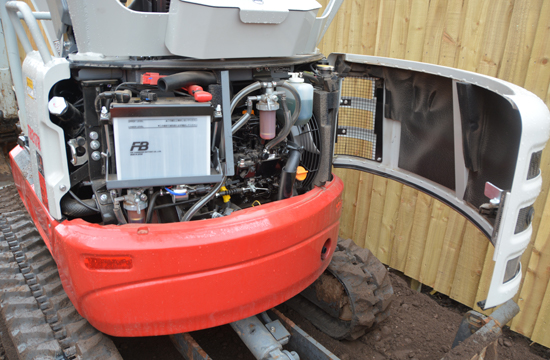

Maximum Service Access
Large full width service door provides for full engine service access. 250 hours service intervals.

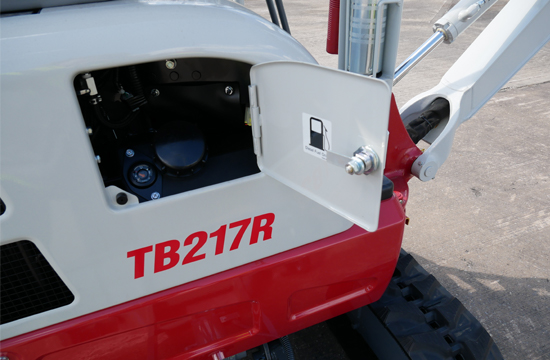

Lockable Fuel Fill
With a 22 litre fuel tank and remote gauge provides assistance when refuelling and a self-bleed system for easy restarts if the machine runs out of fuel.
Under Seat Component Access the battery and electrical components are conveniently located under the operators seat along with the pattern change valve.
Maximum On-site Protection

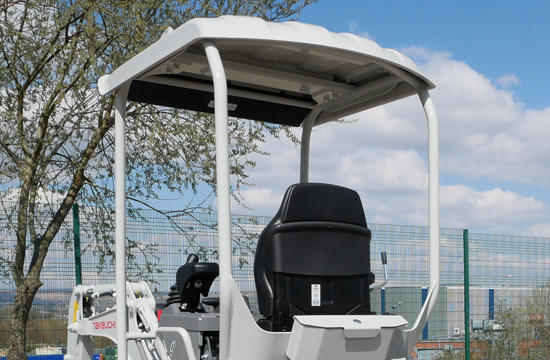

Maximum protection with a heavy-duty all steel roof canopy, incorporating lifting points.
Stage V Ready <19kW
For maximum efficiency and power, the TB217 does not require any exhaust after-treatment systems

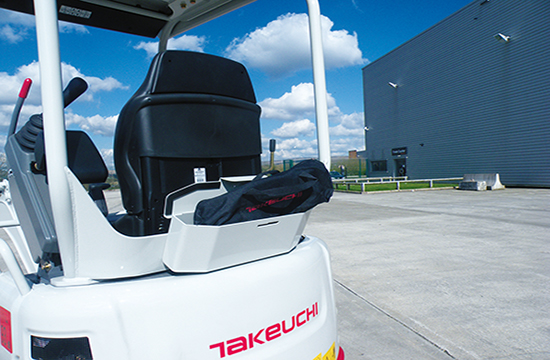

Service Storage
A convenient bracket for the grease gun and toolbox area behind the seat.
