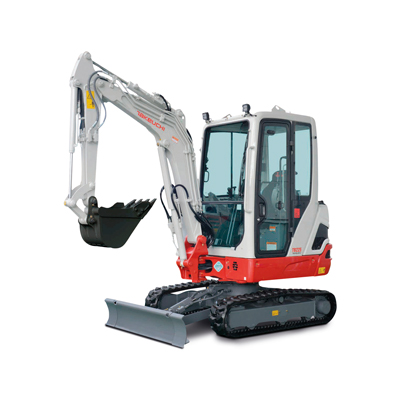

TB225 Compact Excavator | 2.5 Tonne
The TB225 compact mini excavator is a legally towable 2.5 tonne alternative when using a typical 3.5 tonne trailer. Available as a cab or canopy option operators get a powerful operating output.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab or Canopy (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests and Drinks Holder |
| In-Cab- Skylight |
| In Cab MW-FM/ MP3 Radio/ USB/Bluetooth |
| In-Cab Multi-vent Heater / De-mister |
| Cab with Lift-assist Front Window with Easy Remove and Stow Lower Front Glass. |
| Cab Mirror - Internal Rear View |
| Lockabe Grease Gun & Tool Bag Storage |
| Folding Foot Rest and Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V |
| Switched Beacon Power Socket - 12V |
| Battery Isolator Switch |
| Hand Dial Electronic Throttle Control |
| Travel Alarm / Horn |
| Boom and Roof LED Workzone Lights |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V Ready < 19kW - Low Emission |
| Mechanical Fuel Injection |
| Automatic Fuel Priming System |
| Automatic Engine Idle Feature |
| Automatic Cold Start Device |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filters |
| Engine Safe Start System |
| Large Cooling System capacity |
| Service Interval - 250 hours |
| HYDRAULICS |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Auxiliary Flow Adjustable via VDU |
| Multiple Attachment Presets |
| 3rd Aux Pre-piped with Hitch Pipework, 2nd Aux Optional |
| Proportional Auxiliary Controls with Detent |
| Primary Auxiliary Circuit with Auto Tank |
| Switched 1/2-Way Aux Flow |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Clustered Hydraulic Test Points |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Hydraulically Retractable Width (1100-1500mm) |
| Load Sensing Two Speed Travel with Automatic Shift |
| Easy to Maintain Triple Flange Track Rollers with Sealed Bearings |
| Easy Tension Grease Filled Track Adjusters |
| Tool-free Adjustable Width Dozer Blade with Pin-on Extensions |
| Secure-sure Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | Yanmar / 3TNV82A |
| Rated Output (kW)/RPM | 16.5 kW / 2,200 min |
| Maximum Torque (Nm) | 84.1 |
| Cylinders | 3 |
| Displacement (cc) | 1330 |
| Electrical System | 12v 40 amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2376/2241 |
| Overall Length (mm) | 4375 |
| Width (mm) | 1100 extending to 1500 with Ext tracks |
| Height Cab/Canopy (mm) | 2430 / 2355 |
| Dozer Blade (W x H) (mm) | 1100-1550 x 300 |
| Ground Clearance (mm) | 190 |
| Min Front Swing Radius (mm) | 1485 |
| Slew Radius (mm) | 1240 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 210 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 38 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow (l/min) | 13 |
| 2nd Aux Flow Pressure (bar) | 196 |
| Standard Aux | 1st & 3rd |
| Optional Aux | 2nd, & 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.7 |
| Slew Motor | Constant Volume Piston Motor |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 250 |
| Ground Contact Length (mm) | 1415 |
| Ground Pressure (kpa) | 30.4 Cab 28.7 Canopy |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 36 |
| Fuel Tank (l) | 30.5 |
| Engine Lubrication (l) | 3.6 |
| Cooling System (l) | 4.3 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker *(Suitable for limited usage) | TKB102-S TKB72-S* TKB72* |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2580 |
| Max Dump Height (mm) | 2875 |
| Max Reach at Ground Level (mm) | 4250 |
| Max Vertical Digging Depth (mm) | 2100 |
| Max Bucket Digging Force (kN) | 19.3 |
| Max Arm Digging Force (kN) | 12.8 |
| Travel Speed (km/h) | 2.5-4.2 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2376/2241 |
| Overall Length (mm) | 4375 |
| Width with ext tracks (mm) | 1100 - 1500 |
| Height Cab/Canopy (mm) | 2430/2355 |
| Ground Clearance (mm) | 190 |
| Dozer Blade (W x H) (mm) | 1100-1550 x 300 |
| Min Front Swing Radius (mm) | 1485 |
| Tail Swing Radius (mm) | 1240 |
| Boom Swing Angle (L/R) | 75°/55° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…

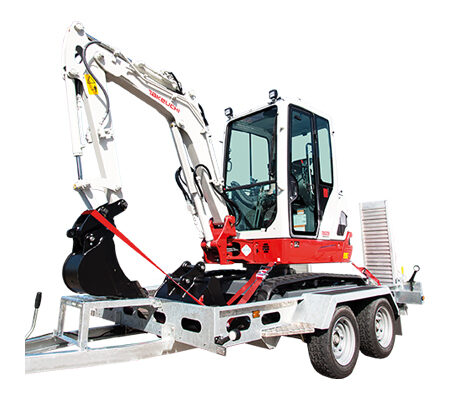

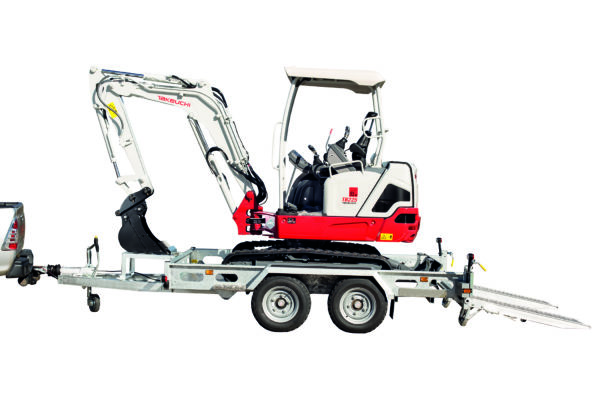

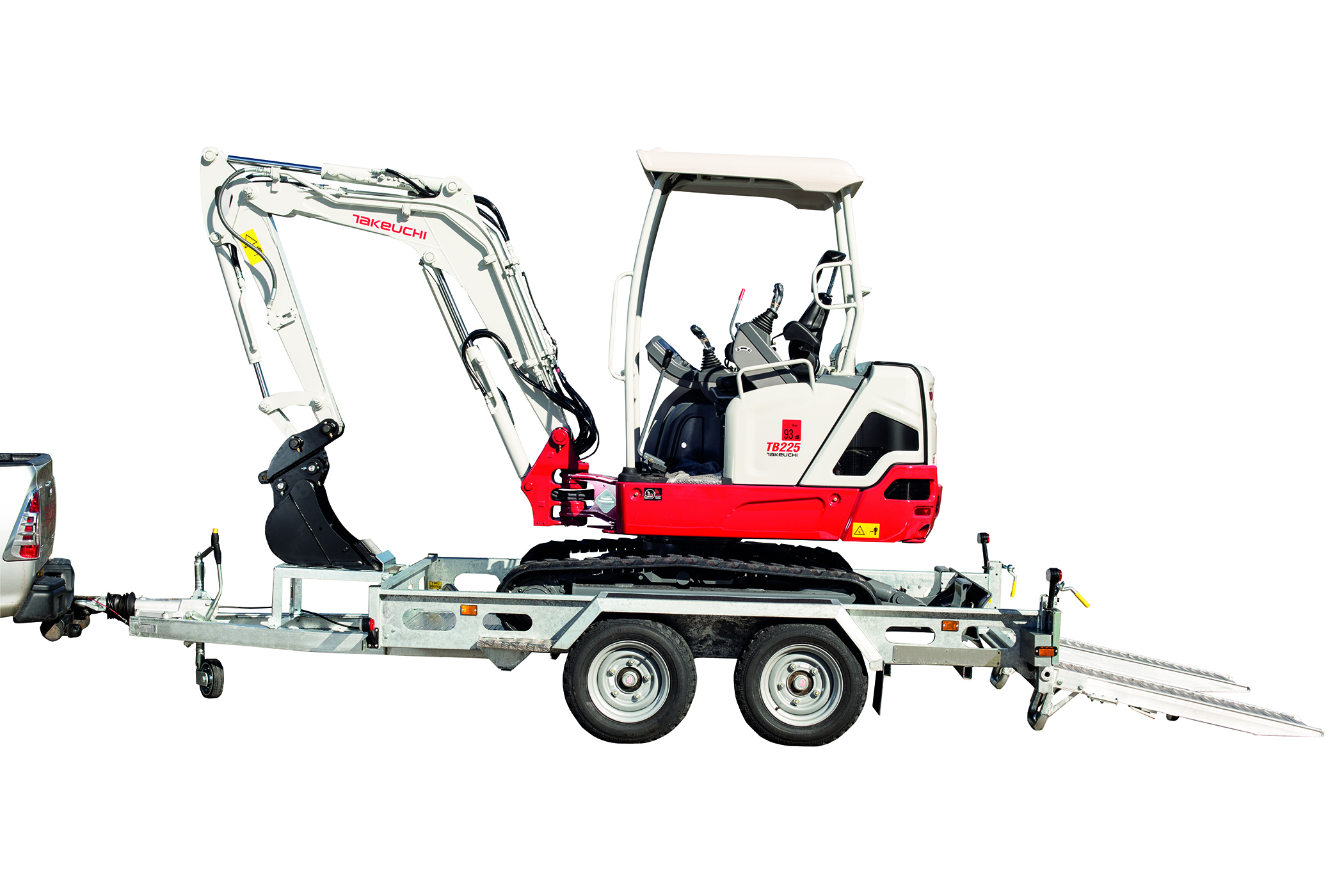

Safe Trailer Towing
The TB225 legally meets the UK’s towing regulations with secure tie down points and room on the trailer for attachments.
Automatic Step Down
Travel Motors
Provide for added torque on demand when pushing, climbing, or turning in high speed mode.

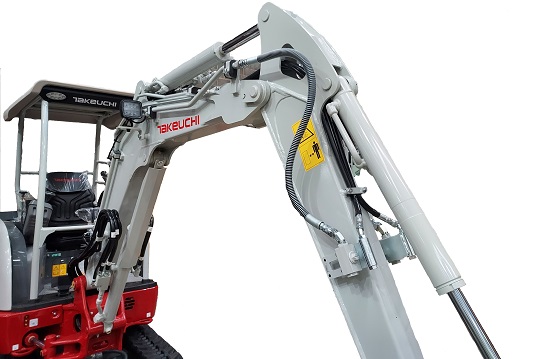

Hitch Prepiped as Standard
The TB225 is now available with hitch pre-piped as standard. Auxiliary isolation valves for easier attachment installation.
Hi-Spec Auto Functions
The TB225 offers auto idle, auto detent, auto tank and jog-dial throttle – all features only usually found on larger models.

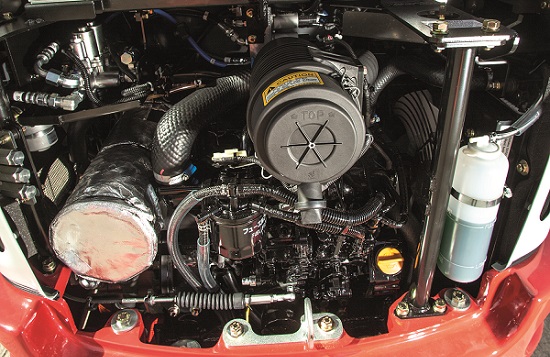

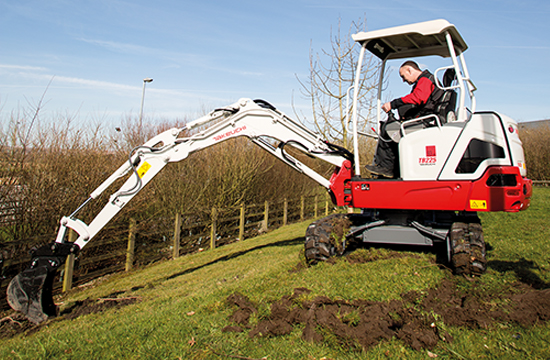

Power Performance
The TB225 engine output is Stage V ready and has the output power close to a 3-tonne model 16.5kW.

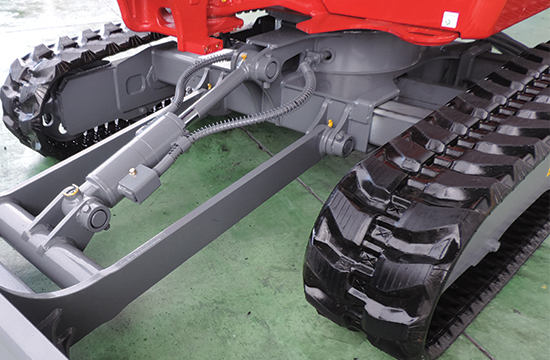

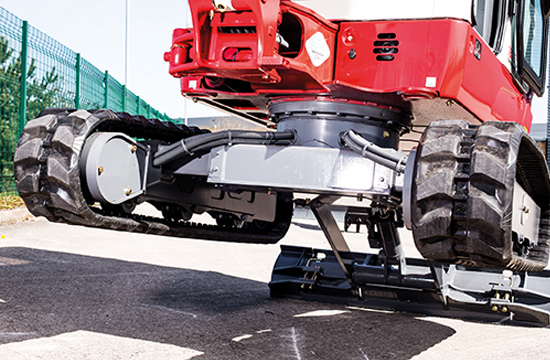

Retractable Track Frame
From 1,100 to 1,500 mm for excellent working stability. With independent track expander and blade control levers.

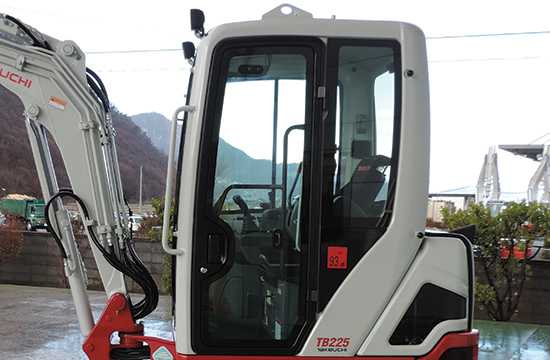

TOPS / ROPS / OPG
Cab and Canopy
Provides the operator with safest protective structure, safe and comfortable on any job site.

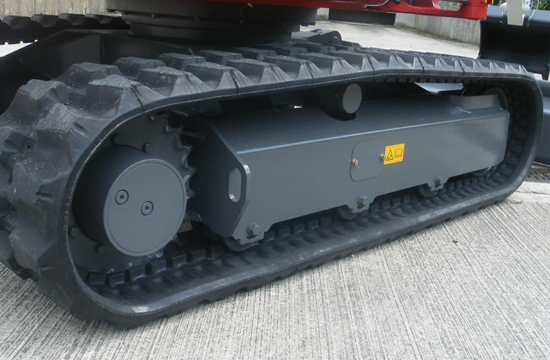

Strong Track Frame
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.

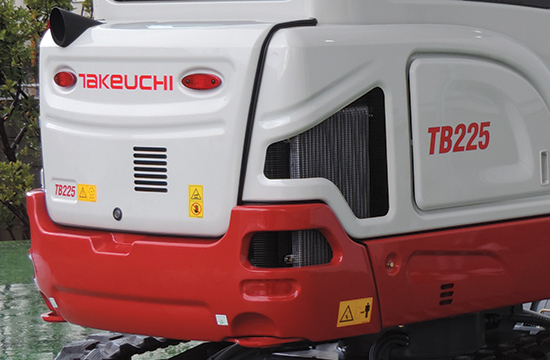

Heavy Duty Counterweight
Offers wrap around protection, protects key engine and hydraulic components and contributes to the excellent stability.

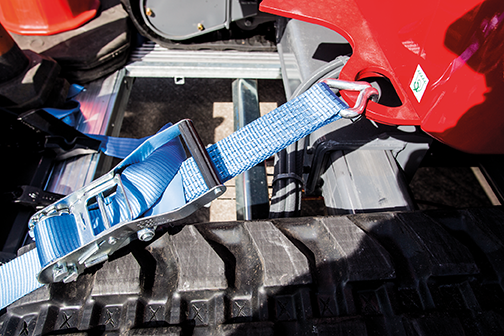

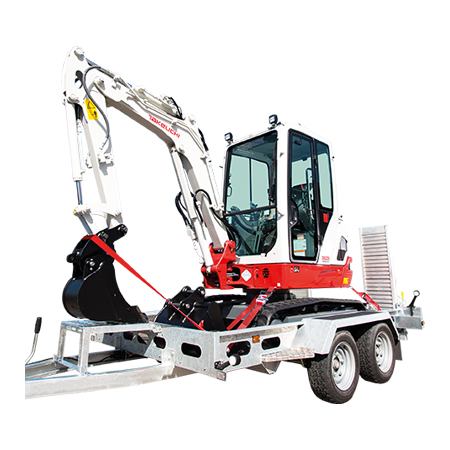

Safe to Transport
With 4 dedicated tie-down anchor points the safest possible transporting is assured. Built-in dedicated lift points for a safe 3-point-lift.
Secure and Safe on Site
Boom and arm holding valves complimented with overload lifting alarm and crane switch.

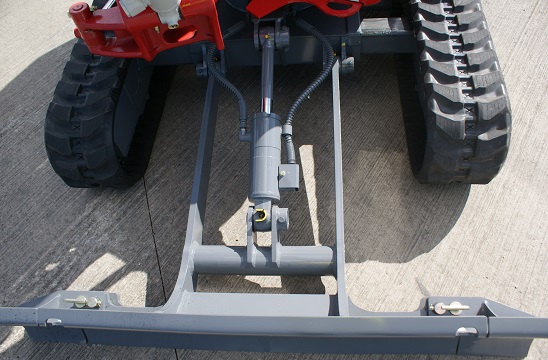

Heavy Duty Blade
Long dozer blade and large blade cylinder for added strength. Comes with quick change locking pin to adjust the width to match expanded tracks.

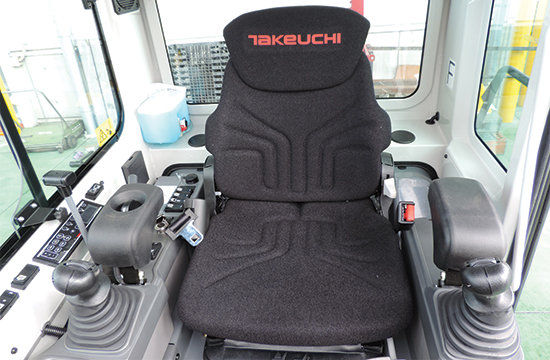

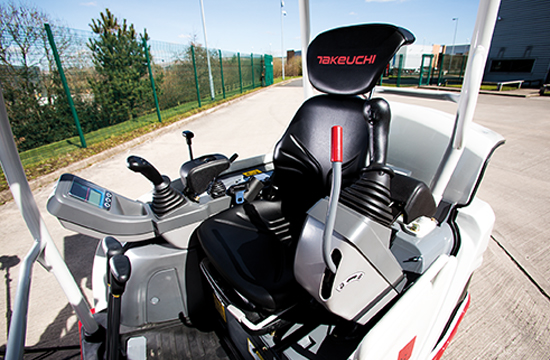

Maximum Comfort
Fully adjustable suspension seat with back rest and weight adjustment, adjustable arm rest and retractable seatbelt.

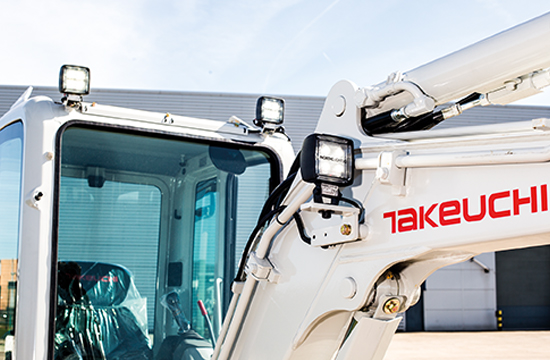

Maximum Visibility LED
Full LED workzone lighting provides safe operating environment on a TB225.
Operator Amenities
Cab model with Bluetooth, MP3 and heater. Canopy with a lockable toolbox behind the seat.
Roomy Cab and Canopy

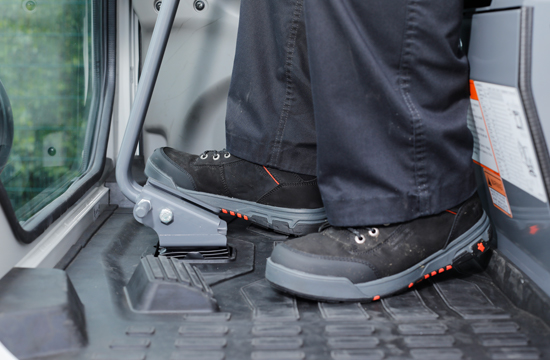

Excellent foot room on both cab and canopy, complete with foot rests and foot operated offset control.

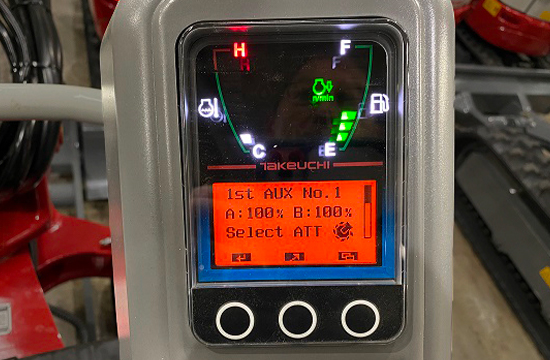

Attachment Functionality
Preset and adjustable auxiliary flows from the comfort of the operator seat via the illuminated colour VDU.

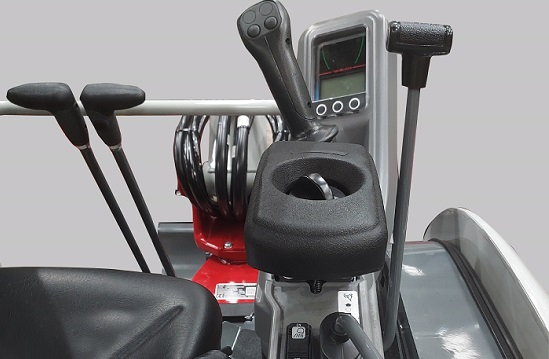

Pilot Operated Joystick Controls – deliver precise responsive controls, helping reduce operator fatigue.

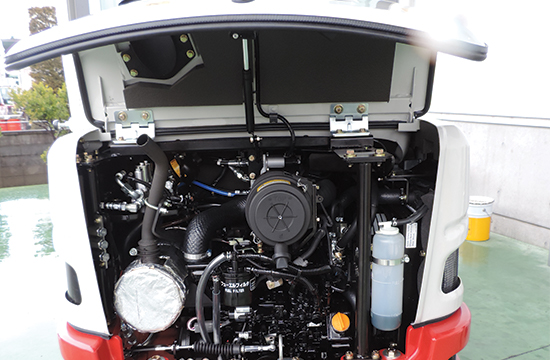

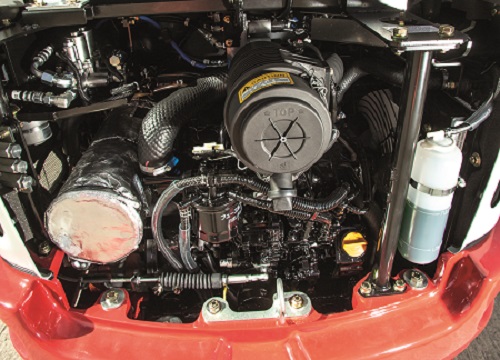

Rear Engine Hood
Clustered service points include: double element air cleaner, pilot line and fuel filters, pump group test points and coolant expansion tank.

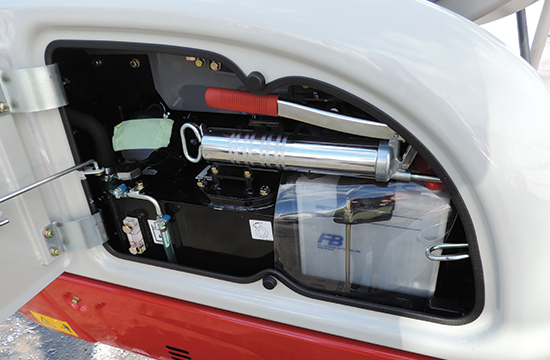

Right Access Panel
Access to the battery, fuel fill and hydraulic tank alongside the battery isolation switch and grease gun storage point.

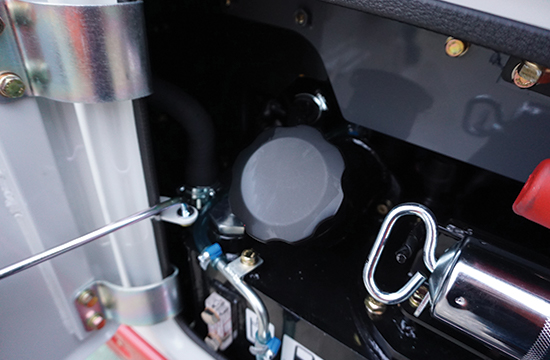

Lockable Fuel Fill
Convenient and secure. A remote gauge assists when refuelling and a self-bleed fuel system for easy restart if the machine runs out of fuel.

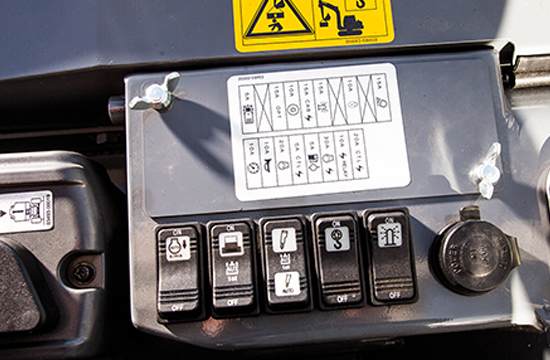

On-Board Power
Cab beacon socket on rear pillar and ancillary 12V power socket positioned at the cab/canopy front.
Easy Servicing
The robust undercarriage is very easy to maintain, the extending track-frame is easy to service with replaceable wear parts.
Track Maintenance
Very easy track maintenance with grease filled service track adjusters.
.
