TB230 Compact Excavator | 3 Tonne
The Takeuchi TB230 Compact Excavator offers operators a powerful operating performance. Offering the largest cab on a 3-tonne weight class excavator, equivalent to a 6-tonne cab size.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests and Drinks Holder |
| Skylight with Sunshade / Rain Guard |
| In Cab MW-FM/ MP3 Radio/ USB/Bluetooth |
| Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Cab Mirror - 3 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Full Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) - Optional |
| ENGINE |
| Stage V Ready < 19kW - Low Emission |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 250 hours |
| HYDRAULIC |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| 1/2-Way Flow Selector Valve |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Auxiliary Flow Adjustable via VDU |
| Multiple Attachment Presets |
| Proportional Auxiliary Controls with Detent |
| 3rd Aux Pre-piped with Hitch Pipework, 2nd Aux Optional |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with Float |
| Automatic Load Sensing 2 Speed Travel |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Ground Level Hose Spiral Protection |
| Dozer Cylinder Protection Guard |
| Tie Down Anchor Points |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV88F |
| Rated Output (kW)/RPM | 18.2 / 2400 |
| Maximum Torque (Nm) | 92.2 |
| Cylinders | 3 |
| Displacement (cc) | 1642 |
| Electrical System | 12volts 64amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel Cab/Canopy (kg) | 3020/ 2920 |
| Overall Length for transport (mm) | 4595 |
| Width (mm) | 1450 |
| Height (mm) | 2525 / 2540 |
| Dozer Blade (W x H) (mm) | 1450 x 355 |
| Ground Clearance (mm) | 305 |
| Min Front Swing Radius (mm) | 1505 |
| Slew Radius (mm) | 1330 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 210 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 54 |
| 1st Aux Max Pressure (bar | 210 |
| 2nd Aux Max Flow (l/min) | 21 |
| 2nd Aux Flow Pressure (bar) | 200 |
| Standard Aux | 1st 3rd |
| Optional Aux | 2nd 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 10.3 |
| Slew Motor | Constant Volume Piston Motor |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 300 |
| Ground Contact Length (mm) | 1440 |
| Ground Pressure (kpa) | 29.3 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 56 |
| Fuel Tank (l) | 46 |
| Engine Lubrication (l) | 4.7 |
| Cooling System (l) | 4 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB102-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2835 |
| Max Dump Height (mm) | 3230 |
| Max Reach at Ground Level (mm) | 4710 |
| Max Vertical Digging Depth (mm) | 2165 |
| Max Bucket Digging Force (kN) | 20.9 |
| Max Arm Digging Force (kN) | 12.9 |
| Travel Speed (km/h) | 2.9 - 5.2 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel Cab/Canopy (kg) | 3020/2920 |
| Overall Length for transport (mm) | 4595 |
| Width (mm) | 1450 |
| Height (mm) | 2525/ 2540 |
| Ground Clearance (mm) | 305 |
| Dozer Blade (W x H) (mm) | 1450 x 355 |
| Min Front Swing Radius (mm) | 1505 |
| Slew Radius (mm) | 1330 |
| Boom Swing Angle (L/R) | 79°/58° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Designed for Success
The TB230 design features a rounded body for improved visibility and functionality. The conventional tail swing with reduced overhang provides outstanding stability.
Stage V Ready <19kW
Meeting all low emission regulations, with maximum efficiency and power the TB230 does not require any exhaust after-treatment systems.

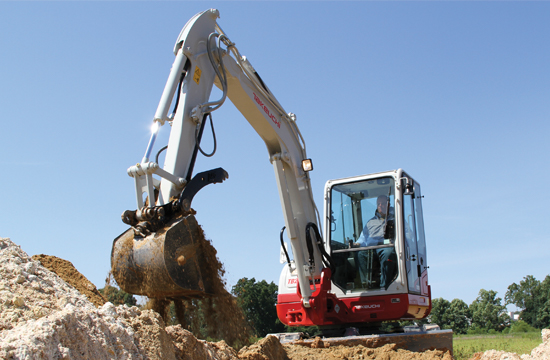

3-Tonne Cab or Canopy
Now available as a cab or canopy. A proven high performance machine with excellent power, greater torque and first class hydraulic system for faster cycle times and productivity on site.
Pick Your Mode
Economy and High Altitude Modes, allow the operator to choose the operating mode best suited to the application.
Power to Perform
Powerful arm and bucket breakout forces provide an outstanding blend of speed, power, and versatility.
Switch Activated Blade Float
Switch activated blade float now fitted as standard to maximize ground finishing on site.

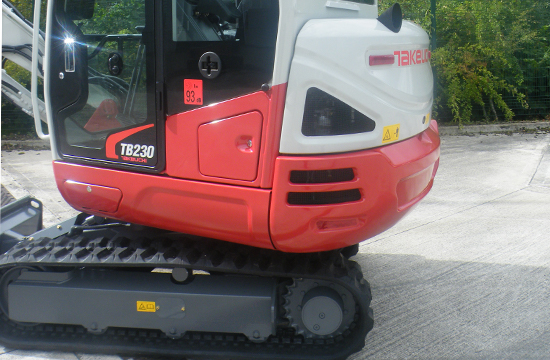

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.
All Steel Construction
100% steel helps protect components and ensures long term durability.

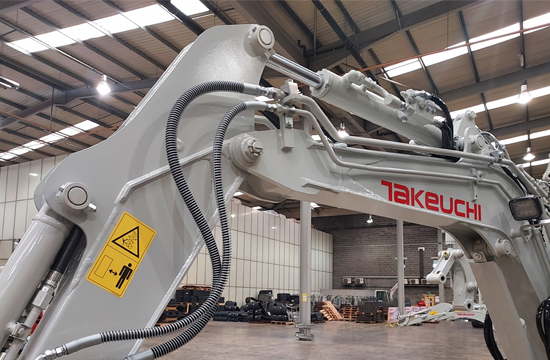

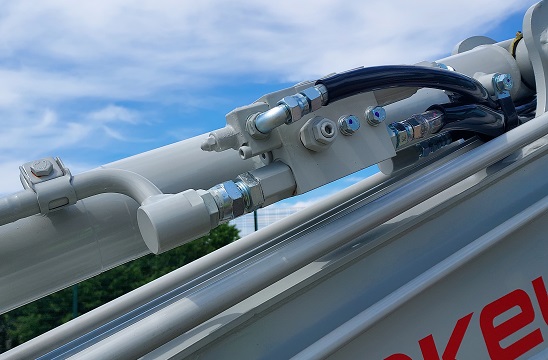

Hitch Prepiped as Standard
The TB230 is now available with hitch pre-piped as standard. Auxiliary isolation valves for easier attachment installation.
Smooth Operation
Pilot controls combine with cushioned boom and swing cylinders help reduce shock and vibration and add to smoother operation.

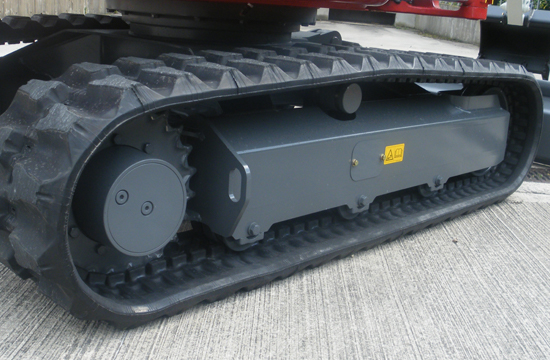

Strong Track Frame
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.

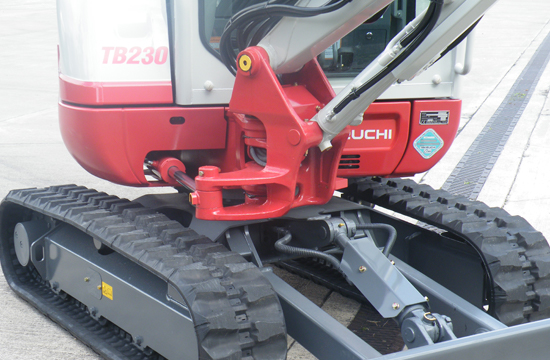

Added Protection
Boom and blade cylinder protection guard. Exposed ground level hydraulic hoses are spiral steel wrapped for added protection.
Large Comfortable Cab
The operator station is well appointed and spacious for outstanding comfort, offering the equivalent cab space of larger sized excavators complete with LED workzone lighting.
3-Tonne Canopy
Canopy option comes complete with twin roof-mounted workzone LED lights, and all-steel canopy roof . A versatile machine for groundworks and utilities industries.
Multi-Information Display
Easy to read in all lighting conditions with attachment functionality. Preset and adjustable auxiliary flows from the comfort of the operator seat via the illuminated colour VDU.

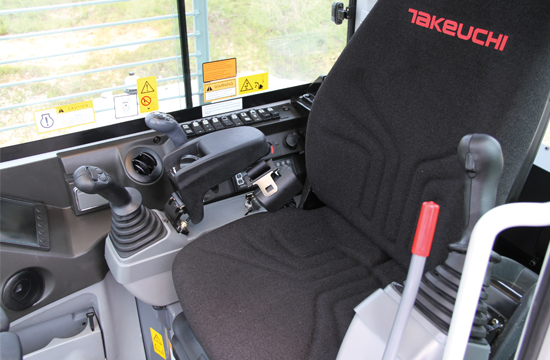

Ergonomic Control
Maximum comfort and good all round visibility with comfortable ergonomic pilot controls. Familiar switch brigade, dial style throttle and in-cab stereo radio.

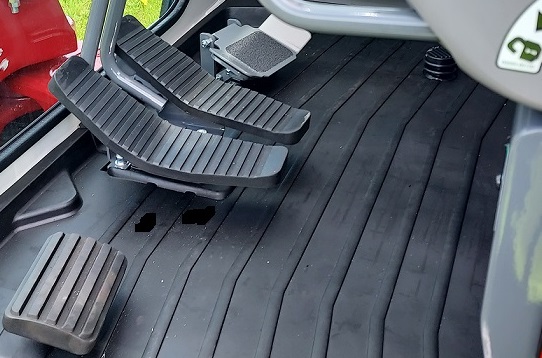

Large Foot Pedals
The TB230 has plenty of foot room for all sizes of operator. The long length travel pedals fully support the operator’s feet with an offset and footrest alongside.
All-Day Comfort
TB230 cab features top window and sunshade along with MP3 socket and adjustable deluxe high back suspension seat and arm rests.
Rear Engine Access
Clustered key service check points make for easier daily checks and maintenance. Central filter positions for speedy service and less downtime.
Outstanding Access
The service access hood provides maximum access to the control valves, hydraulic lines and hydraulic tank.
Lockable Fuel Fill
Convenient and secure with remote gauge for assistance when refuelling. A self-bleed system for easy restart if runs out of fuel. Auto refuelling pump as standard.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers.
On-Board Power
Cab features 12V and USB power socket with roof mounted switched beacon socket.
Canopy with pre wired beacon switch and socket.
Safety on Site
LED workzone lighting, boom and arm check valves, lift overload and travel alarm all come as standard.
