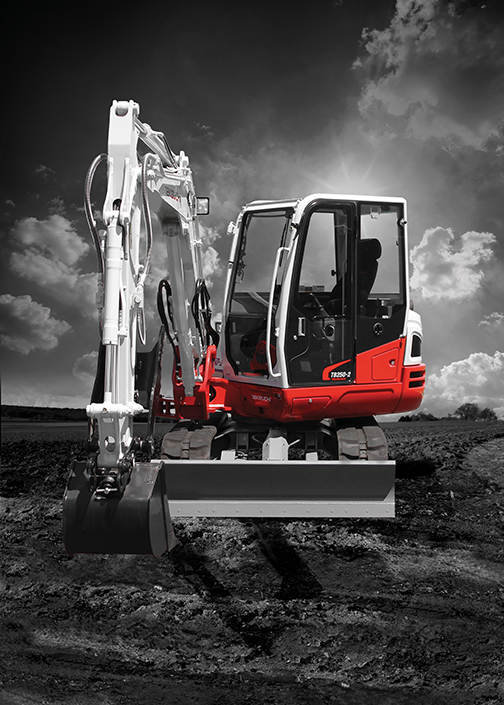

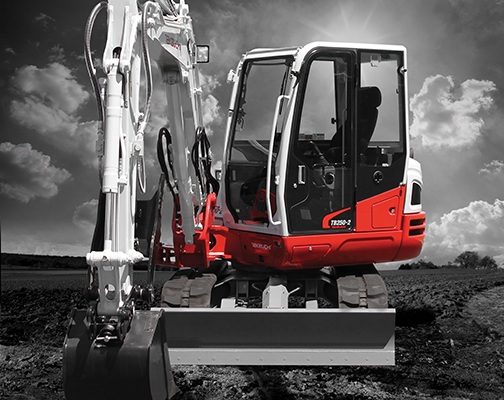

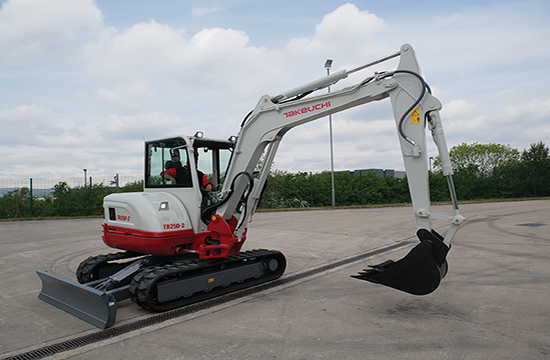

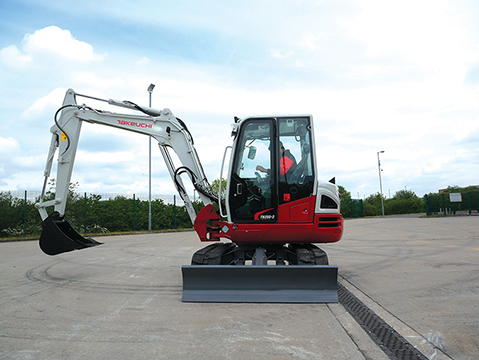

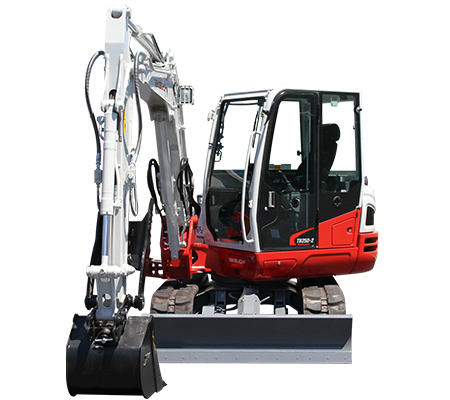

TB250-2 Compact Excavator | 5 Tonne
Delivering outstanding performance and versatility, the TB250-2 compact excavator offers massive operating capacity. With excellent breakout force, reach and lifting capacity the TB250-2 works well above expectations in the 5-tonne weight class.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests and Drinks Holder |
| Air Con |
| Skylight with Sunshade/ Rain Guard |
| In Cab MW-FM/ MP3 Radio/ USB/Bluetooth |
| Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Cab Mirror - 3 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Full Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 500 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm, and Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Auxiliary Flow Adjustable via VDU |
| Multiple Attachment Presets |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Proportional Auxiliary Controls with Detent |
| 1/2-Way Flow Selector Valve |
| 3rd Aux Pre-piped with Hitch Pipework, 2nd & 4th Aux optional |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with Float |
| Automatic Load Sensing 2 Speed Travel |
| Triple Flanged Sealed Bearing Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Dozer Cylinder Protection Guard |
| Tie Down Anchor Points |
| Steel Tracks - Optional |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 4TNV88C PTB DPF |
| Rated Output (kW)/RPM | 29.1/2400 |
| Maximum Torque (Nm) | 144.9 |
| Cylinders | 4 |
| Displacement (cc) | 2189 |
| Electrical System | 12volts 90amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 5206 |
| Overall Length for transport (mm) | 5495 |
| Width (mm) | 1840 |
| Height (mm) | 2555 |
| Dozer Blade (W x H) (mm) | 1840 x 430 |
| Ground Clearance (mm) | 335 |
| Min Front Swing Radius (mm) | 1850 |
| Slew Radius (mm) | 1360 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 240 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 91 |
| 1st Aux Max Pressure (bar) | 206 |
| 2nd Aux Max Flow (l/min) | 38 |
| 2nd Aux Max Pressure (bar) | 206 |
| Standard Aux | 1st 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.8 |
| Slew Motor | Constant Volume Piston Motor |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 400 |
| Ground Contact Length (mm) | 1975 |
| Ground Pressure (kpa) | 30 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 95 |
| Fuel Tank (l) | 70 |
| Engine Lubrication (l) | 7.4 |
| Cooling System (l) | 7 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 96 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB302-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 3780 |
| Max Dump Height (mm) | 4045 |
| Max Reach at Ground Level (mm) | 5985 |
| Max Vertical Digging Depth (mm) | 2985 |
| Max Bucket Digging Force (kN) | 37.3 |
| Max Arm Digging Force (kN) | 23.4 |
| Travel Speed (km/h) | 2.8/5.2 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel (kg) | 5120 |
| Overall Length for transport (mm) | 5495 |
| Width (mm) | 1840 |
| Height (mm) | 2555 |
| Ground Clearance (mm) | 335 |
| Dozer Blade (W x H) (mm) | 1840 x 430 |
| Min Front Swing Radius (mm) | 1850 |
| Slew Radius (mm) | 1360 |
| Boom Swing Angle (L/R) | 75°/60° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…

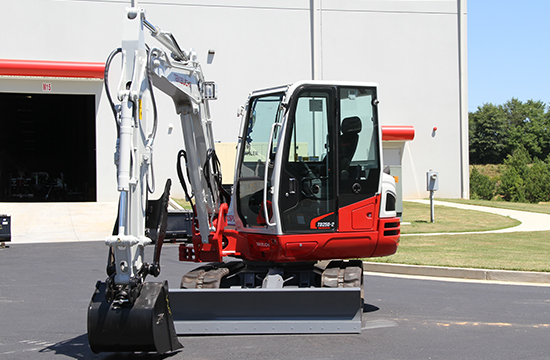

Designed for Success
The TB250-2 design features a rounded stylish cab with maximum visibility and functionality. A compact yet powerful 5-tonne option.
Stage V Ready
Powered by a 29.1kW Yanmar 4 cylinder engine with DPF, to meet Stage V emission regulations.
Pick Your Mode
The TB250-2 offers Eco and High-Altitude modes, operators can choose the operating mode best suited to the application.
Easy Controls
Ergonomic in-cab controls. The electronic throttle control makes it easy to set the throttle to the desired position for operation. Now with switch activated float blade.
Environment Friendly
The TB250-2 equipped with DPF, auto idle, auto detent and jog-dial throttle – all environmental features to minimize noise and emissions.

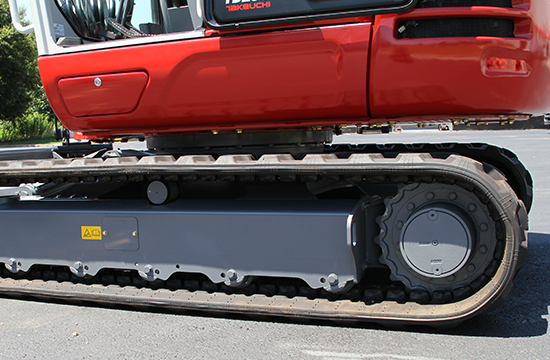

Automatic Step-Down
Travel Motors
Provide torque on demand when pushing, climbing, or turning in high speed mode.

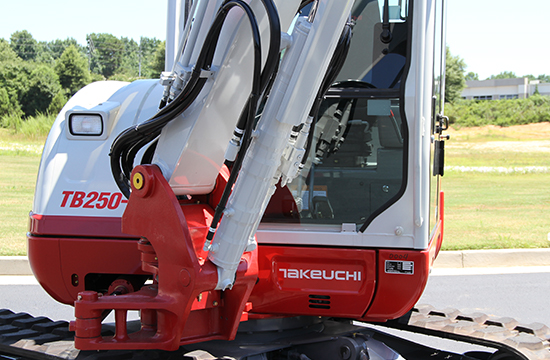

Strong and Robust
Well protected hydraulic hoses, cylinder guards and All steel construction protects components and ensures long term durability.

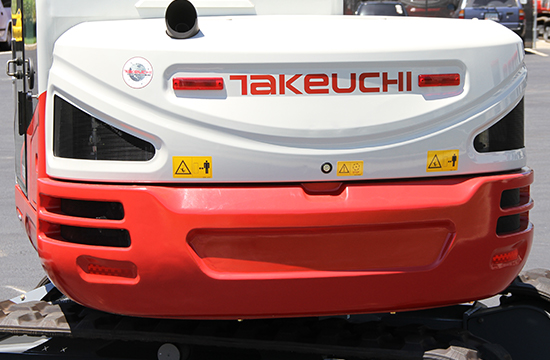

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

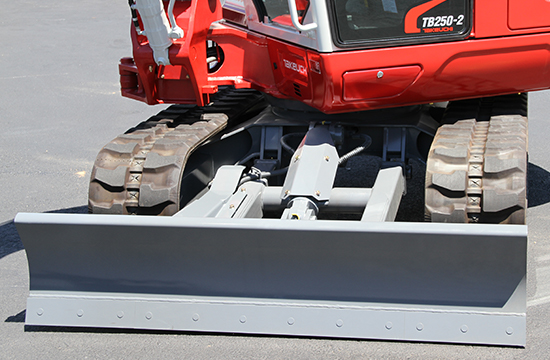

Heavy Duty Blade
Boom and blade cylinder protection guard. Exposed ground level hydraulic hoses are spiral steel wrapped for added protection..
Safe Operation
Boom and arm holding check valves as standard help maintain load control if hoses fail, along with crane switch and lift audible overload audible alarm.
Smooth Operation
Pilot controls combine with cushioned boom, arm and swing cylinders help reduce shock and vibration and add to smoother operation.

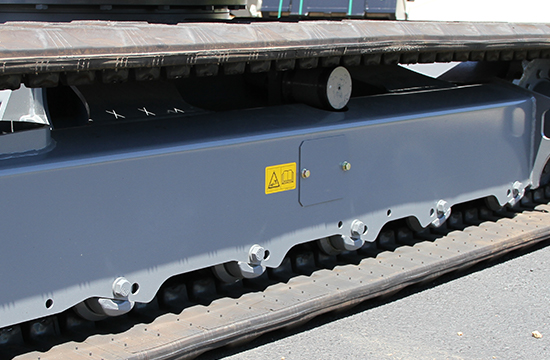

Strong Track Frame
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.

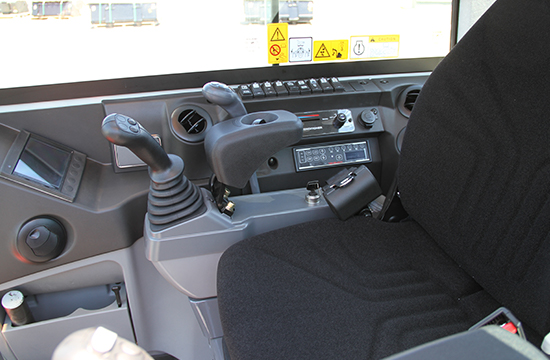

Spacious Styled Interior
The TB250-2 is designed for maximum operator all day comfort. Ergonomic functional work area for all-day operating and excellent all round visibility.

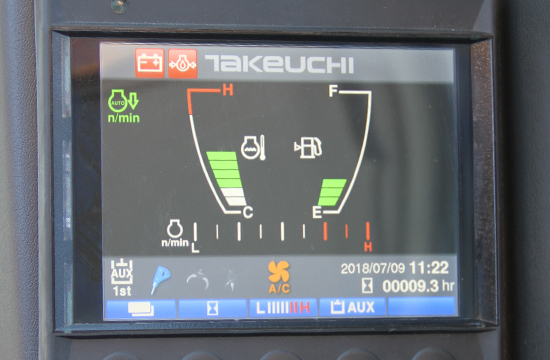

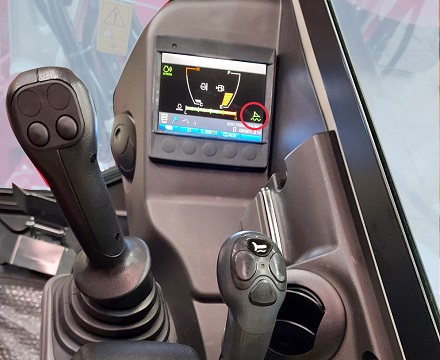

Interactive
Multi-Informational Display
Easy to read machine status in all light conditions highlights valuable machine data. In-cab easy to adjust auxiliary flow settings.
All Day Comfort
All-round adjustable deluxe high back suspension seat, radio and stero speakers along with MP3 and Bluetooth.
Air con and heater maximize operator cab comfort.

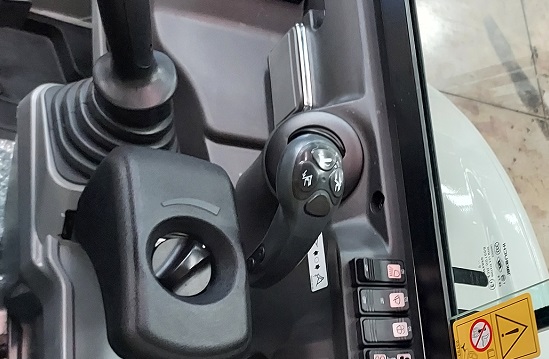

Pilot Joystick Controls
Deliver precise responsive controls and help reduce operator fatigue, with a supporting adjustable arm-rest for comfortable all-day operating.
LED Lighting & Sunshade
New style wider beam LED workzone lightiing on roof and boom enhance visibility. The top glass sunshade reduces glare and improves visibility of any overhead obstacles e.g. power cables when truck loading.

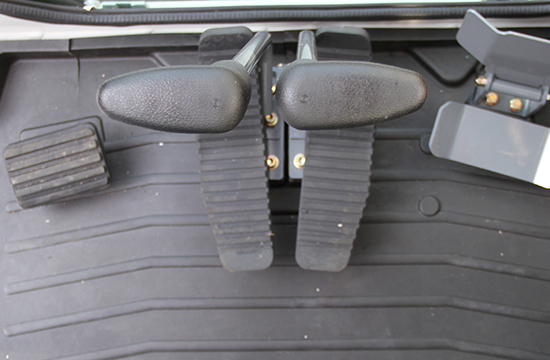

Large Travel Pedals
The cab is well appointed for outstanding comfort. Excellent in-cab foot and leg room, fully supported foot travel controls alongside foot rests and offset function pedal.
Less Downtime
Convenient access to daily checks and routine maintenance points. Clustered key service check points. Centrally located filter positioning for speedy servicing and less downtime.

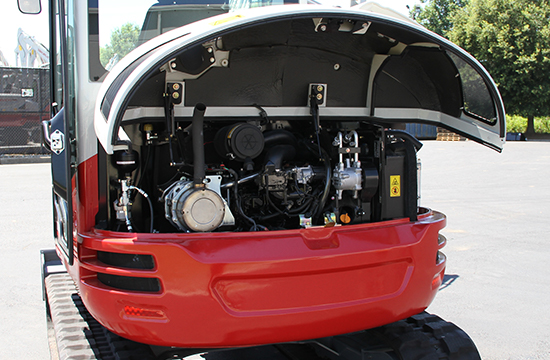

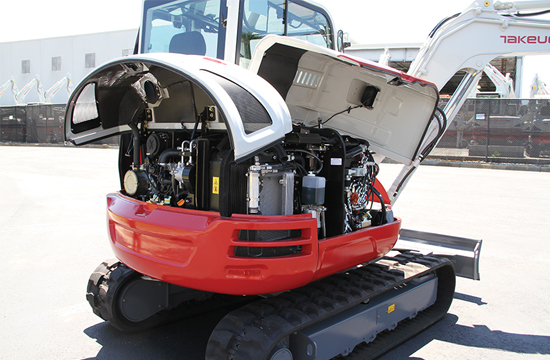

Maximum Access
The TB250-2 provides 270° machine service access. Easy access to the engine and hydraulic components. The large wide opening hinged service panels are all key lockable.

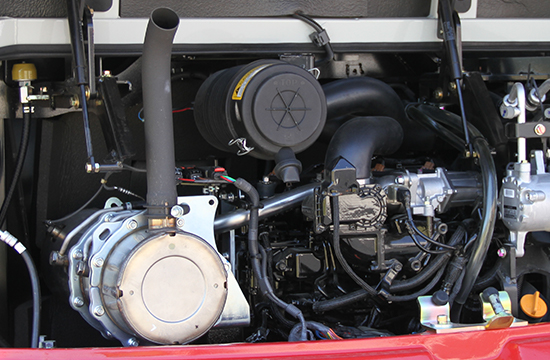

Heavy Duty Cooling System
The side by side radiator and hydraulic oil cooler features increased cooling capacity. Easy to inspect, clean and maintain.

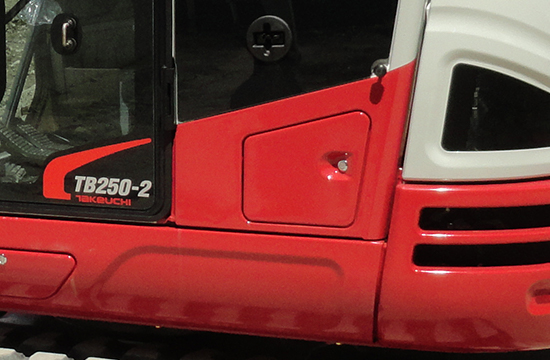

Convenient and Secure.
Easy access electric refuelling pump comes as standard for quick refuelling. The self-bleed system provides for easy restarts if the machine runs out of fuel.
On-board Power
Internal 12V and USB power sockets and switch activated external roof mounted beacon socket for site ready compliance.
Easy Track Maintenance
With grease filled easy service track adjusters and maintenance-free sealed bearing track rollers
