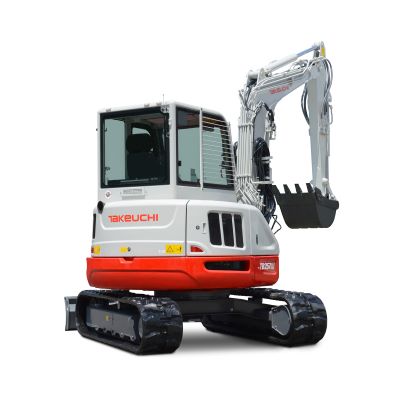

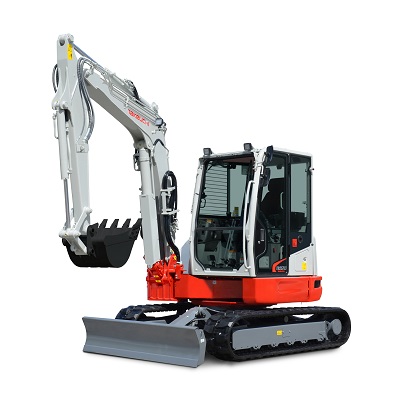

TB257FR Compact Excavator | 5.8 Tonne
The TB257FR Short Tail Compact Excavator has exceptional power, performance, a wide working range, and impressive feature set. With the unique side-to-side offset boom arrangement the TB257FR provides maximum versatility on site and parallel trenching right up to walls both left and right side.
Product Details
Features
| OPERATOR'S STATION |
|---|
| Cab (ROPS / TOPS / OPG) |
| Large Wrap Around Counterweight |
| Large Interactive Multi-Information Colour Display |
| Fully Adjustable Deluxe HighBack Suspension Seat |
| Adjustable Arm Rests and Drinks Holder |
| Air Con |
| Skylight with Sunshade/ Rain Guard |
| In Cab MW-FM/ MP3 Radio/ USB/Bluetooth |
| Gas Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Cab Mirror - 4 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Folding Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal / External Ancillary Power Sockets - 12V |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting |
| Travel Alarm |
| Emergency Engine Shut-down Switch |
| Electrical Refuelling Pump |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| Automatic Idle |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 500 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Pilot Accumulator |
| Cushioned Boom, Arm & Swing Cylinders |
| Main Boom Cylinder Guard |
| Automatic Slew Brake |
| Boom and Arm Holding Check Valves |
| Lift Overload Alarm |
| Auxiliary Flow Adjustable via VDU |
| Multiple Attachment Presets |

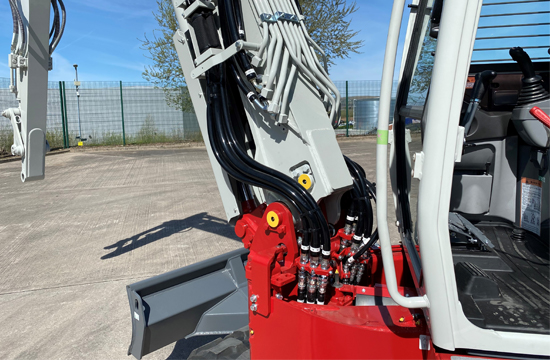

| 1,2,3 Aux Standard, 3rd Aux Pre-piped with Hitch Pipework, 4th Aux Optional |
| Proportional Auxiliary Controls with Detent |
| Auxiliary Hydraulics with Independent Isolation Valves |
| 1/2-Way Flow Selector Valve |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| UNDERCARRIAGE AND FRAME |
| Compact Near Zero Tail - (Exceeds only 18cm beyond track) |
| Hinged and Tilt-up Cab |
| Heavy Duty Dozer Blade with Float |
| Automatic Load Sensing 2 Speed Travel |
| Dozer Cylinder Protection Guard |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Easy Tension Grease Filled Track Adjusters |
| Lower Carriage and Blade Tie Down Points |
Specifications
| ENGINE | |
|---|---|
| Make | KUBOTA |
| Model | V2403 CR TE5b |
| Rated Output (kW) | 39/2200 |
| Maximum Torque (Nm) | 195.6 |
| Cylinders | 4 |
| Displacement (cc) | 2434 |
| Electrical System | 12V 90A |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket, hitch & fuel (kg) | 6061 |
| Length (Transporting) (mm) | 5395 |
| Width (mm) | 2000 |
| Height (mm) | 2575 |
| Dozer Blade (W x H) (mm) | 2000 x 430 |
| Ground Clearance (mm) | 300 |
| Min Front Swing Radius (mm) | 1435 |
| Slew Radius (mm) | 1180 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 240 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Flow Max Flow l/min | 105 |
| 1st Aux Max Pressure (bar) | 206 |
| 2nd Aux Flow Max Flow l/min | 45 |
| 2nd Aux Flow Pressure (bar) | 206 |
| Standard Aux | 1st 2nd 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.6 |
| Slew Motor | Axial Piston |
| Slew Brake | Planetary |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | disc |
| Track Width (mm) | 400 |
| Ground Contact Length (mm) | 1980 |
| Ground Pressure (kpa) | 33.1 |
| Maximum Gradeability | 30° |
| CAPACITIES | |
| Hydraulic System (l) | 100 |
| Fuel Tank (l) | 70.2 |
| Engine Lubrication (l) | 9.5 |
| Cooling System (l) | 10 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 98 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB302-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| DIMENSIONS & WEIGHT | |
|---|---|
| Operating Weight inclusive of bucket and fuel (kg) | 6061 |
| Length (Transporting) (mm) | 5395 |
| Width (mm) | 2000 |
| Height (mm) | 2575 |
| Ground Clearance (mm) | 300 |
| Front Swing Radius (mm) | 1435 |
| Slew Radius (mm) | 1180 |
| Dozer Blade (W x H) (mm) | 2000 x 430 |
| OPERATING PARAMETERS | |
| Max Digging Depth (mm) | 3895 |
| Max Dump Height (mm) | 3890 |
| Max Reach at Ground Level (mm) | 6080 |
| Max Vertical Digging Depth (mm) | 3160 |
| Max Bucket Digging Force (kN) | 36.6 |
| Max Arm Digging Force (kN) | 23.1 |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Unrivalled Versatility
The new TB257FR features a unique patented side-to-side (STS) offset boom coupled with the near zero tail swing for unrivalled manoeuvrability and visibility on site.

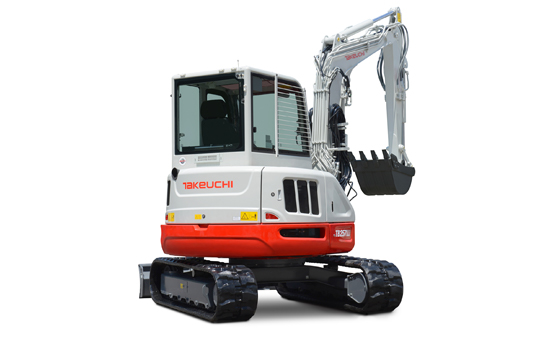

Near Zero Tail Swing
The TB257FR can uniquely fully retract the boom with a loaded digging bucket, then rotate 360° (only exceeding the track by 18cm with 630mm bucket).

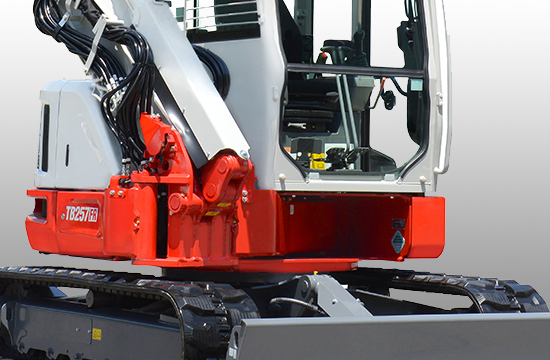

Side to Side Offset Boom
Features a unique patented side-to-side (STS) offset boom, excavates both right and left right up to walls.
Stable Platform
The low centre of gravity and optimized counterweight create an extremely stable platform with lifting capabilities similar to that of a conventional machine.
Stage V Ready
Low emission engine – Kubota V2403-CR-TE5B turbocharges engine – low emission and low noise.
500 hour service intervals.
Dozer with Float
Robust steel dozer with cylinder protection guard. Switched activated blade float for ground work finishing.

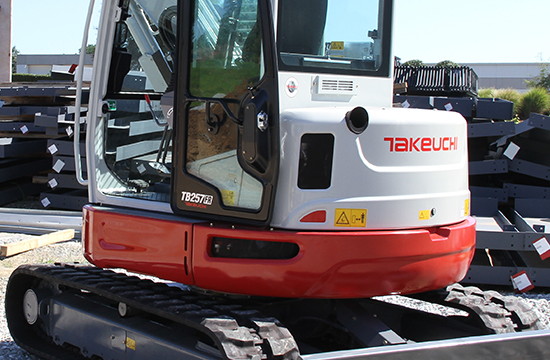

Robust Design
All steel construction with hinged and lockable service hoods.

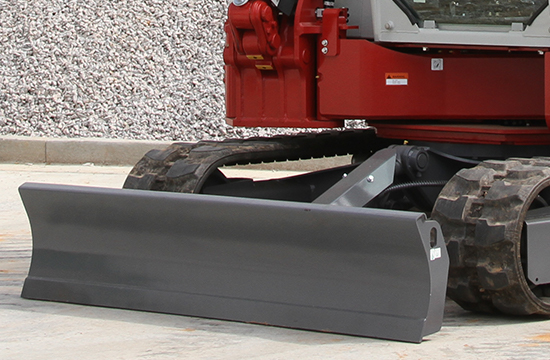

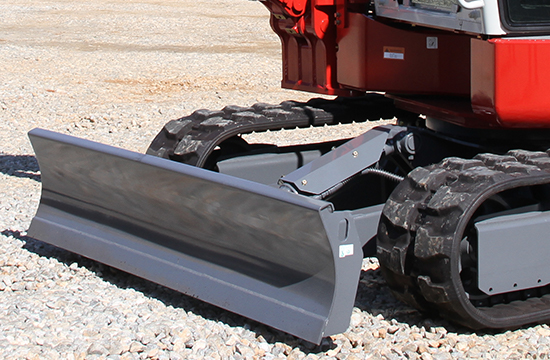

Heavy Duty Dozer
Robust steel dozer with large steel protection guard on the dozer lift cylinder, ground level steel braided protected hoses robust for tough terrain.
Durable Design

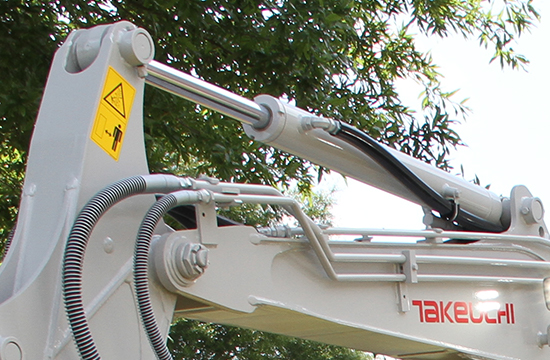

Cushioned boom, arm and swing cylinders for improved longevity and operator comfort.
Safety On-Site
Boom and arm check valves come as standard.

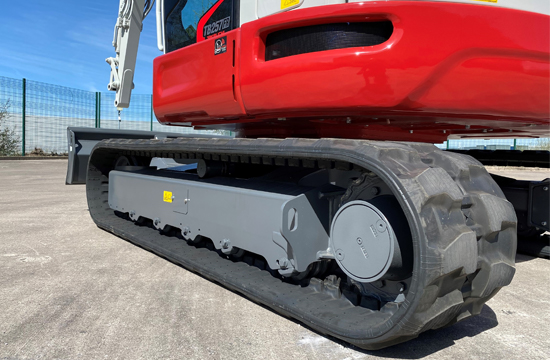

Robust Track Design
Triple flange rollers support the track in multi positions. The upper roller maintains track alignment,
Easy to Maintain
Sloped design on track frame for easy clean and reduced debris retention

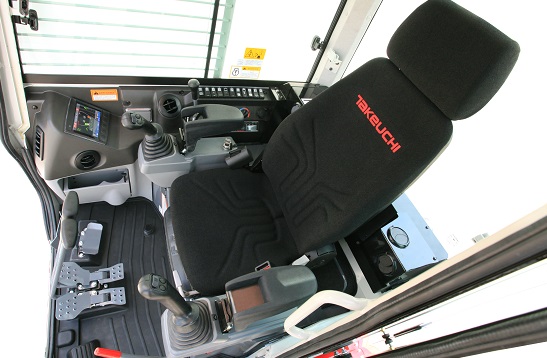

Large Comfortable Cab
Operator will appreciate the spacious, well-appointed cab that is similar in size to the 8t class model. With air con, deluxe high back seat and adjustable arm rests.

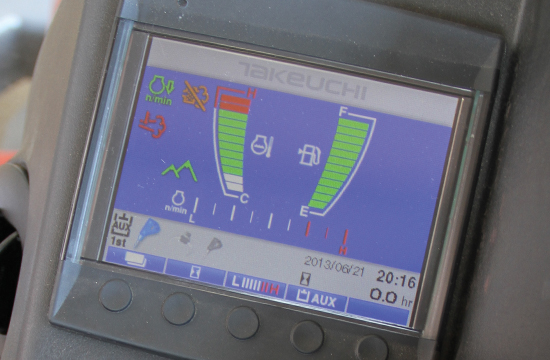

Multi Function Colour VDU
Touch screen control to adjust the 1st auxiliary flow and can customize all the preset flow settings from the comfort of the cab.
Ergonomic Operator Control
The TB257FR features well positioned ergonomic controls with rocker switches including switch activated float for onsite finishing.

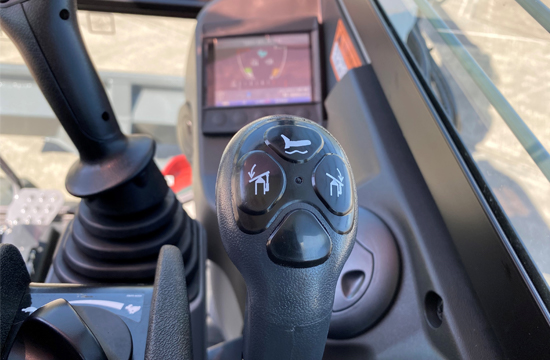

Smooth Pilot Control
Short stroke joysticks are low effort and very precise for smooth all day operating
Power Performance
High torque and auto step-down travel motors deliver on-demand tracking power when dozing, turning and climbing.

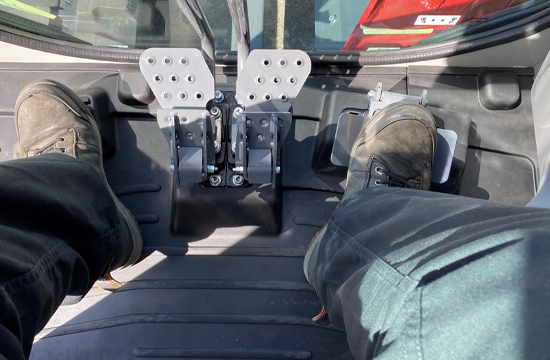

Spacious Footwell
Ergonomic roomy footwell with removable glass and full fold down travel pedals, offset and foot rest.

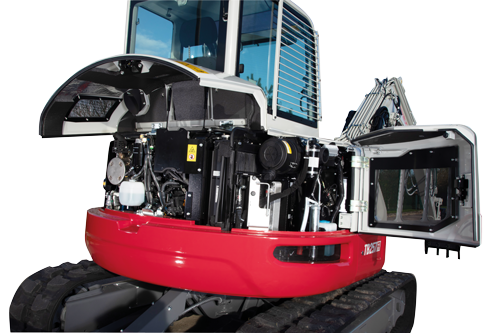

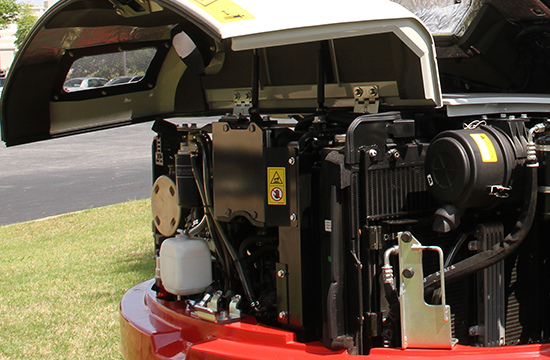

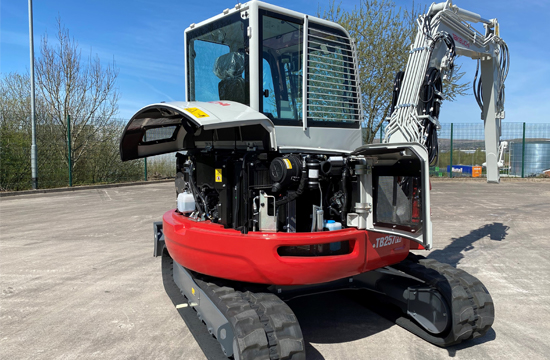

Easy Access Service Points
Rear full width service engine hood, lockable and hinged overhead for quick ground level maintenance (oil fill and filler points, fuel and pilot line filter)

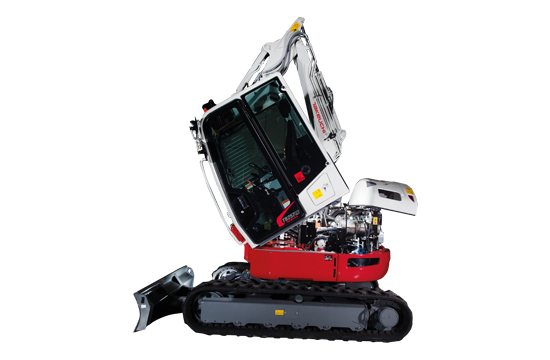

Maximum Access Tilt-up Cab
Serviceability enhanced with forward tilting cab design for unrestricted access to the engine rear and hydraulic components.
Full Service Access
The right side service door swings out for full access to side-by-side cooling units, battery and air filters.

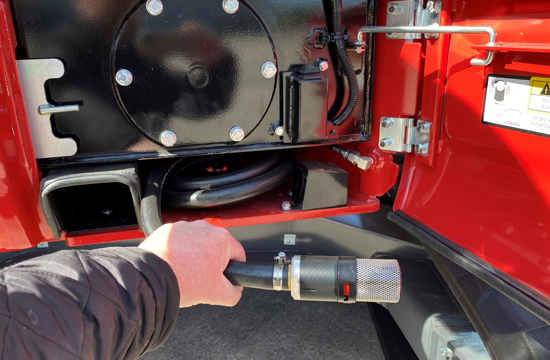

Electric Fuel Pump
The lower right locking door reveals an integrated fuel transfer pump with auto shutoff. Complete with suction hose and strainer filter with integrated run-back valve for faster on-site fuelling.
Minimum Track Maintenance
Maintenance free triple flange sealed bearing rollers. Easy adjust grease filled track tensioning expanders improve track retention.

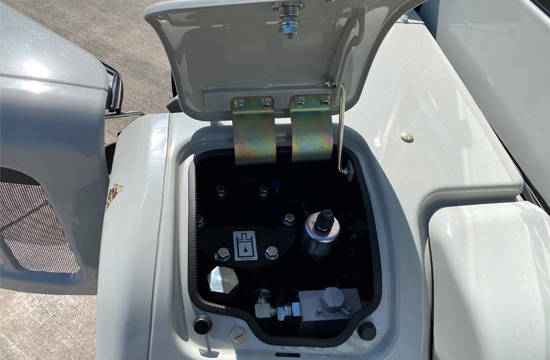

Hydraulic Access
The upper right side service door provides access to the hydraulic filter and fill points and the breaker flow-tap.
