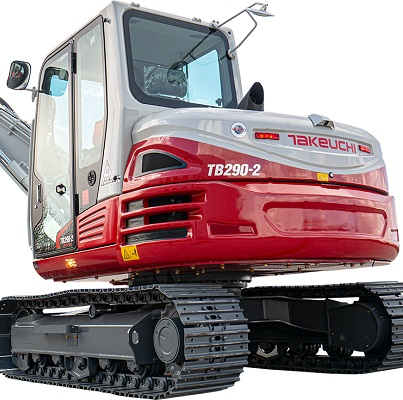

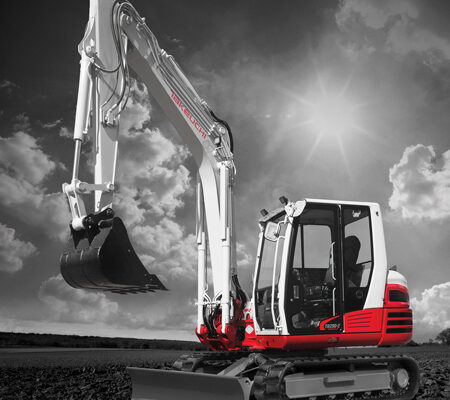

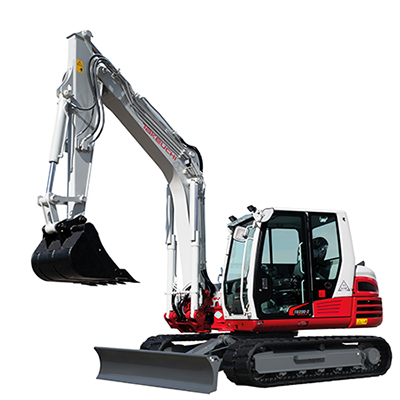

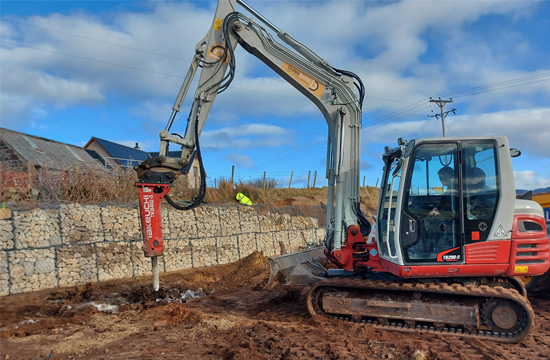

TB290-2 Compact Excavator | 9 Tonne

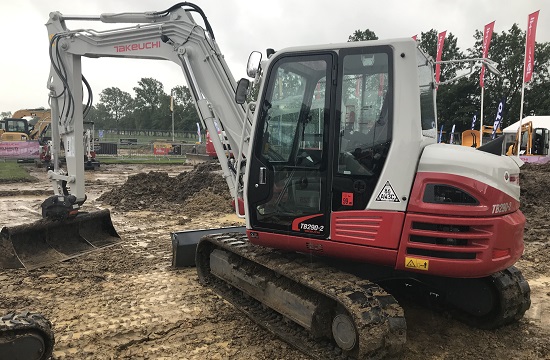

The TB290-2 Compact Excavator is a world beating 9 tonne excavator with a wide array of features that maximize efficiency and productivity, a proven powerful excavator designed for major groundworks and earthmoving.

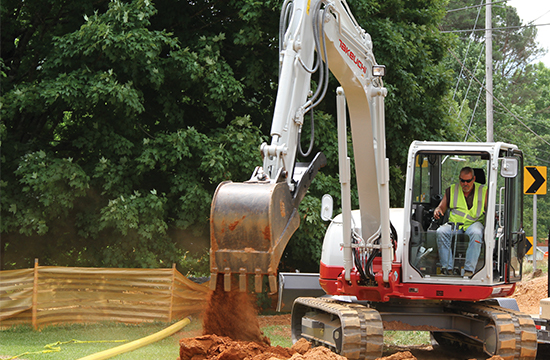

Mono or 2-piece the new 9-tonne excavator offers a versatile excavating performance with excellent breakout force of 59.1 kN.
Product Details
Features
| OPERATOR STATION |
|---|
| Cab (ROPS / OPG) |
| Large Wraparound Counterweight |
| Large Interactive Multi-Information Colour Display |
| Wide-Angle Colour Rear-View Camera with Auto-reverse Activation Display |
| Fully Adjustable Deluxe Heated HighBack Air Suspension Seat |
| Adjustable Arm Rests and Heated Drinks Holder |
| Air Con with Climate Control System |
| Skylight with Sunshade/ Rain Guard |
| In Cab MW / FM / MP3 Radio/ USB / Bluetooth / Aux-in / Stereo Speakers |
| 2x In-Cab Power Sockets 12V/USB |
| Gas Lift-Assist Front Window, Easy Remove and Stow-Away Lower Glass Panel |
| Blind-side 50-50 Sliding Window |
| Cab Mirror - 5 Blindspot Mirrors |
| Multi Vent Heater / De-mister |
| Large Fully Supporting Foot Travel Pedals |
| Foot Rests & Foot Controlled Offset |
| Roof Guard - Optional |
| ELECTRICAL |
| Sealed Rocker Switches |
| Emergency Engine Shut-down Switch |
| Front of Cab External Power Socket - 12V |
| Switched Roof Beacon Power Socket - 12V |
| LED Workzone Lighting with Site Safety Marker Lighting Side/Rear |
| Travel Alarm |
| Electrical Refuelling Pump - Extendable Length |
| TSS (Takeuchi Security System Immobilizer) |
| TFM (Takeuchi Fleet Management) |
| ENGINE |
| Stage V Ready - DPF - Low Emissions |
| DOC+DPF Exhaust After Treatment |
| High Pressure Common Rail Fuel Injection |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap Sensor |
| Dual Element Air Filter |
| High Capacity Radiator |
| Automatic Idle |
| High Capacity Hydraulic Oil Cooler |
| Working Modes: Standard, ECO and High Altitude |
| Service Interval - 250 hours |
| HYDRAULIC & WORKING EQUIPMENT |
| Hydraulic Pilot Controls with Dual Pilot Accumulators |
| Cushioned Dual Boom Cylinder, Cushioned Arm and Swing Cylinders |
| Dual Boom Protection Guards |
| Dual Boom and Single Arm Holding Check Valves |
| Lift Overload Alarm |
| Automatic Slew Brake |
| Auxiliary Flow Adjustable from In-Cab VDU |
| Multiple Attachment Presets / Password Protected Aux Settings |
| Proportional Auxiliary Controls with Detent |
| Auxiliary Hydraulics with Independent Isolation Valves |
| Aux Ports: 1st + 2nd Aux, 3rd Hardlock for Hitch, 4th Aux Optional |
| 1/2-Way Flow Selector Valve |
| High Capacity Hydraulic Tank with Fluid Level Sight Gauge |
| High Capacity Hydraulic Oil Cooler |
| 2-Piece Boom - Optional |
| UNDERCARRIAGE AND FRAME |
| Heavy Duty Dozer Blade with Float |
| Automatic Load Sensing 2 Speed Travel |
| Heavy Duty Dozer Cylinder Protection Guard |
| Ground Level Hydraulic Hoses with Steel Spiral Wrap Protection |
| Maintenance-free Sealed Bearing Triple Flanged Track Rollers |
| Automatic Hydraulic Track Tensioning System |
| Tie Down Anchor Points - Carriage, Frame and Blade |
| Steel Tracks - Optional |
Specifications
| ENGINE | |
|---|---|
| Make | YANMAR |
| Model | 4THV98CT - WTB DPF |
| Rated Output (kW)/RPM | 51.6/2000 |
| Maximum Torque (Nm) | 308 |
| Cylinders | 4 |
| Displacement (cc) | 3318 |
| Electrical System | 12volt / 90amp |
| DIMENSIONS & WEIGHT | |
| Mono Boom Machine weight - incl. bucket, hitch and full fuel (kg) | 8572 |
| 2 Piece Boom Machine weight (kg) | 8715 |
| Length (Transporting) (mm) | 6660 (6735) |
| (2-Piece) | 6735 |
| Width (mm) | 2300 |
| Height (mm) | 2550 |
| Ground Clearance (mm) | 370 |
| Dozer Blade (W x H) (mm) | 2300 x 500 |
| Min Front Offset Swing (mm) | 2495 |
| Tail Swing (mm) | 1685 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 275 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 100 |
| 1st Aux Max Pressure (bar) | 210 |
| 2nd Aux Max Flow | 60 |
| 2nd Aux Flow Pressure | 210 |
| Standard Aux | 1st 2nd & 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 10.3 |
| Slew Motor | Constant Volume Piston Motor |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |
| Traction Motor | Axial Piston |
| Traction Drive | Planetary |
| Traction Brake | Disc |
| Track Width (mm) | 450 |
| Ground Contact Length (mm) | 2210 / 2180 |
| Ground Pressure (kpa) | 37.6 mono / 39. 2-piece |
| Maximum Gradeability | 35 |
| CAPACITIES | |
| Hydraulic System (l) | 140 |
| Fuel Tank (l) | 128 |
| Engine Lubrication (l) | 10.2 |
| Cooling System (l) | 14 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 99 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB402-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 4580 |
| Max Dump Height (mm) | 5260 (6120) |
| Max Reach at Ground Level (mm) | 7290 |
| Max Vertical Digging Depth (mm) | 3820 |
| Max Bucket Digging Force (kN) | 59.1 |
| Max Arm Digging Force (kN) | 36.3 |
| Travel Speed (km/h) | 2.6-5 |
| DIMENSIONS & WEIGHT | |
| Mono Boom Machine weight (kg) | 8400 |
| 2 Piece Boom Machine weight (kg) | 8715 |
| Length (Transporting) (mm) | 6660 (6735) |
| Width (mm) | 2300 |
| Height (mm) | 2550 |
| Ground Clearance (mm) | 370 |
| Dozer Blade (W x H) (mm) | 2300 x 500 |
| Min Front Offset Swing (mm) | 2495 |
| Tail Swing (mm) | 1650 |
| Boom Swing Angle (L/R) | 70°/60° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
Takeuchi Security System (TSS)
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm

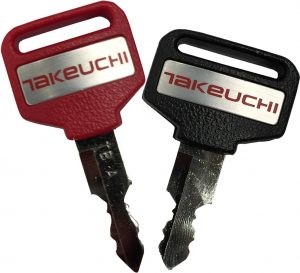

- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…
Optimised Design
The rounded design features a contemporary look. The compact tail delivers excellent stability, only 1650mm tail swing radius with a 540mm overhang at 90° to track.
Available with mono or 2-piece boom.

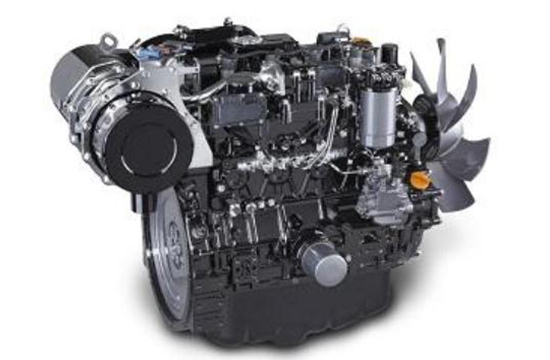

Stage V Ready
4-cylinder turbo charged engine with DPF meets low emission regulations.
Pick Your Mode – selectable Eco and High-Altitude modes to best suit the application.
Smooth Operation
The New Kawasaki hydraulic system offers improved power, cycle times and efficiency. Its enhanced pump output delivers a smoother effortless performance with multiple simultaneous operations.

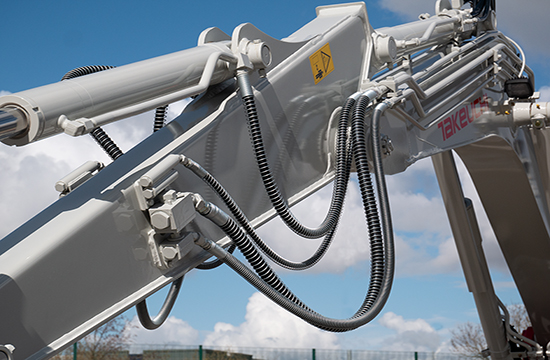

Auxiliary Hydraulics
1,2,3 Aux Standard, 3rd Aux Pre-piped with Hitch Pipework, 4th Aux Optional. Proportional control on both 1st and 2nd circuits.
Safe Site Operating

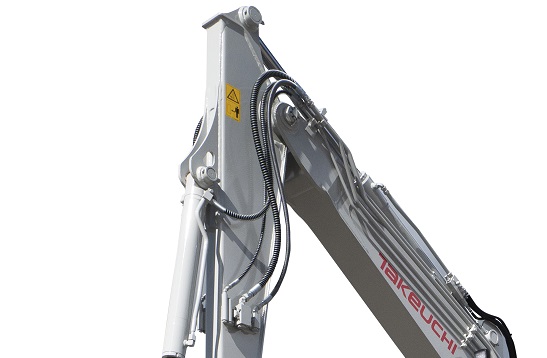

Twin Boom and arm holding check valves along with a crane switch and audible lift overload alarm.
LED workzone lighting, travel alarm and auto activating wide-angle rear-view camera are featured as standard.
Automatic Step-Down Travel Motors
Provide torque on demand when pushing, climbing, or turning in high speed mode.
Dialled In electronic throttle control makes it easy to set the throttle to the desired position for operation
All Steel Construction
Protects components and ensures long term durability. Cushioning on the boom, arm and swing cylinders improves component longevity and operator comfort.

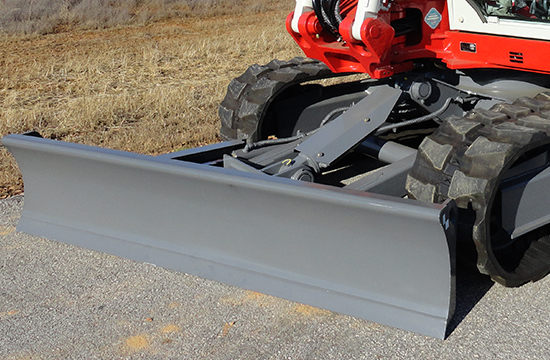

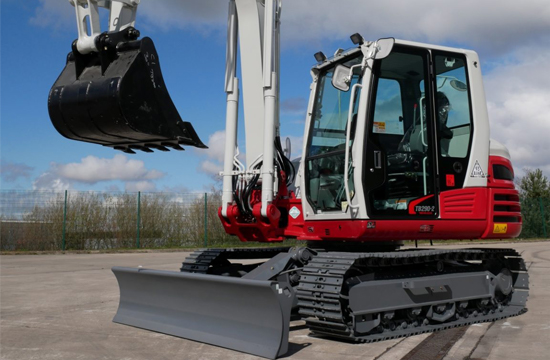

Heavy Duty Blade with Float
Strong, purpose built robust undercarriage and dozing blade, with switched blade float functionality. Ground level steel braided protected hoses robust for tough terrain.

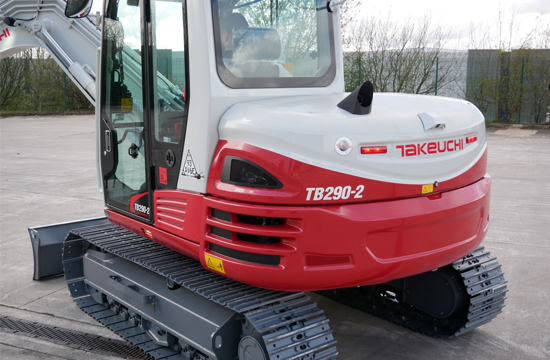

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

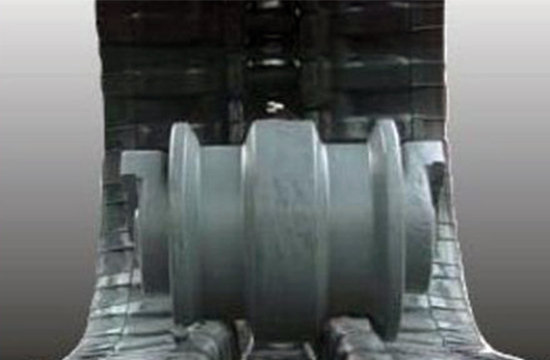

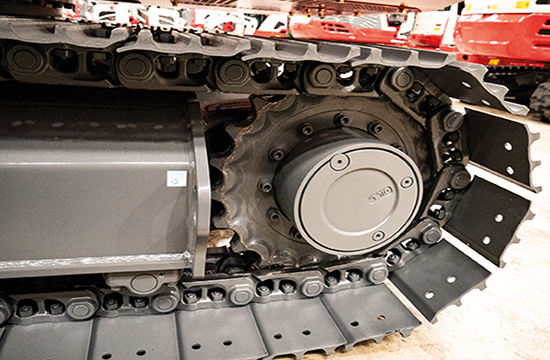

Triple Flange Track Rollers
Provide increased roller to rail contact improving track retention for smoother travel.
Shut-off Valves
1st and 2nd auxiliary isolation valves combined with an accumulator assisted hydraulic system, simplify attachment installation and limit the release of hydraulic oil.
Automatic Hydraulic Track Tensioning
Delivers precise track tension to maximise track longevity and limiting any track derails.

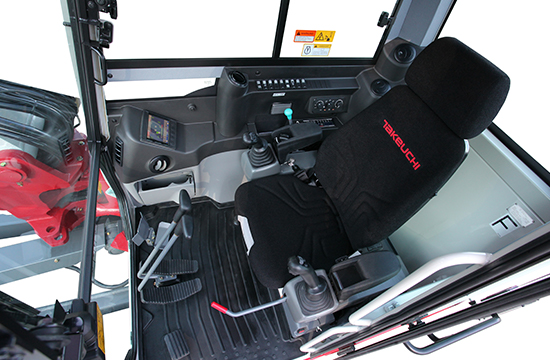

Spacious Styled Interior
Ensures operator comfort and provides a functional work area with a large multi-information display, automatic climate control, and ergonomic function switches.

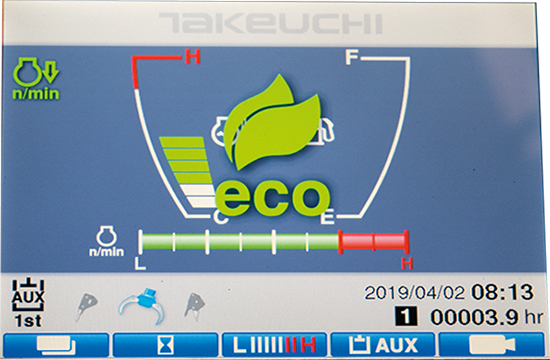

Interactive Multi-Informational Display
Easy to read in all lighting conditions, keeps the operator informed on the status of the machine.
All Day Comfort
All-round adjustable deluxe high back heated air suspension seat with retractable seat belt. MP3, Bluetooth and USB, socket heated cup holder and stereo radio.

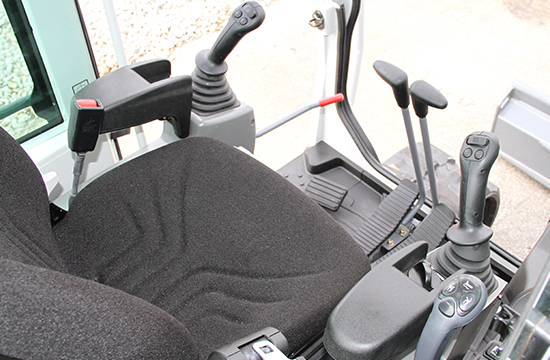

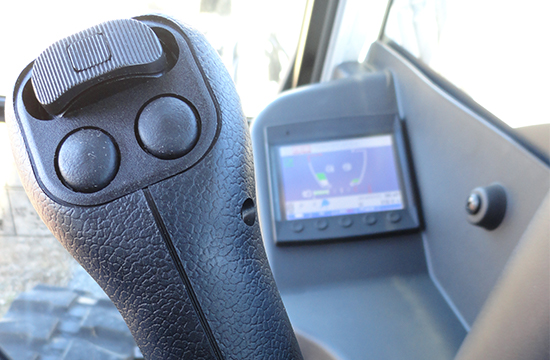

Pilot Joystick Controls
Delivers precise responsive controls with minimum effort.
Stay in Your Seat Interactive VDU control of auxiliary flow settings.

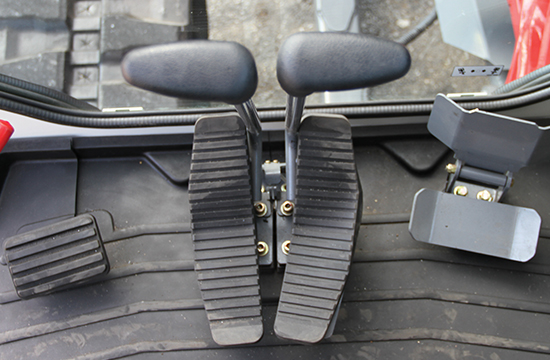

Large Travel Pedals
Fully support the operator’s feet for greater comfort and control while traveling, raised off-floor to reduce any dirt build-up that can impede travel pedals.

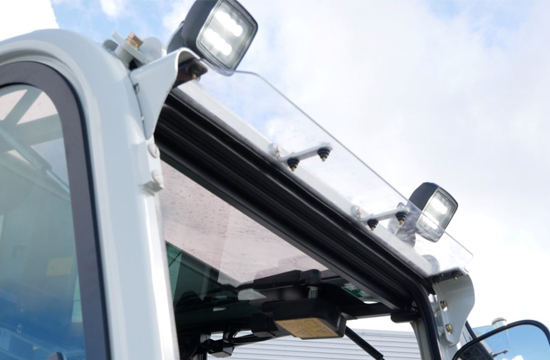

LED Lighting
4 forward facing wide-beam LED lamps on the roof and boom for enhanced visibility. Top Glass with Sunshade reduces glare and improves visibility of overhead obstacles when truck loading.

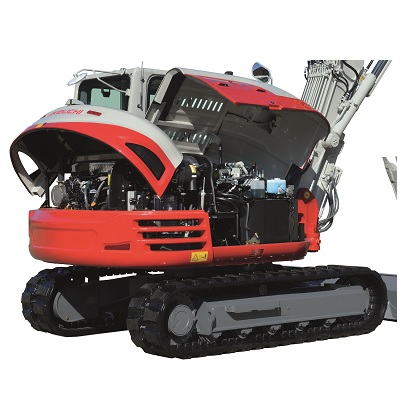

Maximum Access
270° wide service access via hinged panels, lockable for added on-site security. The quick drain oil and fuel reservoirs and 500 hour service intervals help reduce service times.

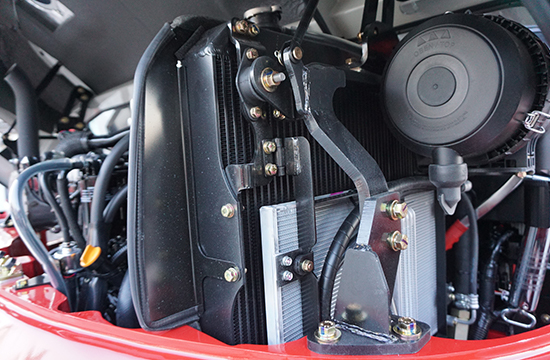

Heavy Duty Cooling System
Side by side radiator and hydraulic oil cooler features increased cooling capacity. Easy to inspect, clean and maintain.

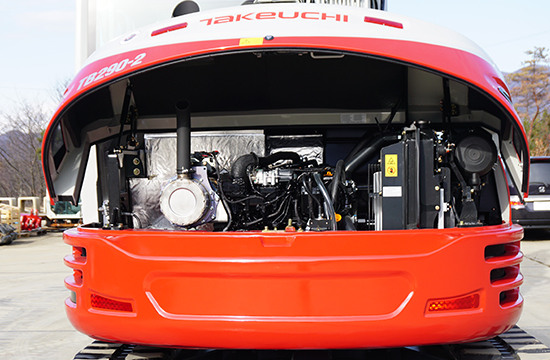

Rear Engine Access
Convenient access for daily checks and routine maintenance; the central cluster of key service points delivers faster servicing and less downtime.

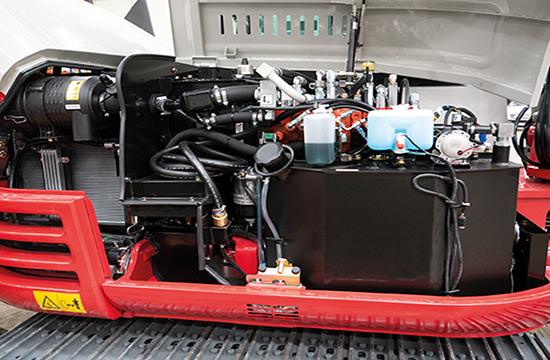

Hydraulic Access
Exceptional service access to the control valve, hydraulic lines and hydraulic tank.

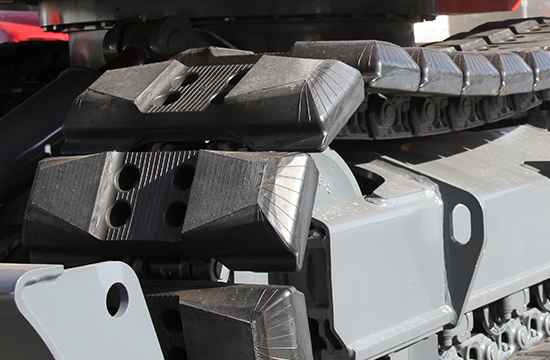

Track Retention
Automatic hydraulic track tensioning expanders improve track retention.
Maintenance-free triple flange sealed bearing rollers.

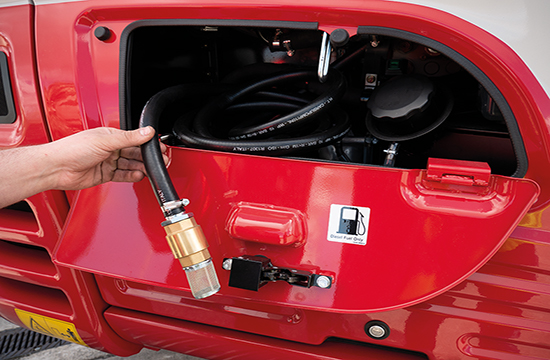

Refuelling Pump
Easy access electric refuelling pump with auto shut-off as standard, a remote gauge assists when refuelling and a self-bleed system for easy restart if out of fuel.
