TB320 Compact Excavator | 2 Tonne

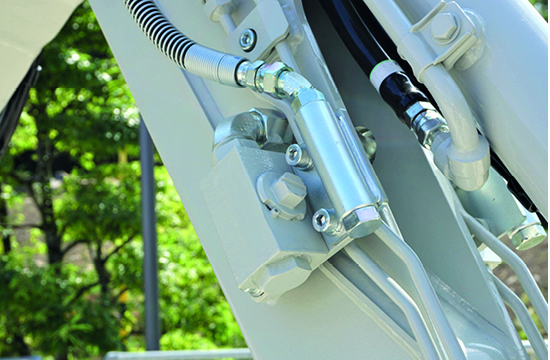

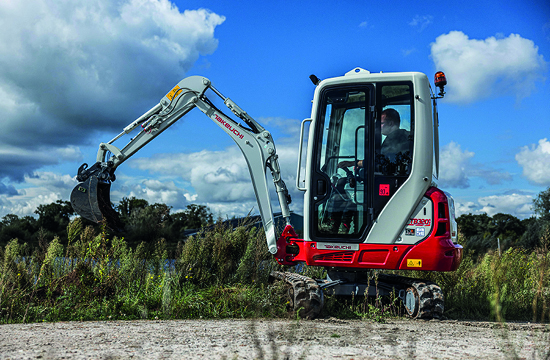

Available in both canopy and cab configurations with up to four service ports, the TB320 features many advancements in performance and technology that make it an extremely versatile machine.
With proportional controls on 1st and 2nd auxiliary ports, operators get smooth control and maximum hydraulic flow (40 l/min on service port 1) to run a wide range of hydraulically driven attachments. Adaptable for a variety of hydraulic attachments including mulchers, flails, augers, post knockers and tilt-rotators.

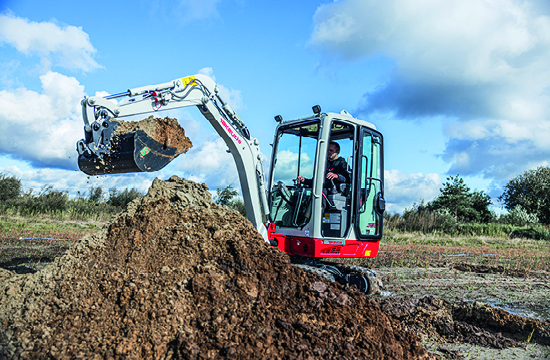

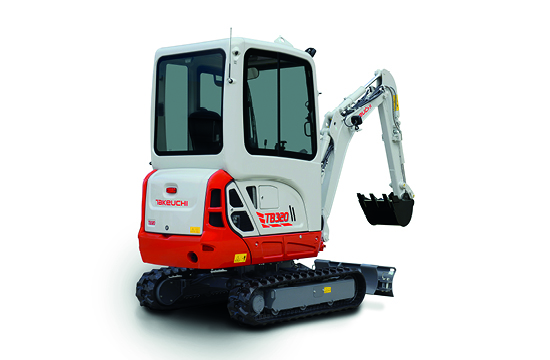

The compact design and dimensions help make the TB320 easy to transport and an ideal platform for working on sites with very limited accessibility. The ability to retract the undercarriage on the TB320 down to 980mm plays a huge role in the accessibility of the TB320 and its ability to manoeuvre easily around tight spaces. When the operator is ready to work, the undercarriage can be expanded to a width of 1370mm.
Product Details
Features
| OPERATOR STATION |
|---|
| New 3-Series with automotive styled interior |
| Cab or Canopy (ROPS / TOPS / OPG) |
| Cast Iron Wrap Around Protective Counterweight |
| Internal valve (cab) for hot/cold temperature selection |
| Multi-Informational Display |
| Multi Adjustable Seat |
| Fixed Arm Rests |
| Drinks Holder (cab only) |
| Cab with Lift-assist Front Window with Easy Remove and Stow Lower Front Glass. |
| Cab Mirror - Internal Rear View |
| Sky light (cab only) |
| MW-FM/ MP3 Radio/ USB/Bluetooth (cab only) |
| Foot rests |
| Foot Controlled Offset Boom |
| ELECTRICAL |
| Sealed Rocker Switches |
| Internal Power Socket 12V |
| External Roof Power Socket 12V (cab only) |
| Travel Alarm / Horn |
| Boom & Roof Working lights |
| TSS (Takeuchi Security System Immobiliser) |
| OPTIONAL – TFM (Takeuchi Fleet Management) Telematics |
| ENGINE |
| Yanmar 3TNV70 (EU Stage V) - Low Emission |
| Double Element Air Cleaner |
| Engine Preheat |
| Extended Life Coolant |
| Automatic Fuel Bleed System |
| Dual Fuel Filtration with Water Trap |
| Easy Access Centrally Located Service Check Points |
| Service Interval - 250 hours |
| HYDRAULICS |
| Pilot Operated Joystick Controls |
| Variable Displacement Piston Pumps |
| Cushioned Boom and Swing Cylinders |
| Top Mount Boom Cylinder |
| Automatic Slew Brake |
| Well Protected Internally Routed Hydraulic Hoses |
| Easy Access 1/2-Way Flow Selector Valve at Front of Machine |
| Steel Hydraulic Tank with Fluid Level Sight Gauge |
| High breakout force to deliver greater power and productivity on site |
| Proportional controlled aux 1 & 2 |
| UNDERCARRIAGE AND FRAME |
| Hydraulically Retractable Track Frame 980-1370mm |
| Load Sensing Two Speed Travel with Automatic Shift |
| Triple Flanged Track Rollers |
| Easy Tension Grease filled Track Adjusters |
| Adjustable width dozer blade with swing and pin extensions |
Specifications
| ENGINE | |
|---|---|
| Make | Yanmar |
| Model | 3TNV70 |
| Rated Output (kW)/RPM | 12.00 / 2500 |
| Maximum Torque (Nm) | 52.7 |
| Cylinders | 3 |
| Displacement (cc) | 854 |
| Electrical System | 12 V 45 amp |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cabin / Canopy (kg) | 2060 / 1930 |
| Width (mm) Cabin / Canopy | 1050 / 985 - 1370 |
| Width (mm) EXTENDED TRACKS | 1370 |
| Length (transport) (mm) | 3910 |
| Height (mm) Cabin / Canopy | 2375 / 2300 |
| Ground Clearance (mm) | 205 |
| Front Swing Radius (mm) | 1155 |
| Tail Swing Radius (mm) | 1110 |
| HYDRAULIC SYSTEM | |
| Set Pressure (bar) | 210 |
| Pump Type | Variable x 2 + Gear x 2 |
| 1st Aux Max Flow (l/min) | 40 |
| 1st Aux Max Pressure (bar) | 180 |
| 2nd Aux Max Flow (l/min) | 11.3 |
| 2nd Aux Max Pressure (bar) | 180 |
| 3rd Aux Max Flow (l/min) | |
| 3rd Pre-piped release pressure (bar) | 180 |
| 4th Aux Max Flow (l/min) OPTIONAL | 11.3 |
| 4th Aux Max Pressure (bar) OPTIONAL | 180 |
| HYDRAULIC BREAKER | |
| TKB72 Breaker (working weight kg) | |
| TKB72-S Breaker (working weight kg) | |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 93 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth (mm) | 2370 |
| Max Dump Height (mm) | 2725 |
| Max Reach at Ground Level (mm) | 4035 |
| Max Vertical Digging Depth (mm) | 2040 |
| Max Bucket Digging Force (kN) | 17 |
| Max Arm Digging Force (kN) | 9.1 |
| Travel Speed (km/h) | 2.4 /4.5 |
| DIMENSIONS & WEIGHT | |
| Operating Weight inclusive of bucket and fuel: Cab/Canopy (kg) | 2060 / 1930 |
| Overall Length (mm) | 3910 |
| Width with ext tracks cab/canopy (mm) | 1050 / 985 - 1370 |
| Height Cab/Canopy (mm) | 2375 / 2300 |
| Ground Clearance (mm) | 205 |
| Dozer Blade (W x H) (mm) | 980 - 1370 x 300 |
| Min Front Swing Radius (mm) | 1155 |
| Tail Swing Radius (mm) | 1110 |
| Boom Swing Angle (L/R) | 78°/49° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
Trust in Takeuchi for…

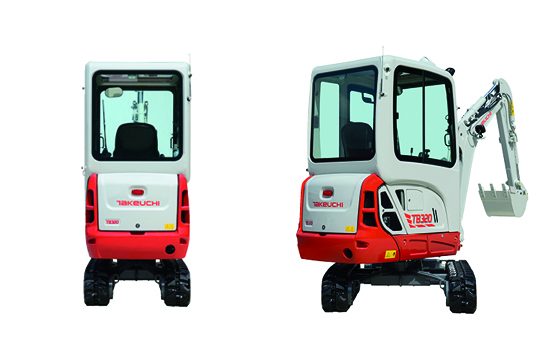

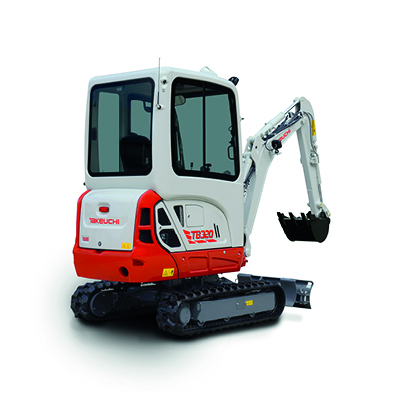

Efficient Design
The TB320 features conventional tail swing design which optimizes performance in digging, loading and lifting applications. The TB320 can be easily transported on a small trailer.
Best in Class Flow Rate
With excellent 40l/min flow rate this new 2-tonne is adaptable for a variety of power hungry hydraulic attachments.
Up to 4 Service Ports with Proportional Controls
Adaptable for a variety of hydraulic attachments including mulchers, flails, augers, post knockers and tilt-rotators.

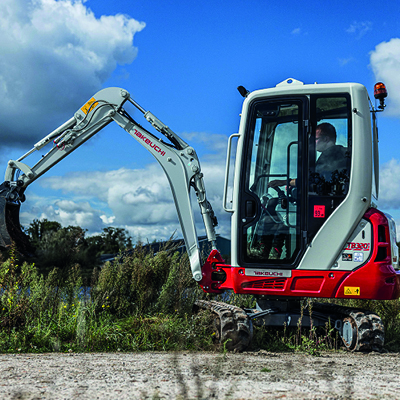

Powerful Excavator
Maximum engine power and breakout force deliver power performance on demand.
Auto 2 Speed Travel
Automatic two-speed travel shifts to high torque/low speed travel when turning, pushing, or ascending a hill or slope while shifting back to low torque/high speed when the load becomes lighter automatically.
Retractable Undercarriage
The TB320 track frame adjusts from 980 mm to 1370 mm allowing the machine to travel through limited access areas.

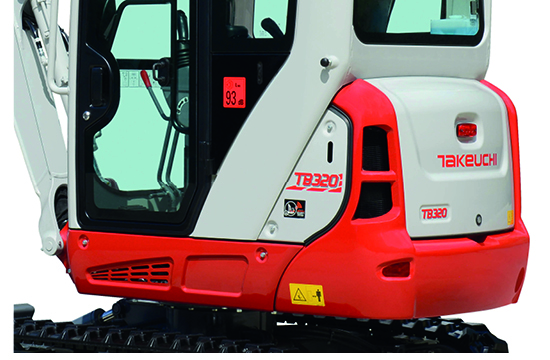

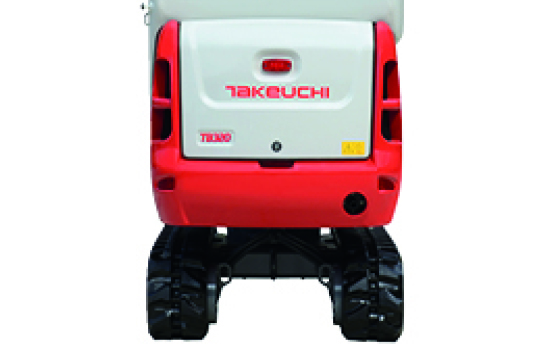

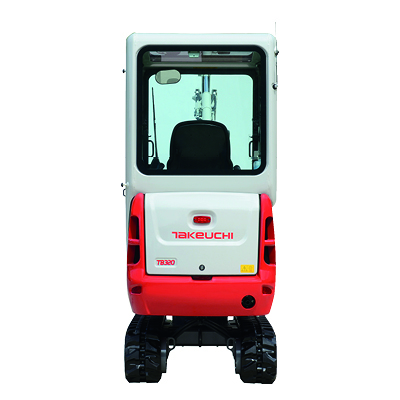

Heavy-Duty Counterweight
All steel wraparound protects key engine and hydraulic components from damage while delivering excellent stability .
Boom Cylinder Protection

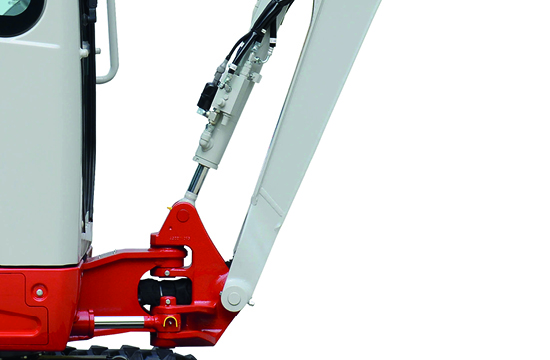

Top mounted boom cylinder and hydraulic lines are routed through the boom and arm delivering exceptional protection from job site hazards.
All Steel Construction
Greater strength and protection on the TB320 with all steel construction
Protective Structure
ROPS / TOPS / OPG compliant cab and canopy with integrated roof lift points
Triple Flange Track Rollers

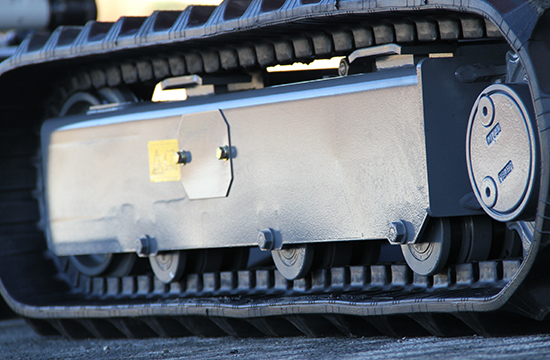

Improve track life by providing greater support of the track system, maintaining multiple contact points during operation reducing the risk of de-tracking.
Hydraulic Hose Protection
Exposed ground level hydraulic hoses are spiral steel wrapped for maximum protection.

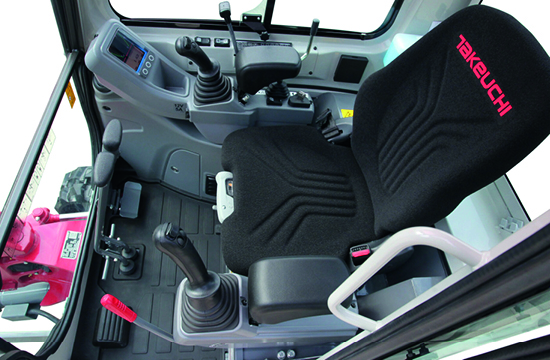

Comfort Operator Station
The TB320 operation station is well appointed with a fully adjustable suspension seat ensuring maximum operator comfort throughout the workday.

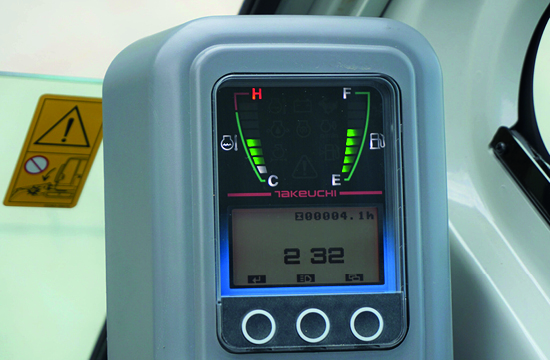

Multi Function Monitor
A multifunction color monitor allows the operator to view machine vitals and performance levels as they work.

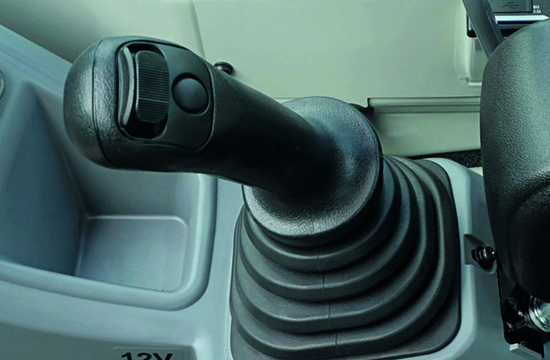

Ergonomic Controls
Pilot controls are low effort and precise.
Smooth Operation
Cushioned boom and swing cylinders combined with pilot controls help reduce shock and vibration adding to smoother operation.
Excellent Foot Room

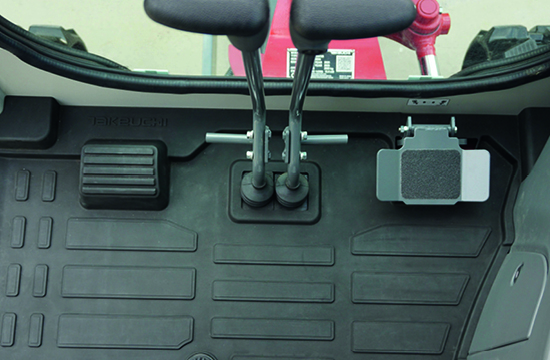

A spacious, open floor area provides more foot space and makes it easier to enter and exit the machine.
Onboard Power
External 12 volt power socket with additional roof socket on cab option.

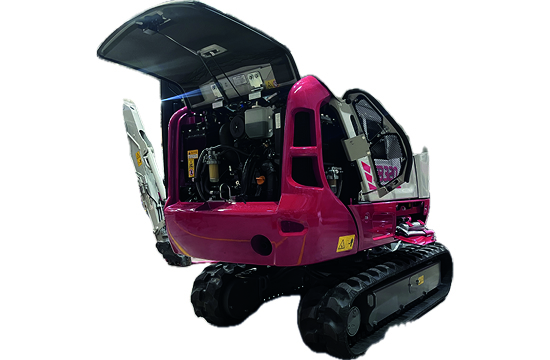

Maximum Service Access
Wide opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.

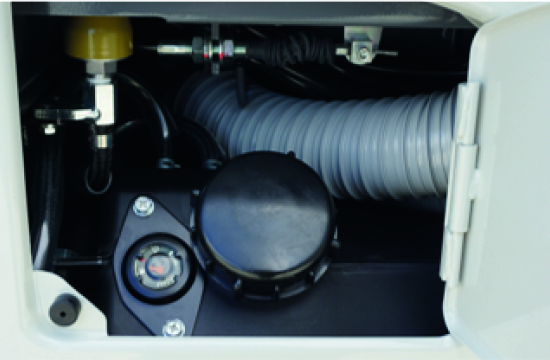

Lockable Fuel Fill
Lockable fuel fill is convenient and secure. A remote gauge is also provided for assistance when refueling. The system also uses a self bleeding system to provide easier restarts if the machine is run out of fuel.
Easy Servicing

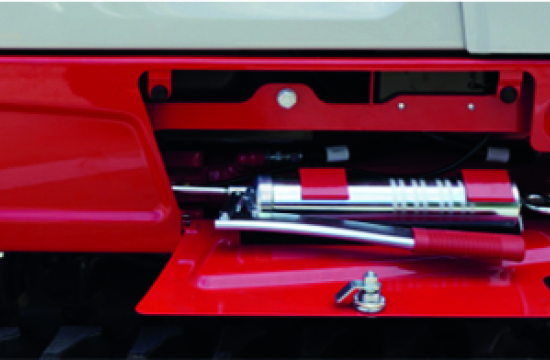

Grease filled easy service track adjusters. Lockable grease gun storage. Battery and electrical components under the seat

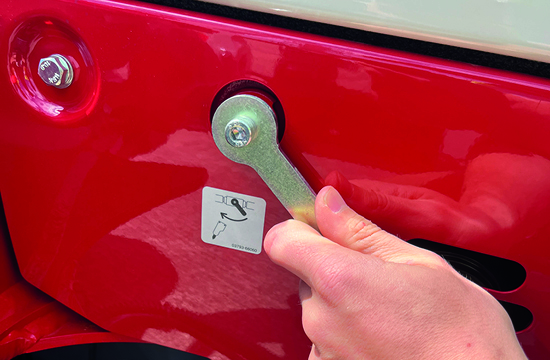

One – Two Way Hydraulics
Accessible 1-way and 2-way flow valve is accessed at the front of the machine for convenience.
Easy Adjust Dozer Width
A simple pin device, to match the TB320’s extendable track width.
High Capacity Cooling System
Combined heavy duty radiator and hydraulic cooler for optimum cooling.
