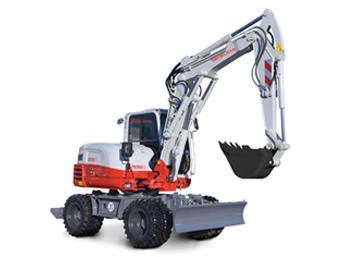

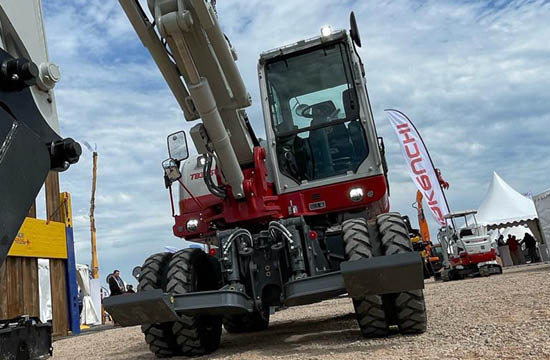

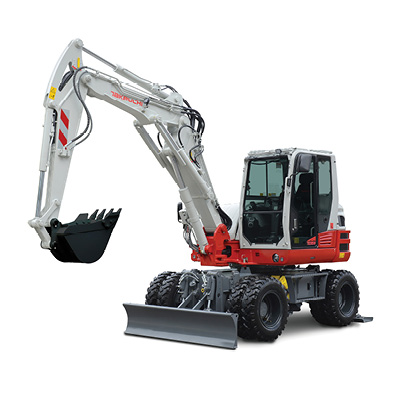

TB395W Wheeled Excavator | 10 Tonne
TB395W with 2-piece boom as standard, offers a highly versatile wheeled excavator that has on-road capabilities coupled with powerful excavating performance. Multiple hydraulic circuits and attachment presets enhance versatility, and the locking differentials allow the machine to perform in demanding applications. Offering excellent arm and bucket breakout power and travel speed up to 30kph.
The TB395W is a road legal vehicle when registered and taxed.
The TB395W now has 4-WHEEL STEER (4WS) with CRAB MODE and MUDGUARDS for enhanced on-road applications.
Product Details
Features
| ENGINE | |
|---|---|
| Stage V ready >19kW engine | |
| Common Rail Fuel System | |
| DOC+SCR Exhaust After Treatment | |
| Automatic Fuel Bleed System | |
| Double Element, Air Cleaner | |
| Power Mode | |
| Auto Deceleration | |
| Hydraulic Fan Drive for Radiator | |
| Fuel Supply Pump | |
| High Capacity Fuel Filters | |
| V-rib Belt with Automatic Tensioner | |
| ELECTRICAL | |
| 70" Retractable Seat belt | |
| 3 safety cameras - 270° visibility -rear, near and off-side | |
| Sealed Rocker Switches | |
| Hour Meter | |
| Work Lights - LED Boom Working Light and LED Front Working Light | |
| Horn | |
| Beacon Socket and Lamp Switch | |
| Travel Alarm (optional) | |
| Additional Boom Light (optional) | |
| LED Front and Rear Lights (optional) | |
| UNDERCARRIAGE AND FRAME | |
| Four Speed Travel | |
| Oscillating Front Axle | |
| High Torque Planetary Final Drive | |
| Protected HD Drive Shaft | |
| Wraparound Counterweight | |
| Dozer Blade | |
| Parking Brake | |
| Ram Lock | |
| Auto Cruise Mode | |
| Emergency Steering Function | |
| Outrigger (optional) | |
| Diff-Lock (optional) | |
| OPERATORS STATION | |
| Cab with Air Conditioner, Windshield Wiper and Washer, Skylight with Sunshade, Rain Guard, AM / FM / MP3 Radio, 12v/24v Power Outlet | |
| ROPS / OPG Level 1 Protection | |
| Tool Box | |
| Foot Rest | |
| Deluxe High Back Seat | |
| 20'' Retractable Seat Belt | |
| Steering Column, tiltable | |
| OPG Level 2 Roof Guard Kit (optional) | |
| OPG Level 2 Front Guard (optional) | |
| Rain Guard (optional) | |
| Air Suspension Seat w/ Heat (optional) | |
| HYDRAULIC & WORKING EQUIPMENT | |
| Variable Displacement, Open Center Hydraulics | |
| Hydraulic Joystick Controls | |
| Proportional Control for Service Port 1 | |
| Proportional Control for Service Port 2 | |
| Adjustable Auxiliary Flow for Service Port 1, 2, and 4 | |
| Hydraulic Selector Valve (1-way / 2-way) | |
| Pilot Accumulator | |
| Air Breather, Hydraulic Tank | |
| Quick Hitch for Service Port 3 (optional) | |
| Proportional Control for Service Port 4 (optional) | |
| Auto Pressure Release (optional) | |
| Auto Tank (optional) | |
| 2-Piece Variable Angle Boom with 2 Adjust Cylinders | |
| Cushioned Boom and Arm Cylinders | |
| Boom Holding Valve with Lift Alarm | |
| Safety Boom Swing Lock | |
| Pattern Change Valve (ISO or G) 2-way Lever (optional) | |
| Adjust Cylinder Holding Valve (optional) | |
| Arm Holding Valve (optional) | |
| Independent Mono Boom Swing (optional) | |
Specifications
| ENGINE | |
|---|---|
| Make | Deutz |
| Model | TCD3.6 L4 |
| Rated Output (kW) /RPM | 85/2200 |
| Cylinders | 4 |
| Displacement (cc) | 3621 |
| Electrical System | 24v 90a |
| DIMENSIONS & WEIGHT | |
| Weight 2 piece with blade Incl Fuel, Hitch, Bucket (kg) | 10225 |
| Operating Weight 2 Piece & Outriggers Incl Fuel, Hitch, Bucket (kg) | 10625 |
| Overall Length 2 piece with blade / with outriggers | 6555 |
| Length travel position (mm) | 5580 |
| Width (mm) | 2300 |
| Height (mm) with roof guard | 3055 |
| Ground Clearance (mm) | 320 |
| Dozer Blade (W x H) (mm) | 2300 x 500 |
| HYDRAULIC SYSTEM | |
| Main System Pressure (bar) | 275 |
| Pump Type | Variable piston x 2 + gear pump X 3 + HST |
| 1st Aux Max Flow (l/min) | 120 |
| 1st Aux Max Pressure (bar) | 275 |
| 2nd Aux Max Flow (l/min) | 55 |
| 2nd Aux Flow Pressure (bar) | 210 |
| Standard Aux | 1st 2nd & 3rd |
| Optional Aux | 4th |
| 3rd Aux | Used for Hitch |
| SWING SYSTEM | |
| Slew Speed (rpm) | 9.7 |
| Slew Motor | Constant Volume Piston |
| Slew Brake | Wet Friction Plate |
| UNDERCARRIAGE | |

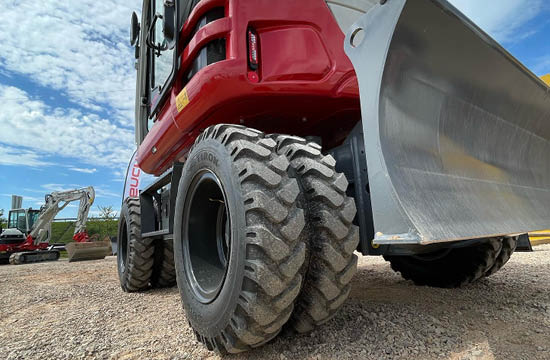

| Tyre Size (PR) TWIN TYRES | 8.25 -20 - 14 |
| Drive Line | All Wheel Drive |
| Travel Brake | Disc & Brake Lock |
| Steering | Front Setting System |
| Wheelbase | 2200 |
| Tyre Pressure (psi) | 94 |
| Maximum Gradeability | 35° |
| CAPACITIES | |
| Hydraulic System (l) | 205 |
| Fuel Tank (l) | 162 |
| Engine Lubrication (l) | 10 |
| Cooling System (l) | 24 |
| AdBlue Tank (l) | 10 |
| HEALTH AND SAFETY | |
| Noise Level Sound Power Level (LwA) | 99 dB |
| Vibration Hand Arm / Body m/sec² | ≤2.5 / ≤0.5 |
| OPTIONS | |
| Hydraulic Breaker | TKB402-S, TKB802-S, |
| Hitch | Hydraulic Quick Hitch. |
Operating Dimensions
| OPERATING PARAMETERS | |
|---|---|
| Max Digging Depth 2-piece (mm) | 4095 |
| Max Dump Height 2-piece (mm) | 6240 |
| Max Reach at Ground Level 2-piece (mm) | 7450 |
| Max Vertical Digging Depth 2-piece (mm) | 3525 |
| Max Bucket Digging Force (kN) | 58.9 |
| Max Arm Digging Force (kN) | 39.7 |
| Max Travel Speed (km/h) | 29.1 |
| DIMENSIONS & WEIGHT | |
| Weight 2 piece with blade Incl Fuel, Hitch, Bucket (kg) | 10225 |
| Operating Weight 2 Piece & Outriggers Incl Fuel, Hitch, Bucket (kg) | 10625 |
| Overall Length 2 piece with blade / with outriggers | 6555 |
| On Road Length travel posture 2-piece with blade / with outrigger (mm) | 5580 |
| Width (mm) | 2380 |
| Height (mm) | 3055 |
| Ground Clearance (mm) | 320 |
| Dozer Blade (W x H) (mm) | 2300 x 500 |
| Boom Swing Angle (L/R) | 68° / 59° |
Takeuchi Fleet Management (TFM)
TFM is installed on all Takeuchi machines above 4-tonnes, TFM is optional on machines under 4-tonnes.
TFM is a remote Telematics monitoring tool that utilises machine data to better manage your fleet, and to keep costs down by being alerted to machine performance and health.
TFM remotely connects users to their Takeuchi equipment by providing alerts and machine information including location, utilisation, performance, and maintenance data to give insights into where and how equipment is being operated.
Takeuchi is providing TFM free of charge during the initial warranty period. For continued Telematics support for your Takeuchi machines, customers can extend the TFM cover via the local Takeuchi dealership.
TSS - Takeuchi Security System
Takeuchi security system as standard.
- Only programmed keys for start-up
- Un-programmed keys alert operator via VDU and alarm
- Includes 1 red master and 3 black user keys (programme up to 13 user keys)
Trust in Takeuchi for…

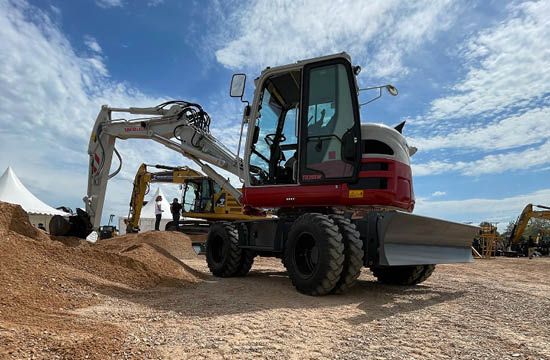

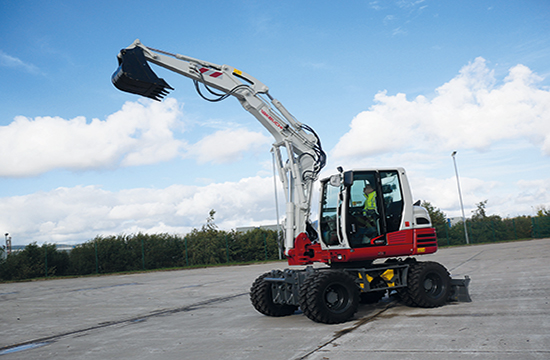

Road Ready Takeuchi
30km/hr travel speed and auto cruise facility, the TB395W is ideal for on-road highways applications. A powerful 4 dual-wheel drive machine. The added height of TB395W gives excellent all-round operator visibility on-road and on-site with in-built reversing camera as standard.
Turbo Power Performance Powered by the latest Stage V ready 85kW Deutz engine with SCR technology, delivering maximum breakout force and compliant emission control.
Safety On-Site and On-Road
Highly efficient oil immersed hydraulic brakes. Selectable switch from manual to auto axle lock when excavating.
A strong and proven drivetrain incorporating switchable diff-lock to deal with rough terrain.

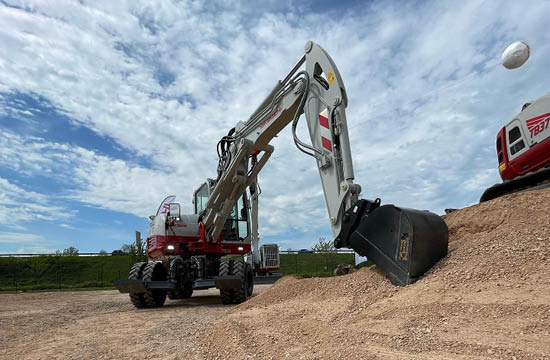

Maximum Working Ranges
With an advanced two-piece boom the operator can navigate around site utilities far easier.
Operators get greater versatility when operating attachments.
The 2-piece can retract the boom, to move closer to machine centre – enhancing lift performance and outlifting a mono boom.

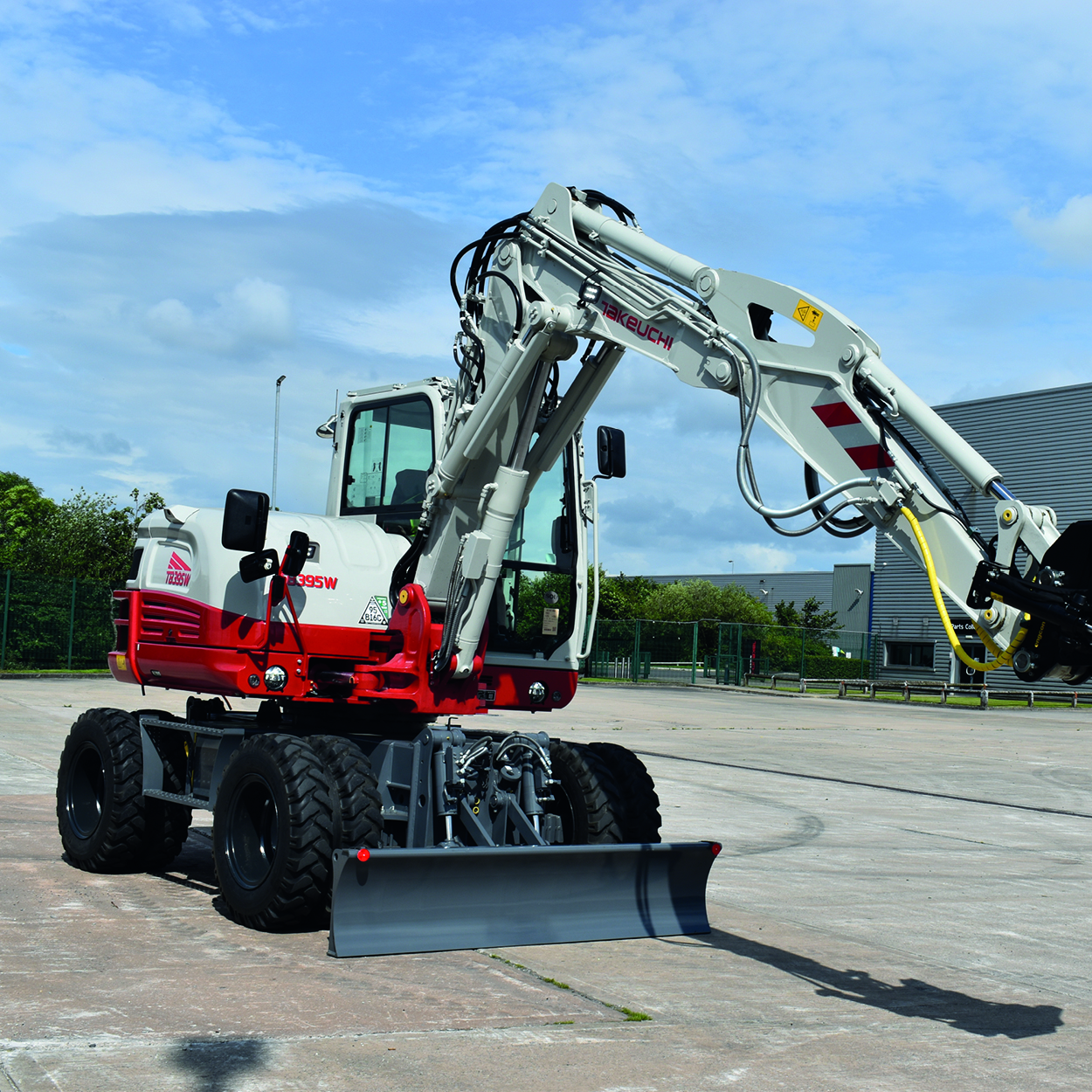

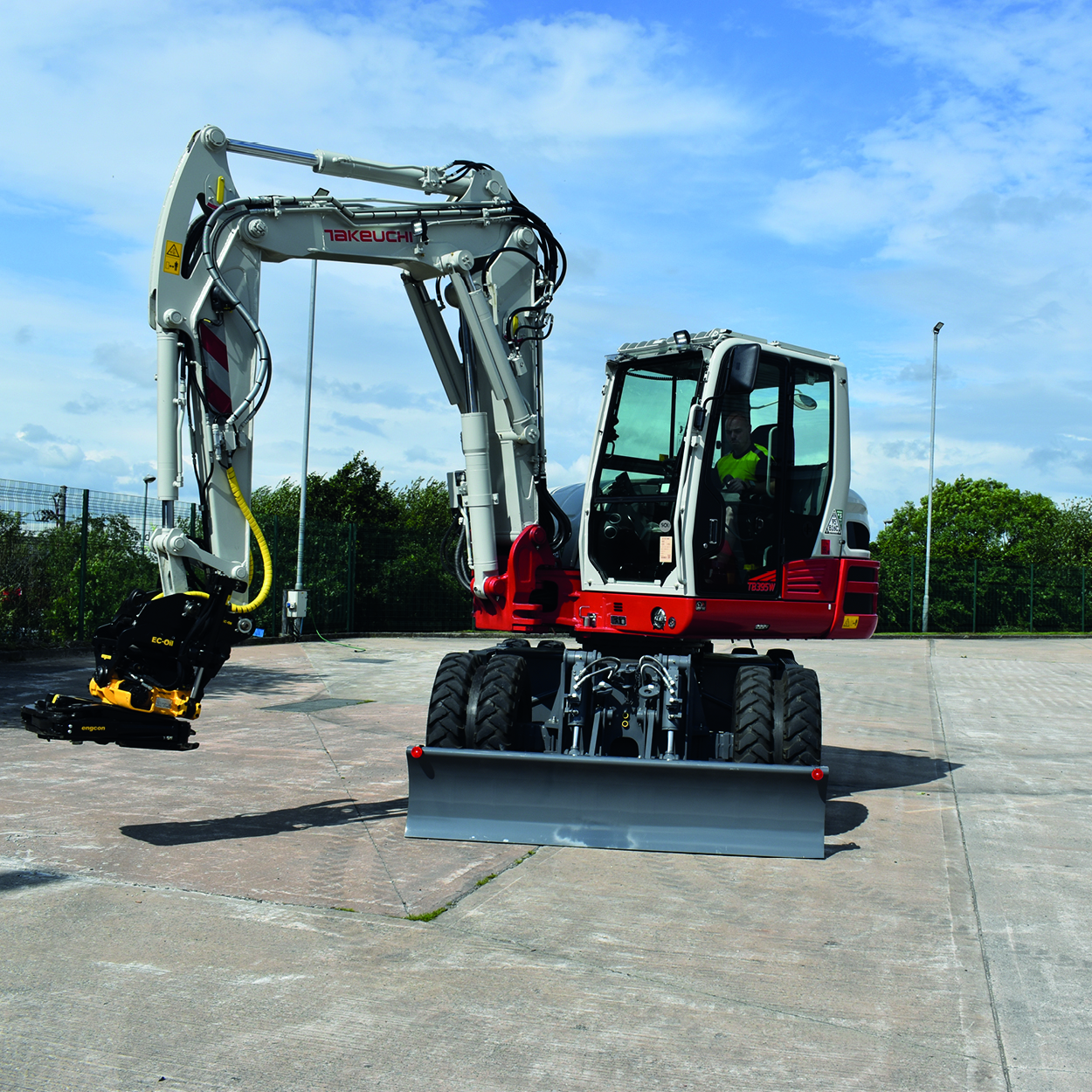

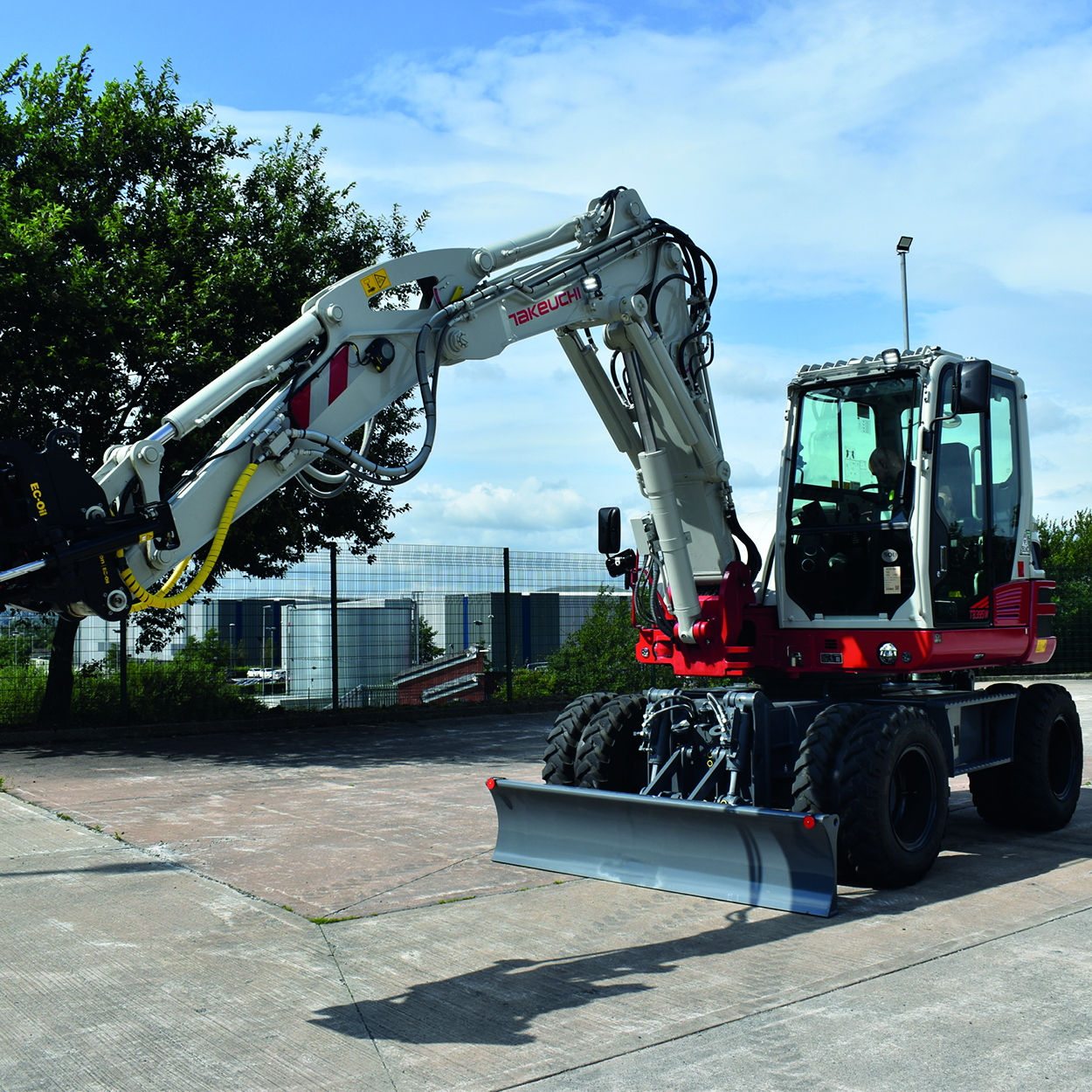

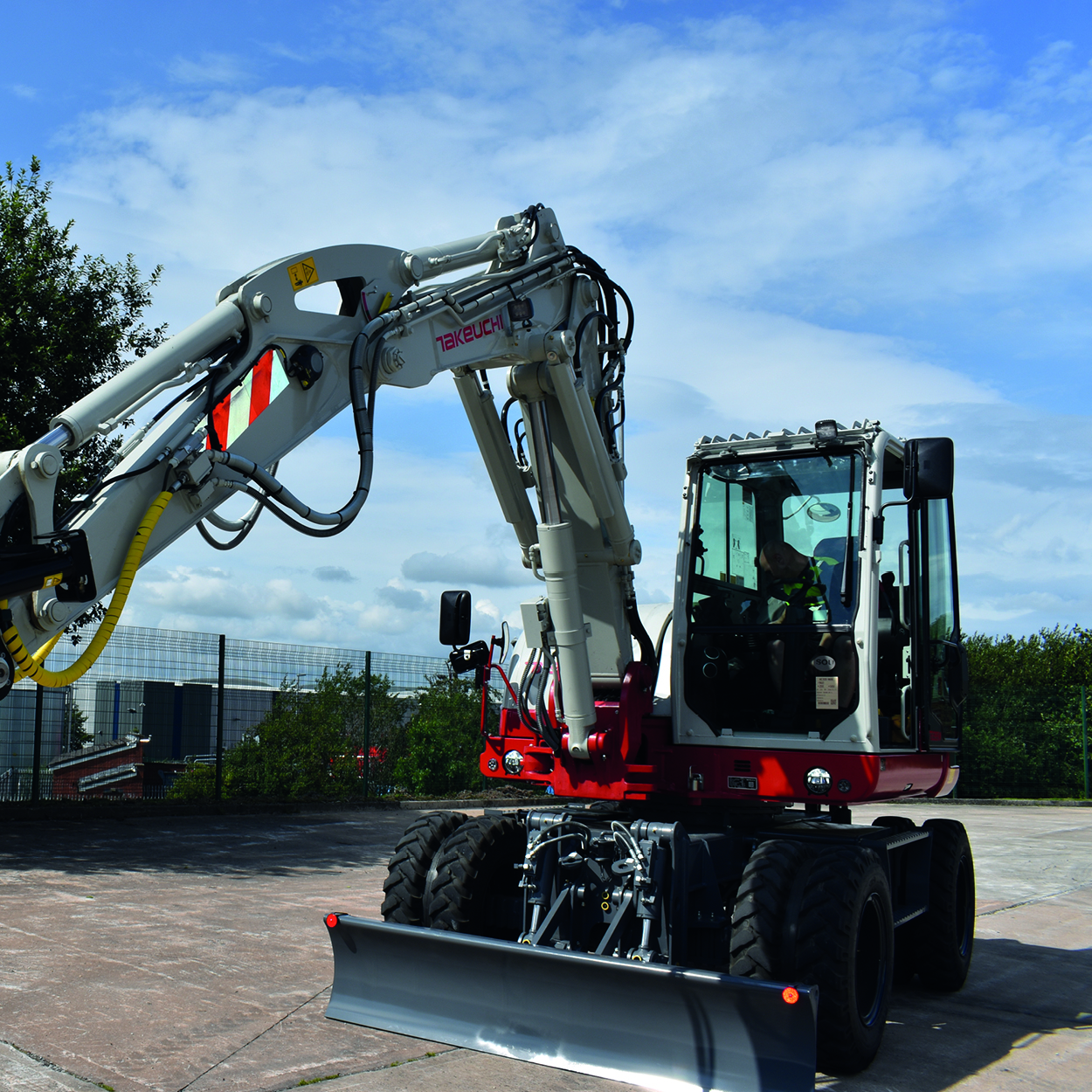

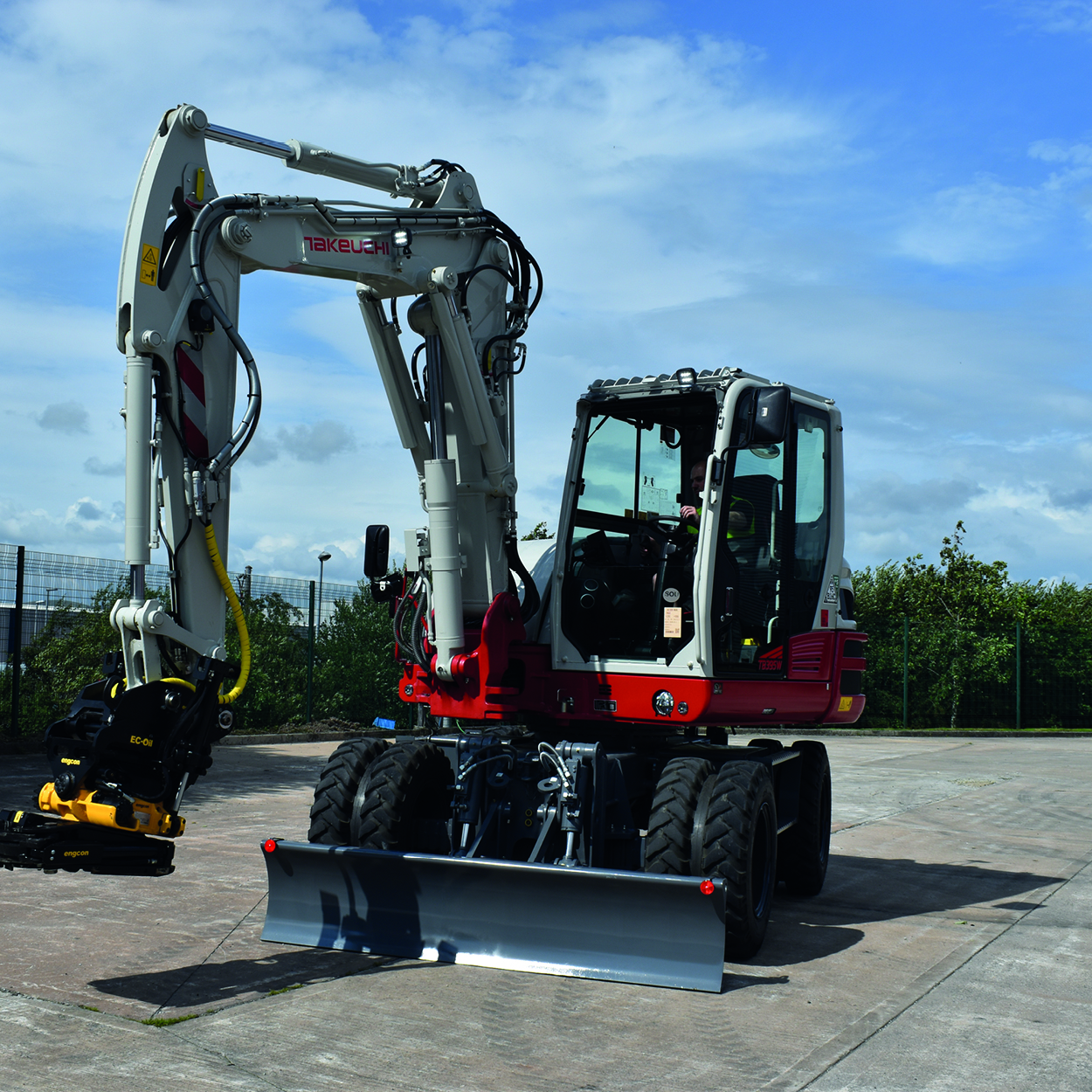

Heavy Duty Dozer
A larger than average parallel lift dozer blade as standard provides added excavating stability.

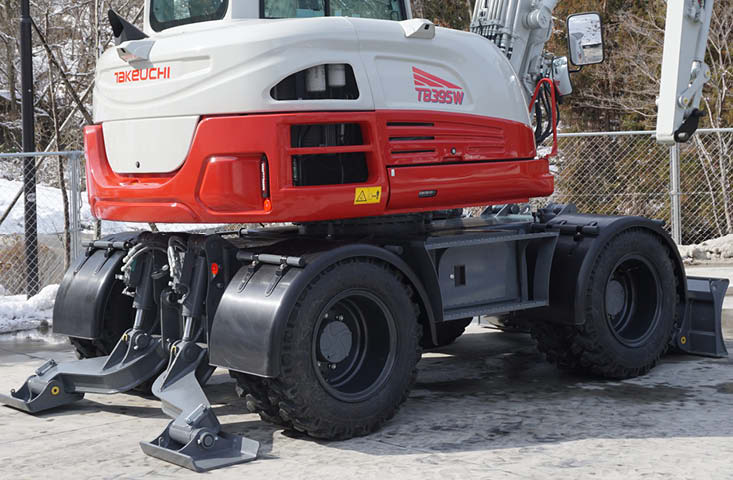

Independent Out-Riggers
Factory fitted option. Outriggers with independent control are ideal when working on uneven terrain.
Options
The switch-controlled drive options include: 4WS / 4WS-Crab and 2WS providing enhanced versatility,
improved traction and manoeuvrability where space is limited.

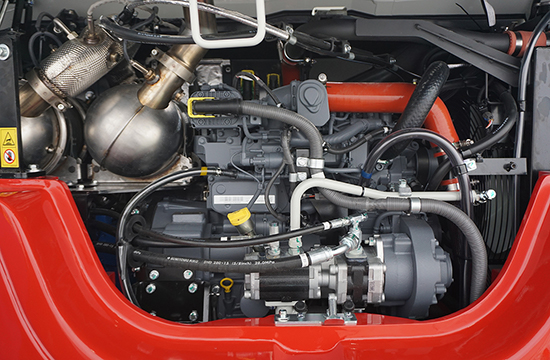

Rear Engine Access
The new Stage V engine with DPF, SCR and AdBlue emission after-treatment.
500 hour service intervals.
Ground level easy access

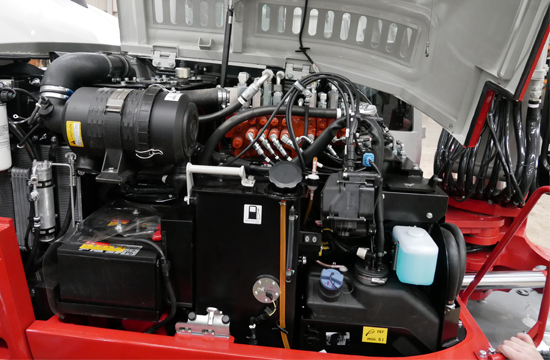

Access points for the battery and regular service points, side cover allows easy access to the control valve, fuel tank, DEF tank, and battery.
A dedicated compartment for the electric refuelling pump and AdBlue filler point.

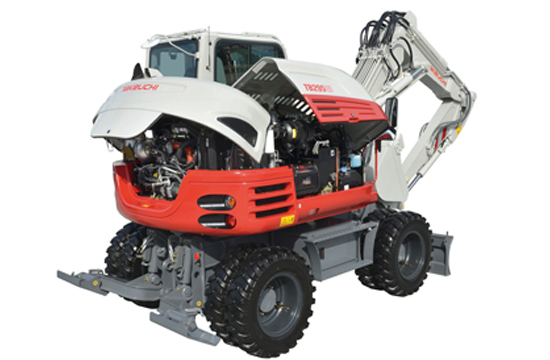

Maximum Access
Maximum 270° serviceability: with hinged service access panels, key-locked for added on-site security. The quick drain oil and fuel reservoirs help reduce machine downtime.

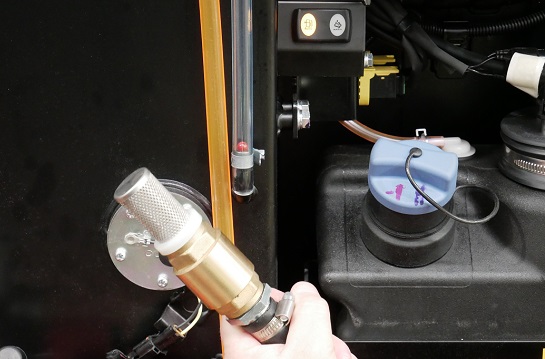

Lockable Fuel Fill
Electric refuelling pump with automatic shut-off and extended hose. AdBlue tank with audible filling alarm.
The fuel self-bleed system with high capacity fuel filters provides for easy restarts if the machine runs out of fuel.

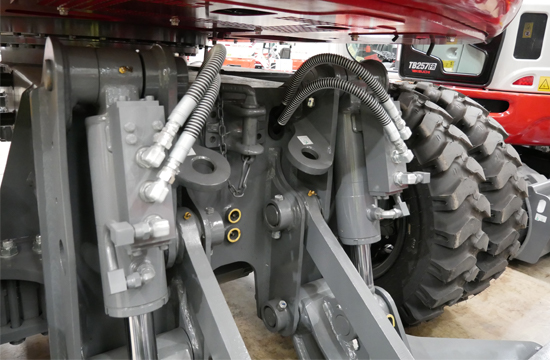

Undercarriage Versatility
The undercarriage has universal outrigger and blade mounting points at both ends of a TB395W, provides for a bespoke undercarriage setup.
Service Features

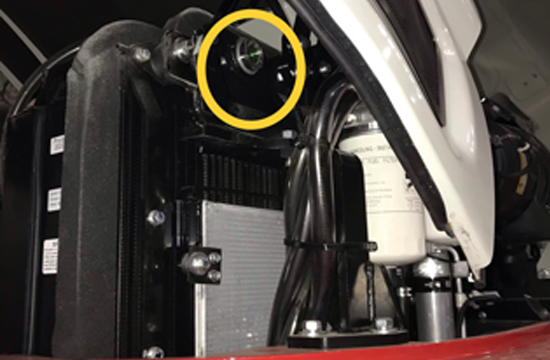

Hydraulic controlled reversible cooling fan to clean the cooling system of dust and air-bourne contaminants, programmable for timed convenience.
Large toolbox under the cab supplied with grease gun and operator tool bag.

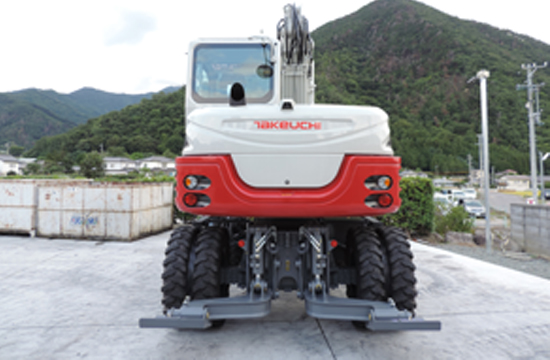

Wrap Around Counterweight
Protects key engine and hydraulic components from damage while delivering excellent stability.

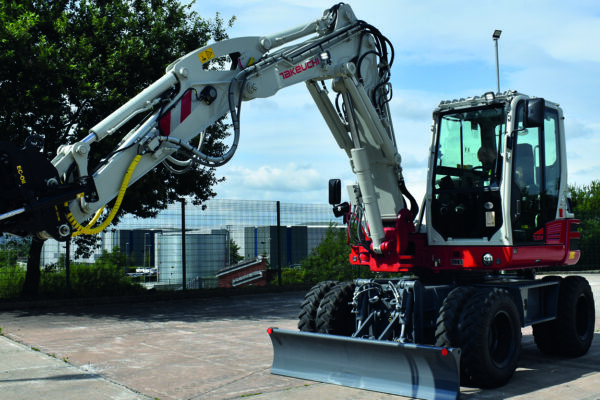

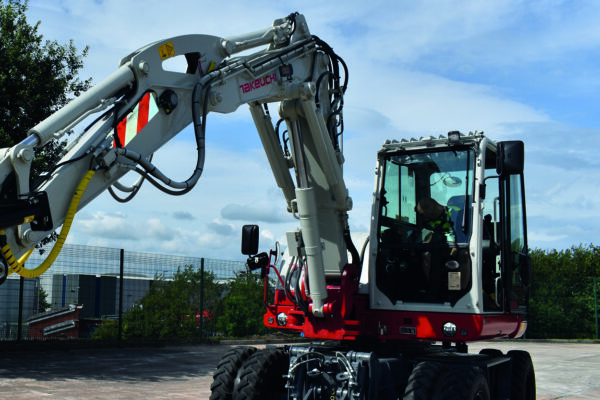

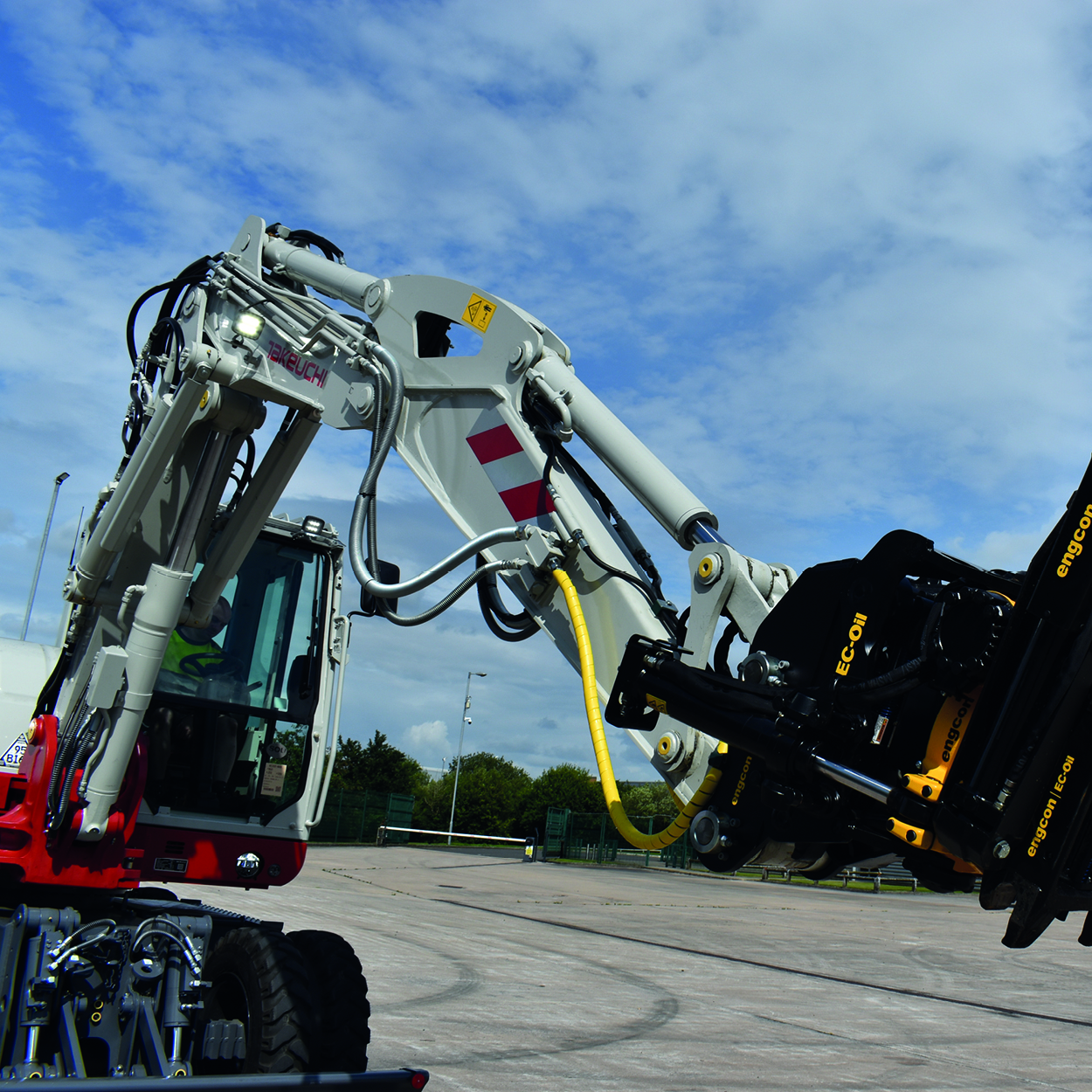

2-piece boom
With twin boom rams well positioned to reduce the risk of damage when loading trucks helps deliver smoother more responsive arm control.
On Site Safety
Fitted with hose burst check valves, lift overload alarm and switched beacon socket, along with auto reverse camera and LED workzone lighting.

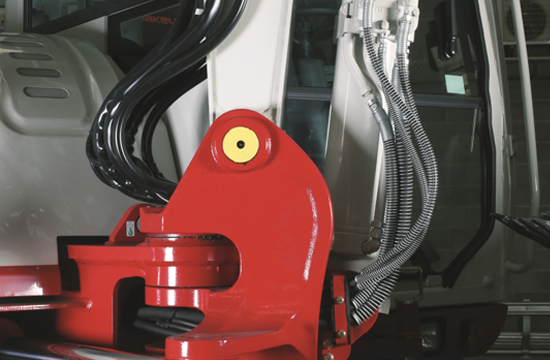

Robust for Site
The heavy-duty king post, pins and bushes are built robust for the most demanding working environments.

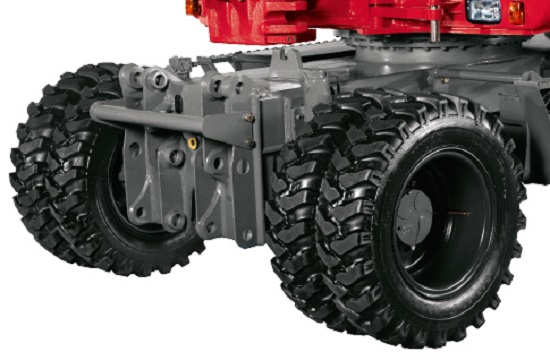

Robust Axle Undercarriage
Highly efficient oil immersed hydraulic brakes with locking foot brake pedal, switch activated parking brake and selectable switch from manual to auto axle lock when digging. Onboard wheel chocs and lockable steel tool box.

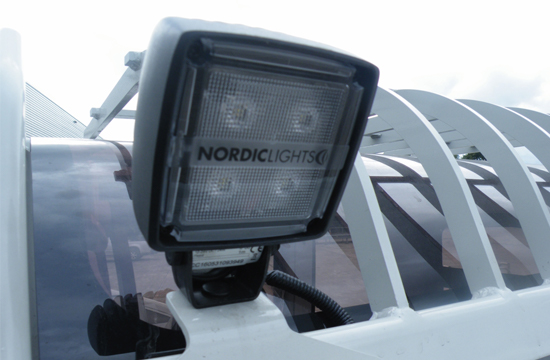

LED Workzone Lighting – all-around LED workzone lights come as standard.
3 x 270° Cameras – 270° visibility with additional high-definition cameras on the rear, near and off-side
complete with full colour and variable split screen display.
Optional Roof Guard – provides an added level of protection, OPG Level II.

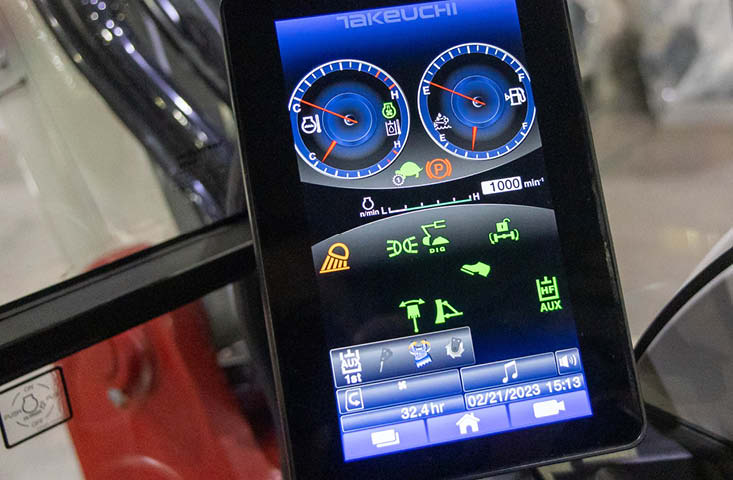

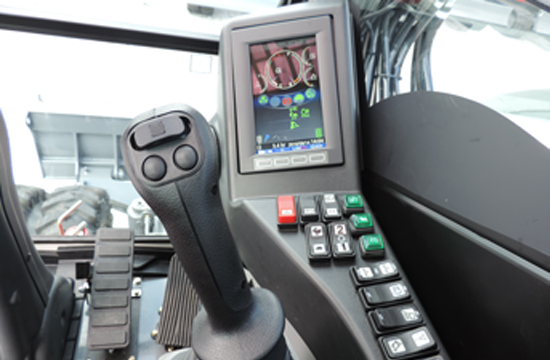

LCD Multi Information Display
Full colour easy to read in all light conditions. Combines split screen for both operating functions and auto activating reversing camera.
Comfortable Drive

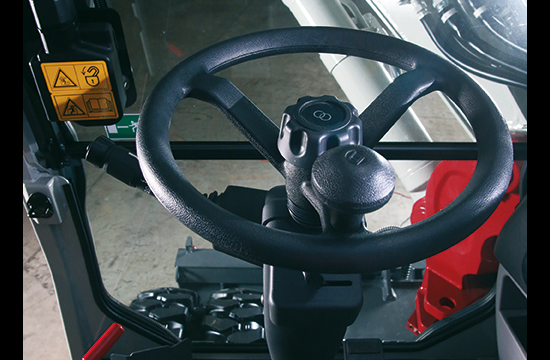

An easy to drive wheeled option packed with on-road features and a strong focus on operator comfort for all sizes of operator; both height and rake adjustable steering, height adjustable arm rests,

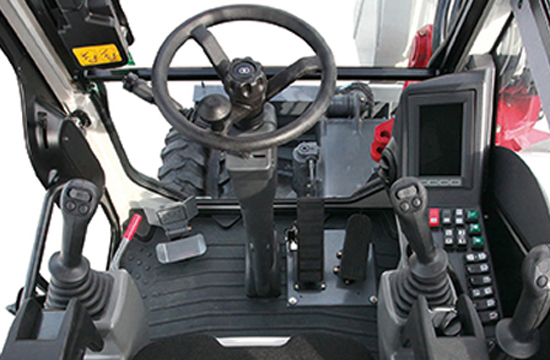

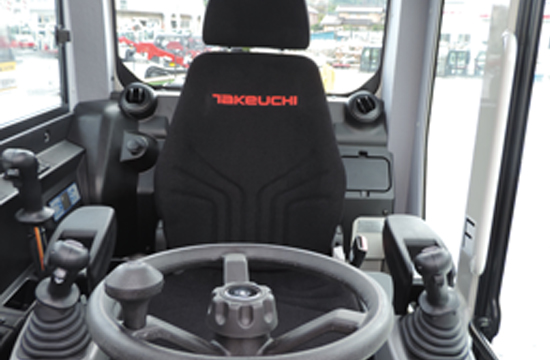

Maximum All-Day Comfort
Superior cab access and cushioned isolated cab with 10-way adjustable high back heated air suspension seat provides for the operator’s optimal position for all day driving and excavating.
Styled Interior
Features intuitive controls, digital air-con climate control as standard along with retractable front window, wiper, rain-guard and sunshade 12V, 24V and USB power sockets, Along with stereo radio with Bluetooth and a heated cup holder. When travelling the TB395W has enhanced in-cab sound suppression.
Optimal Operation

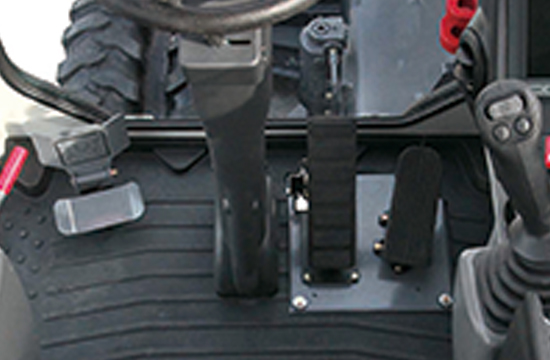

Foot throttle and brake are positioned to optimize ease of use and operator comfort. Selectable hand or foot engine speed control to suit operator preference.
Electronic Auto-Cruise Control enables the operator to set and adjust travel speed in both low and high range via the rocker switch or through the optional multi-function grip. Delivering consistent travel speed when simultaneously operating; ideal for attachments.
Maximum On-site Visibility
Rear fisheye mirror, blind-side mirrors, auto rear view colour camera, roof window with retractable blind provide all round visibility. All-round LED lights provide maximum enhanced safety on-site and on-road
